Pick-Up Coil Resistance

Note pick-up coil terminal identification on the distributor. See Fig 1. Using ohmmeter, measure resistance between specified terminals. See PICK-UP COIL RESISTANCE SPECIFICATIONS table. Replace distributor assembly if pick-up coil resistance is not within specification.

PICK-UP COIL RESISTANCE SPECIFICATIONS

Application

⁽²⁾ Pick-Up Coil Terminals

⁽¹⁾ Ohms

Land Cruiser

G1 & G-

185-275

Land Cruiser

G2 & G-

185-275

Land Cruiser

NE & G-

185-275

⁽¹⁾	Specification is with pick-up coil temperature of 14-122°F (-10-50°C).

⁽²⁾	For proper testing and terminal identification, see BASIC DIAGNOSITC PROCEDURES article

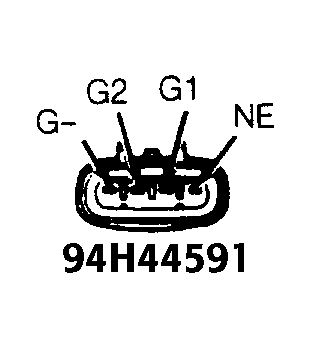

Fig 1: Identifying Pick-Up Coil Terminals
