Pulsed Secondary Air Injection System: Notes

NOTE: Pulsed Secondary Air Injection (PAIR) system may be referred to as the Air Suction (AS) system. PAIR system has different operating parameters depending on application. See Fig 1-34.

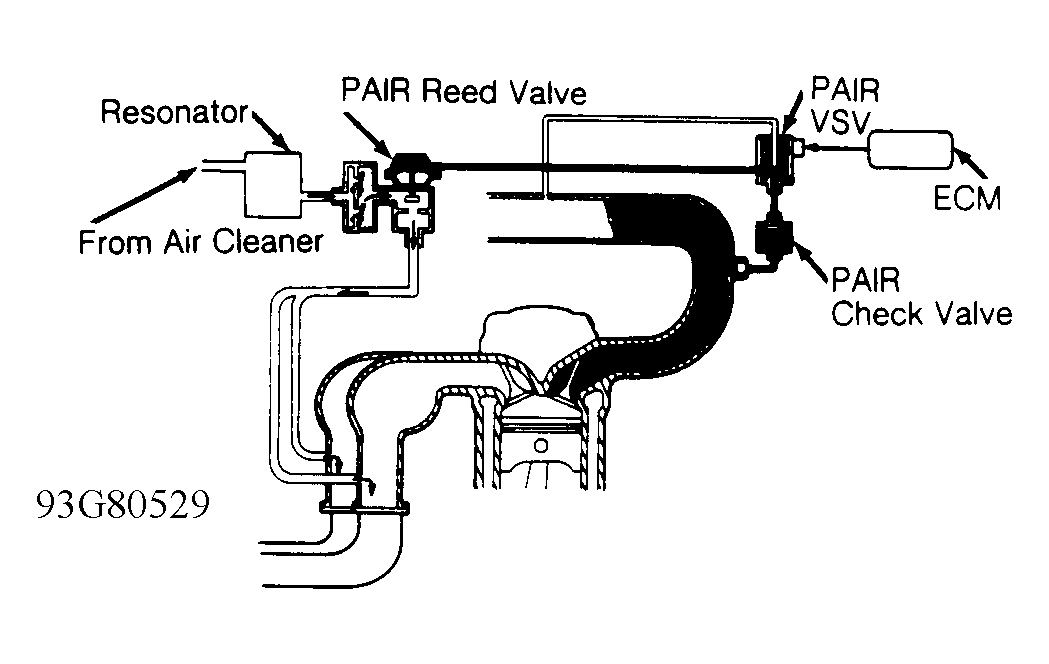

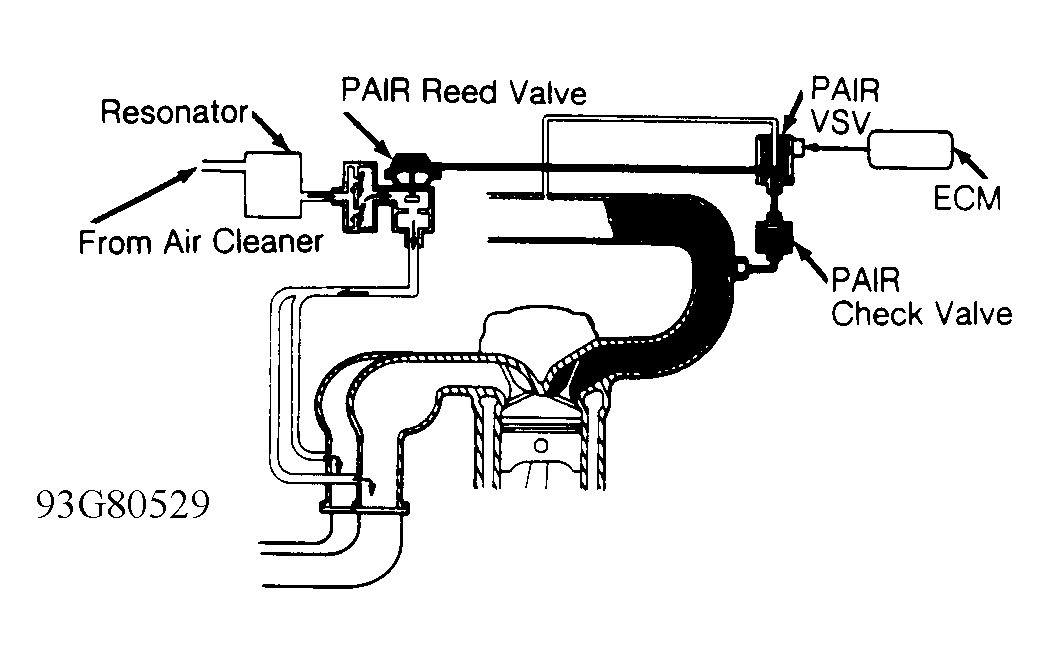

Fig 1: PAIR System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

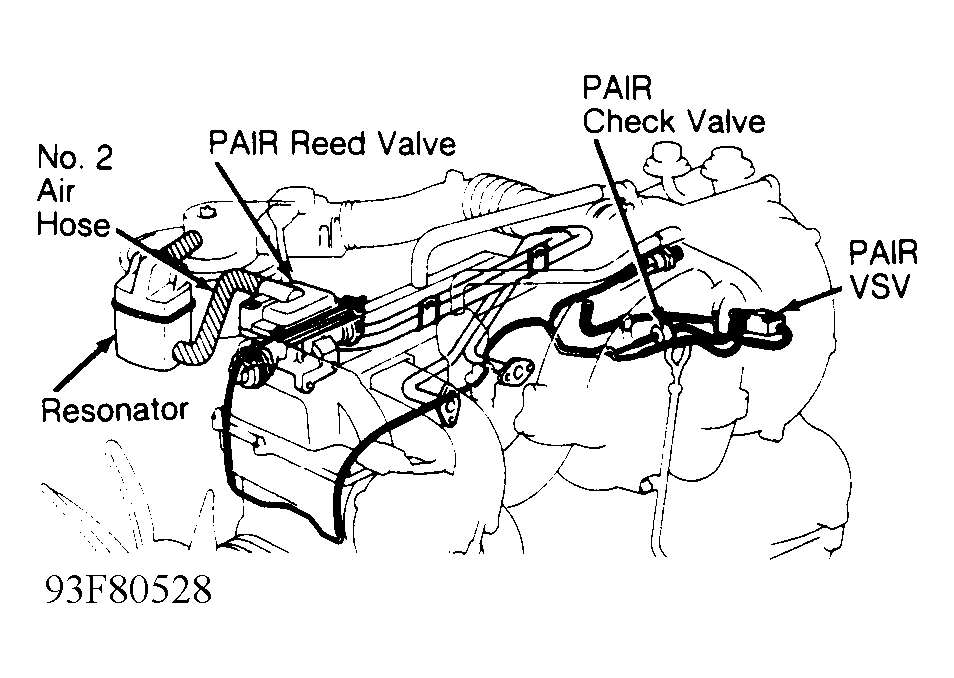

Fig 2: PAIR System Components

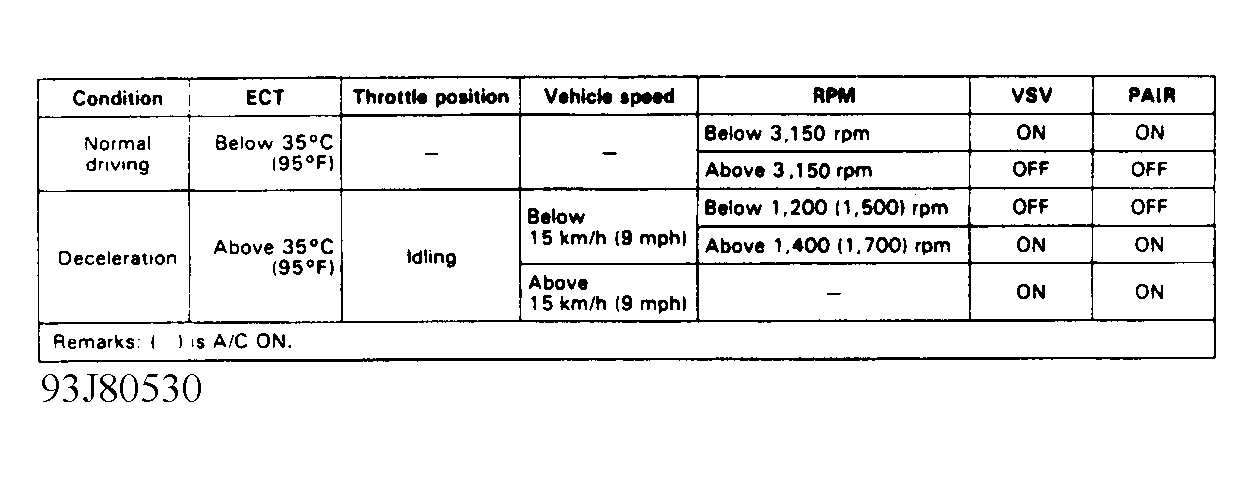

Fig 3: PAIR System Operating Parameters
