DTC 31 - Vacuum Sensor Signal

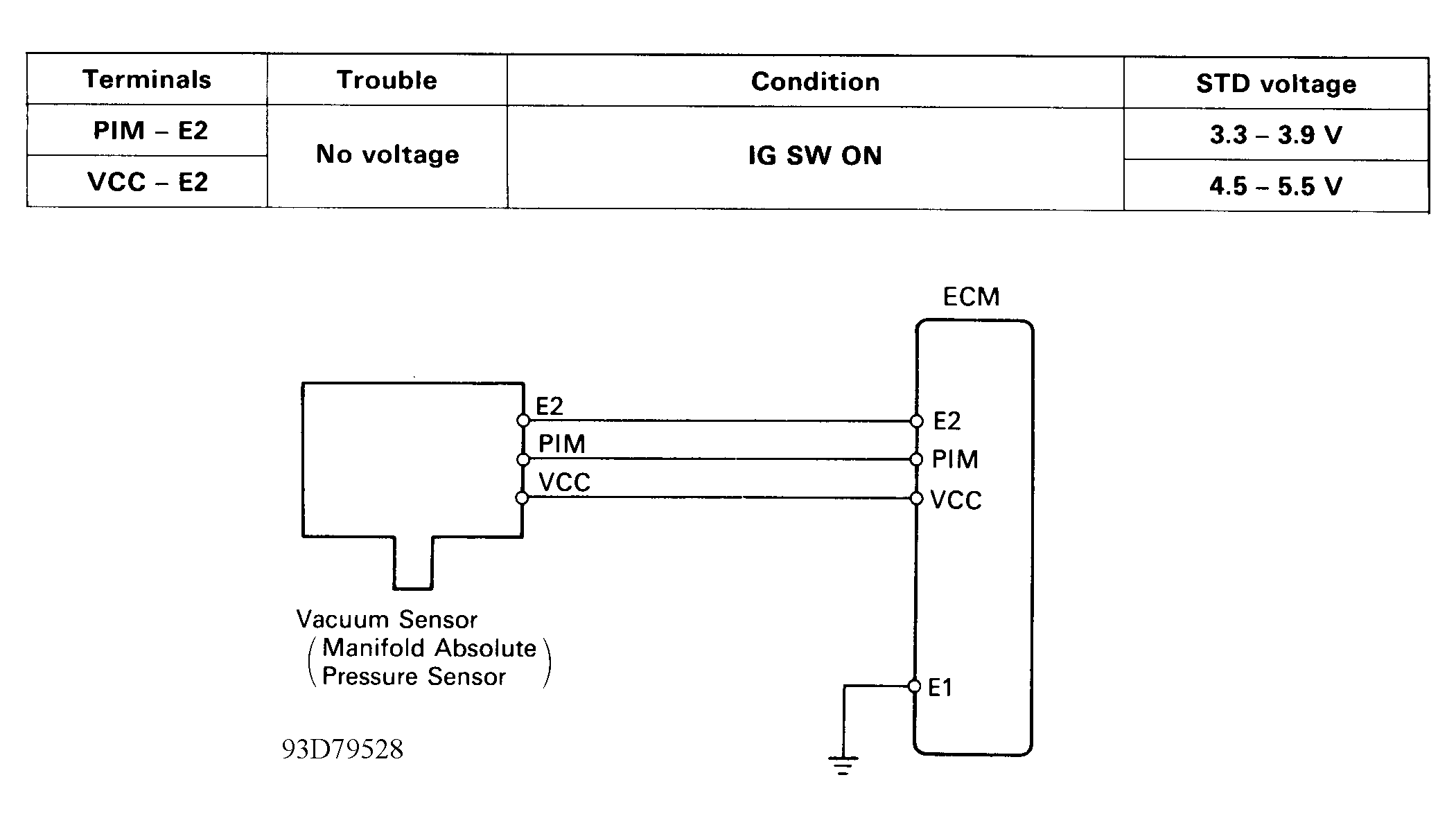

Fig 1: DTC 31 - Schematic
G93D79528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

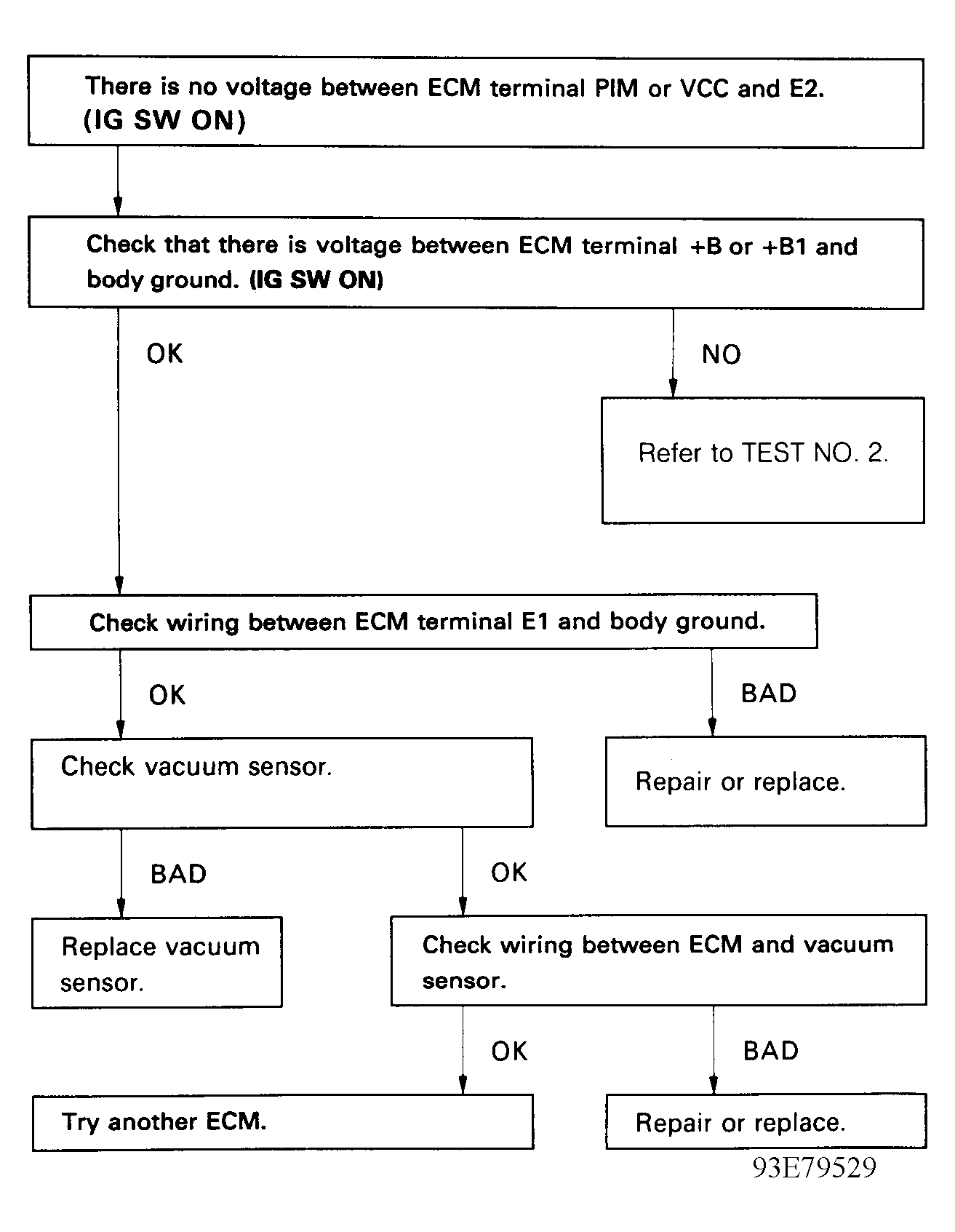

Fig 2: DTC 31 - Diagnostic Flowchart
G93E79529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
