ECM Power Source Check

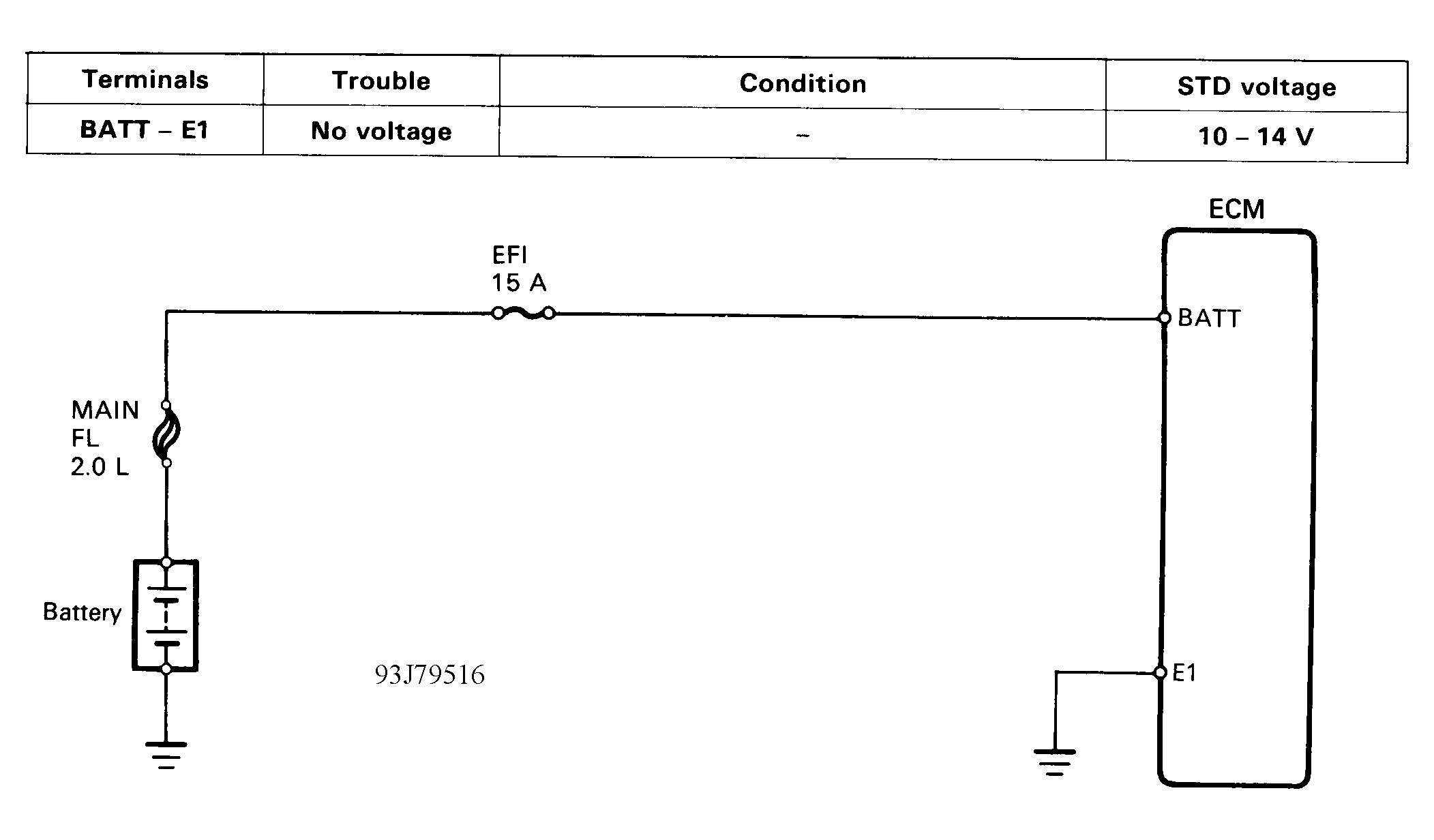

Fig 1: ECM Power Source Check - Schematic
G93J79516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

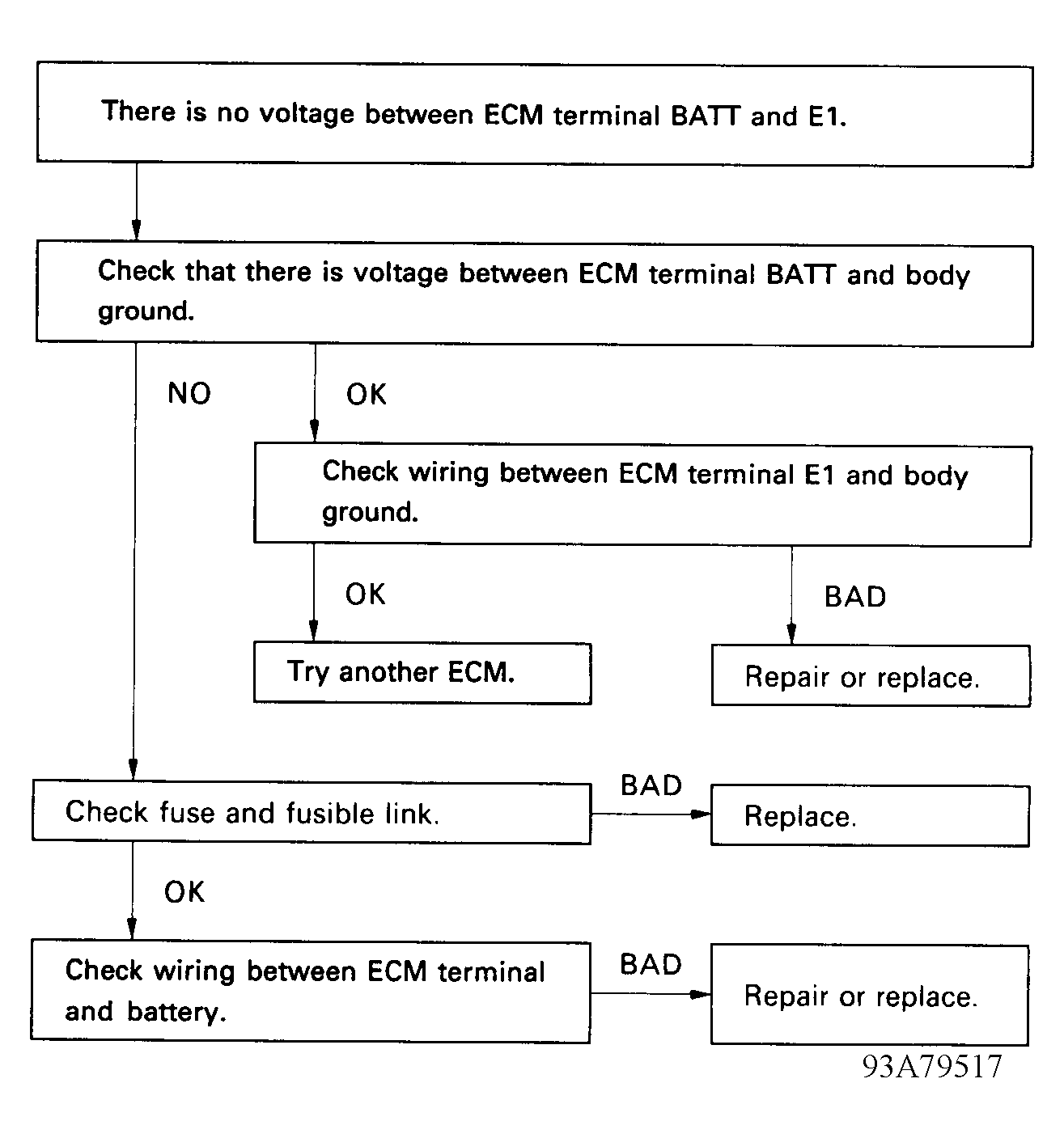

Fig 2: ECM Power Source Check - Diagnostic Flowchart
G93A79517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
