Pulsed Secondary Air Injection System: Notes

NOTE: Pulsed Secondary Air Injection (PAIR) system may be referred to as the Air Suction (AS) system. PAIR system has different operating parameters depending on application. See Fig 2-51.

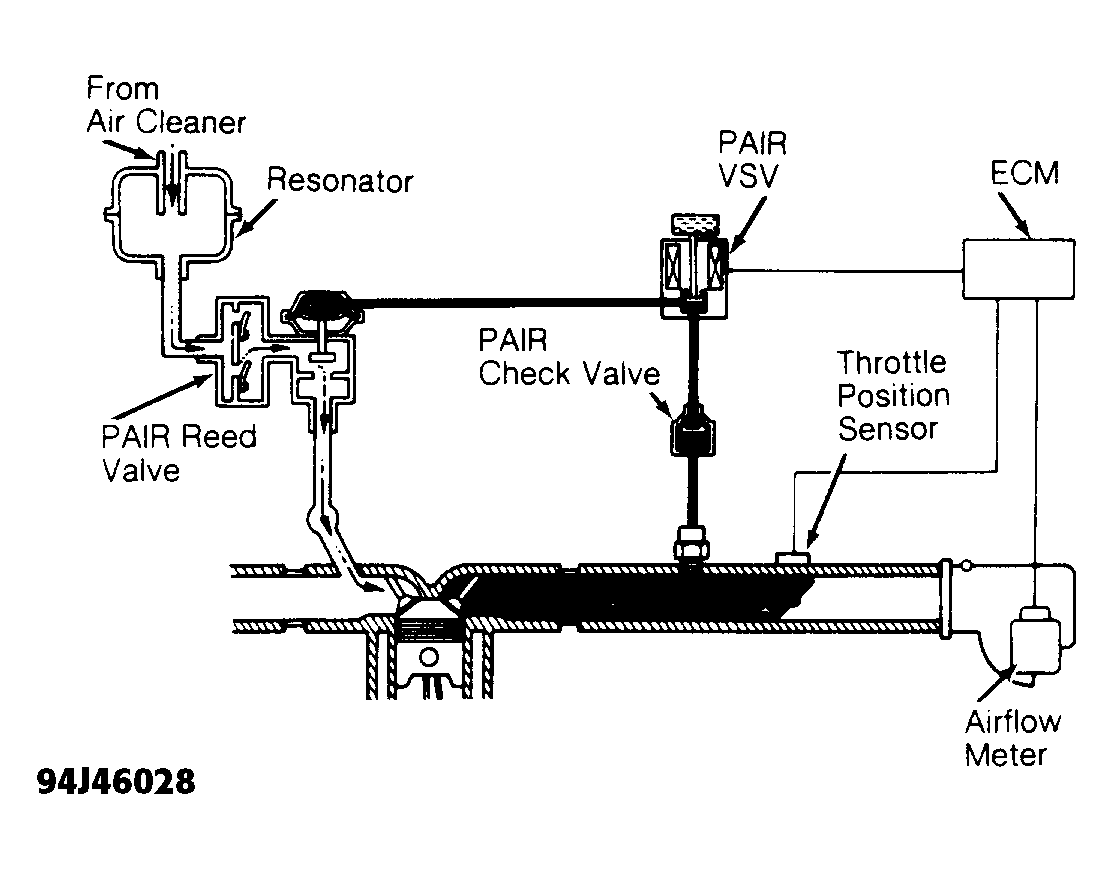

Fig 1: PAIR System Diagram (2.4L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

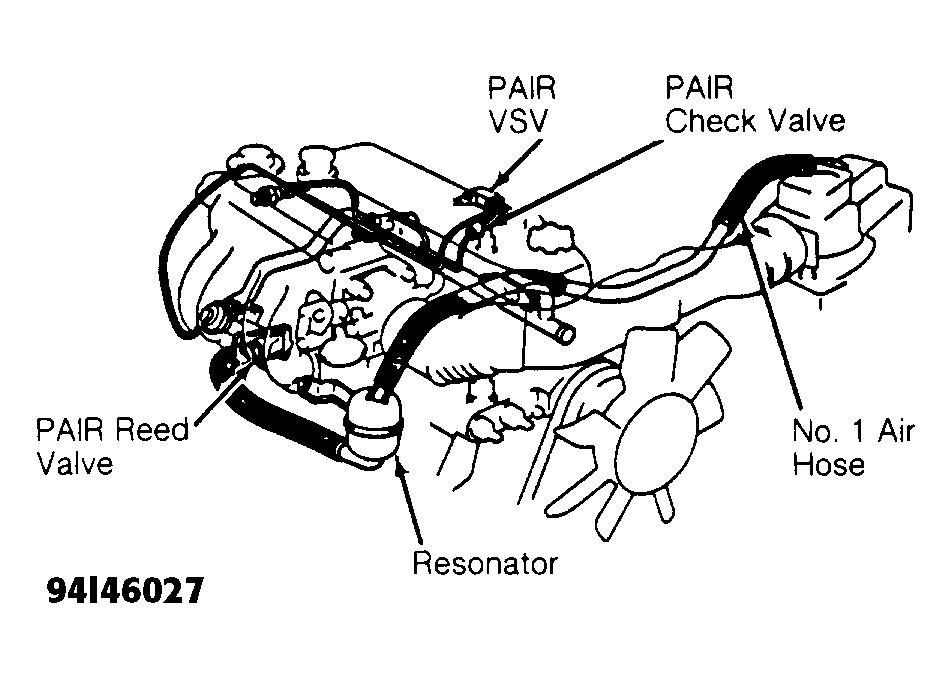

Fig 2: PAIR System Components (2.4L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

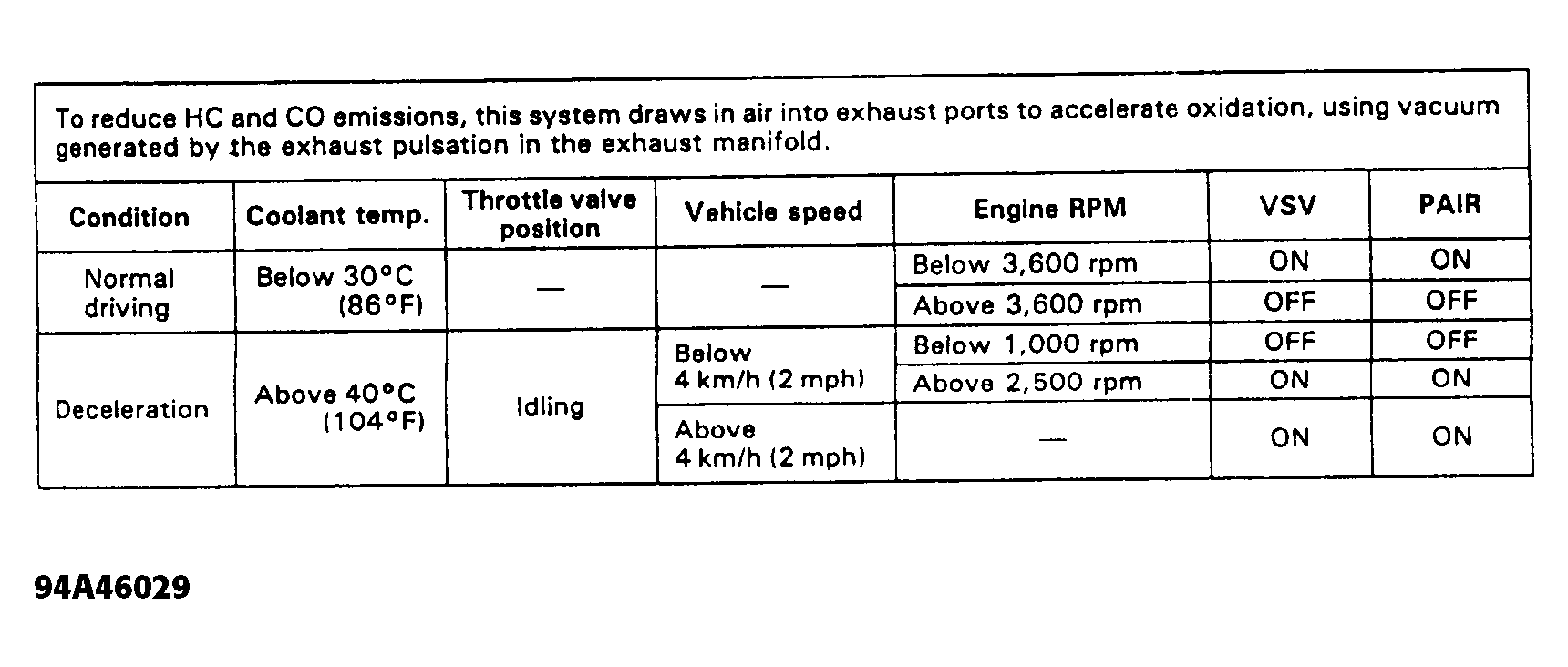

Fig 3: PAIR System Operating Parameters (2.4L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

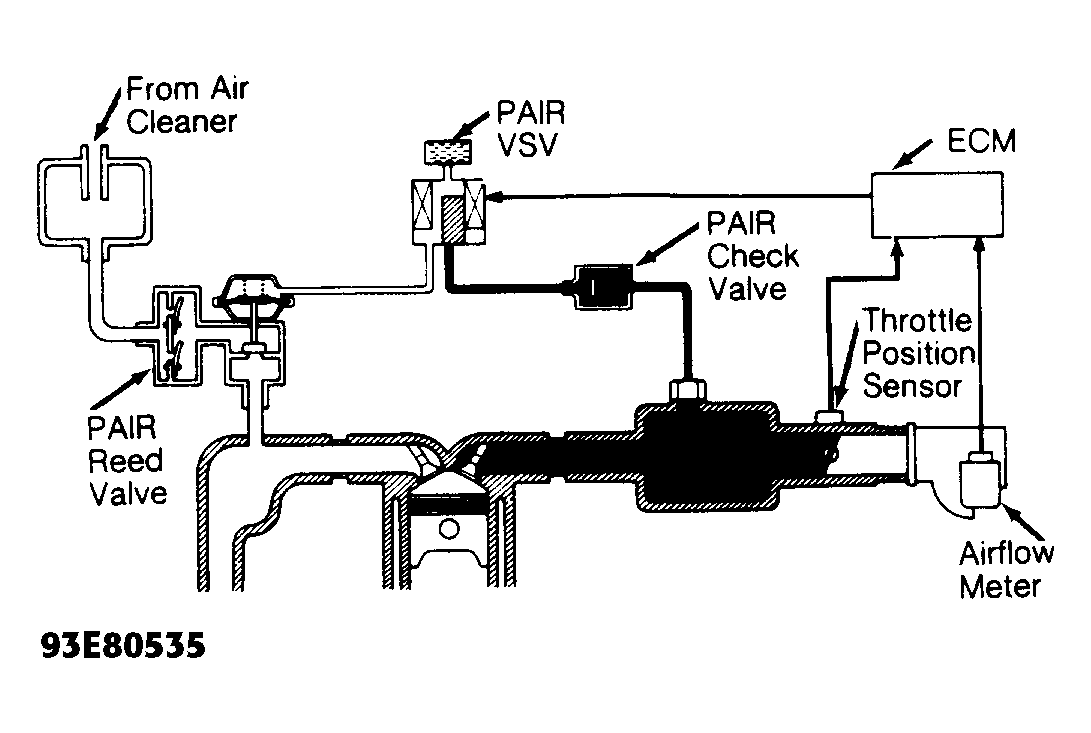

Fig 4: PAIR System Diagram (3.0L)

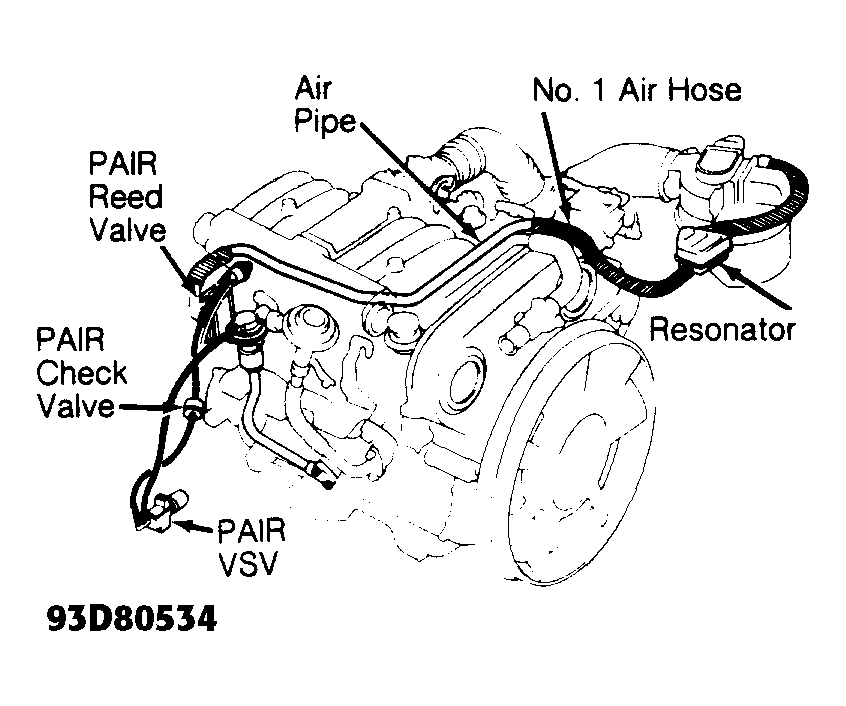

Fig 5: PAIR System Components (3.0L)

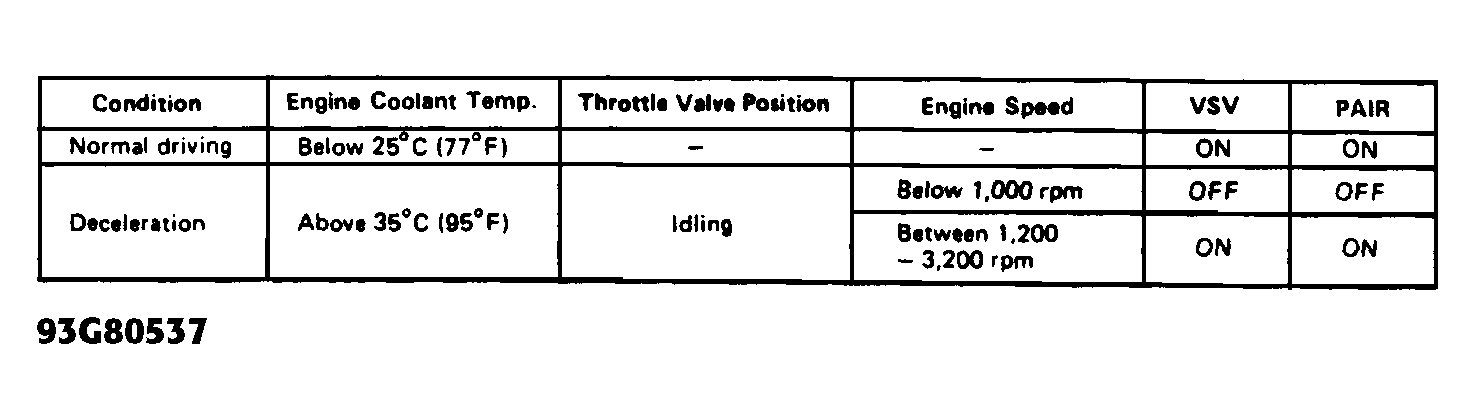

Fig 6: PAIR System Operating Parameters (3.0L)
