EFI Main Relay

Ensure ignition is off. Remove EFI main relay. See EFI MAIN RELAY LOCATION table. Using ohmmeter, check continuity between specified terminals. See Fig 1-19.
Check EFI main relay operation by applying battery voltage and ground and checking continuity between specified terminals. See Fig 1-19. Replace EFI main relay if defective.

NOTE: The EFI main relay may also be identified using appropriate illustration in THEORY/OPERATION article or wire color. See appropriate wiring diagram in WIRING DIAGRAMS article.

EFI MAIN RELAY LOCATION

Application	Location
Pickup	Fuse/Relay Box Near Passenger's Side Front Corner Of Engine Bay

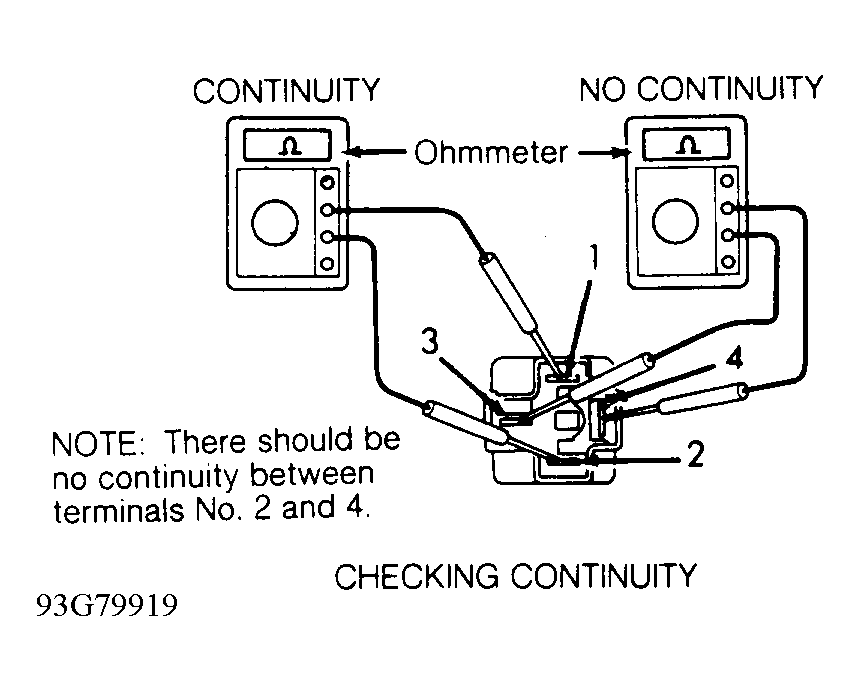

Fig 1: Testing EFI Main Relay - Checking Continuity (2.4L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

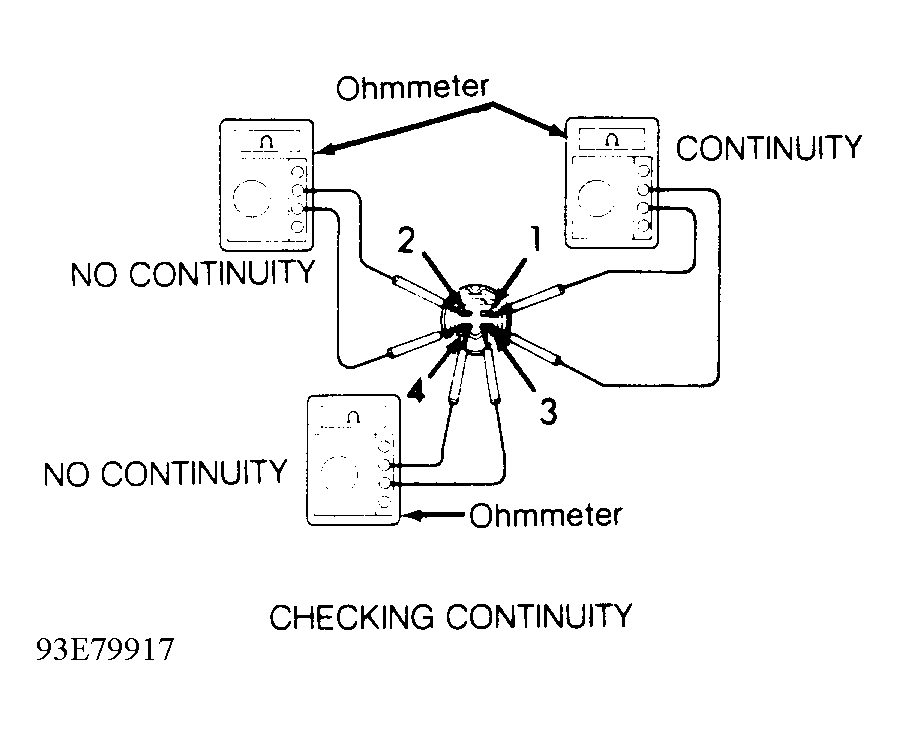

Fig 2: Testing EFI Main Relay - Checking Operation (2.4L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

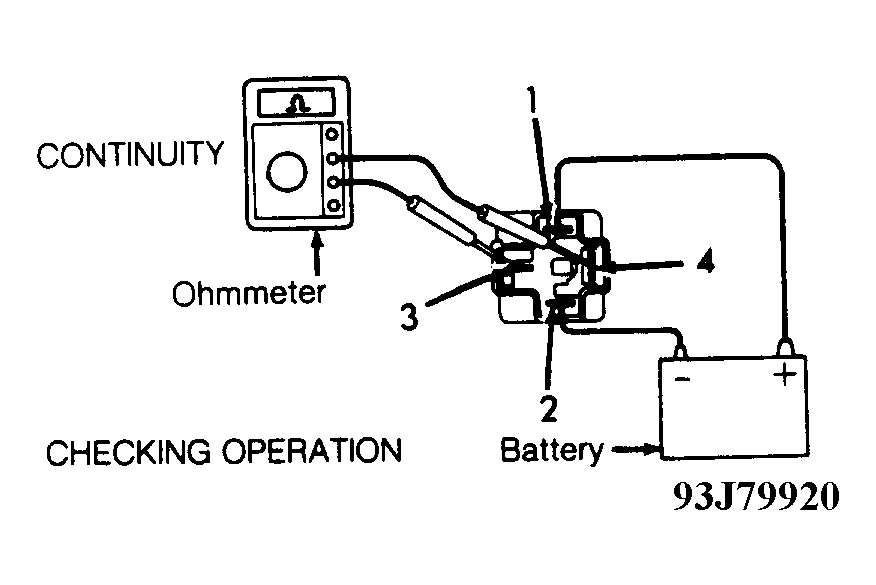

Fig 3: Testing EFI Main Relay - Checking Continuity (3.0L)

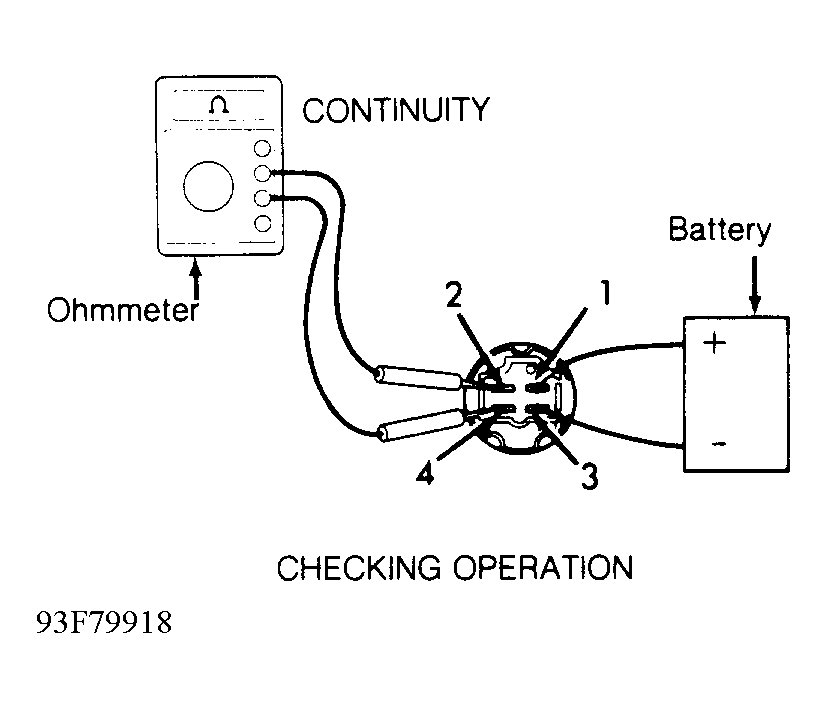

Fig 4: Testing EFI Main Relay - Checking Operation (3.0L)
