Wheel Alignment Specifications

NOTE: For 2WD, see Fig 1.

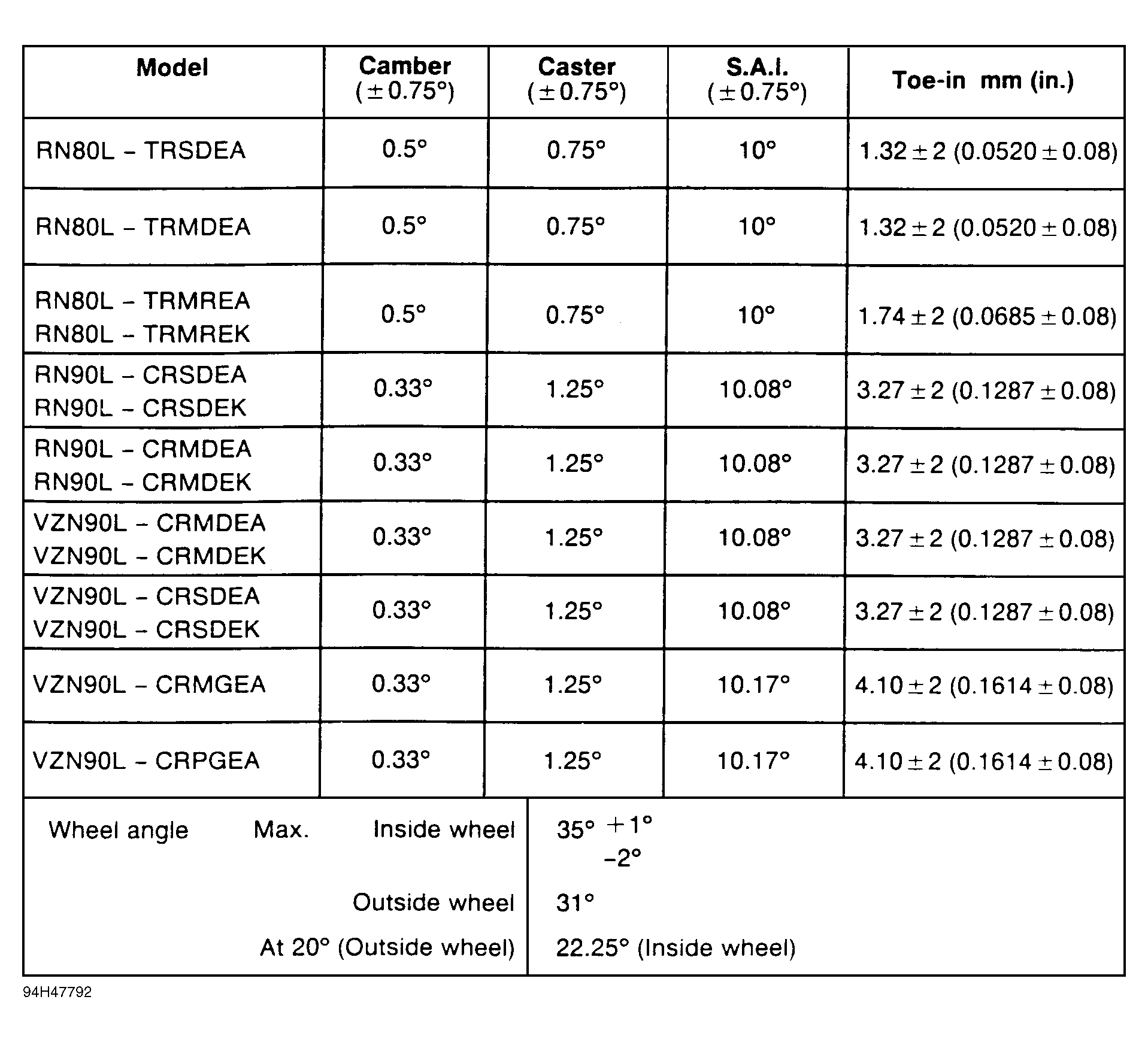

Fig 1: Wheel Alignment Specifications (2WD)

G94H47792

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

WHEEL ALIGNMENT SPECIFICATIONS

Application

Preferred

Range

Camber ⁽¹⁾

0.75

0 To 1.5

Caster ⁽¹⁾

2.5

1.75 To 3.25

Steering Axis Inclination ⁽¹⁾

11.83

N/A

Toe-In ⁽²⁾

0.4 (1)

-0.04 To 0.12 (-1 To 3)

Toe-In ⁽¹⁾

0.08

-0.08 To 0.24

Toe-Out On Turns ⁽¹⁾

Inner

32

N/A

Outer

31

N/A

⁽¹⁾	Measurement in degrees.

⁽²⁾	Measurement in inches (mm).
