Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

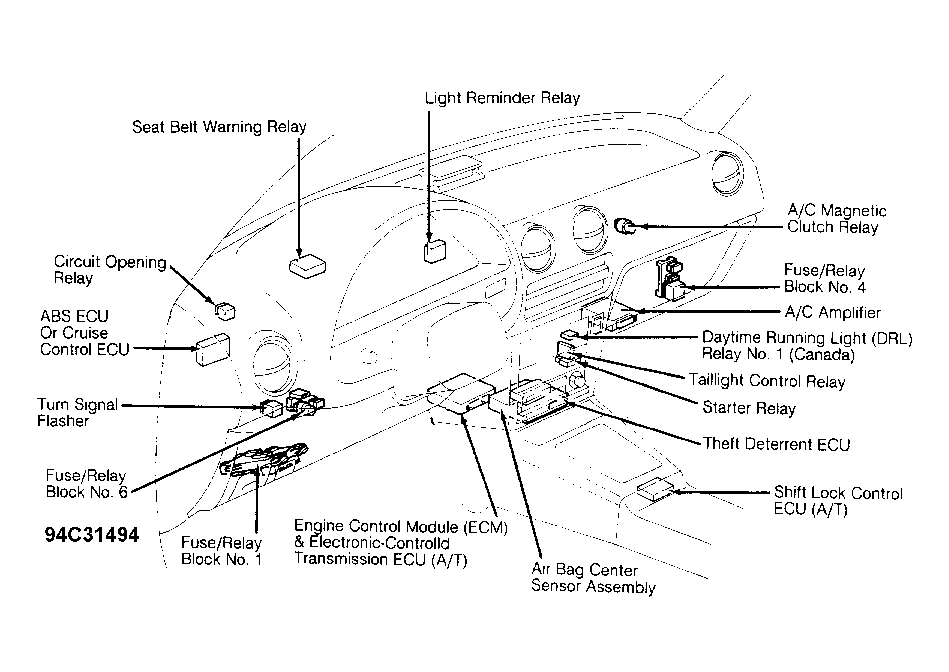

Fuse/Relay Block No. 1 Behind left side of dash. See Figure.

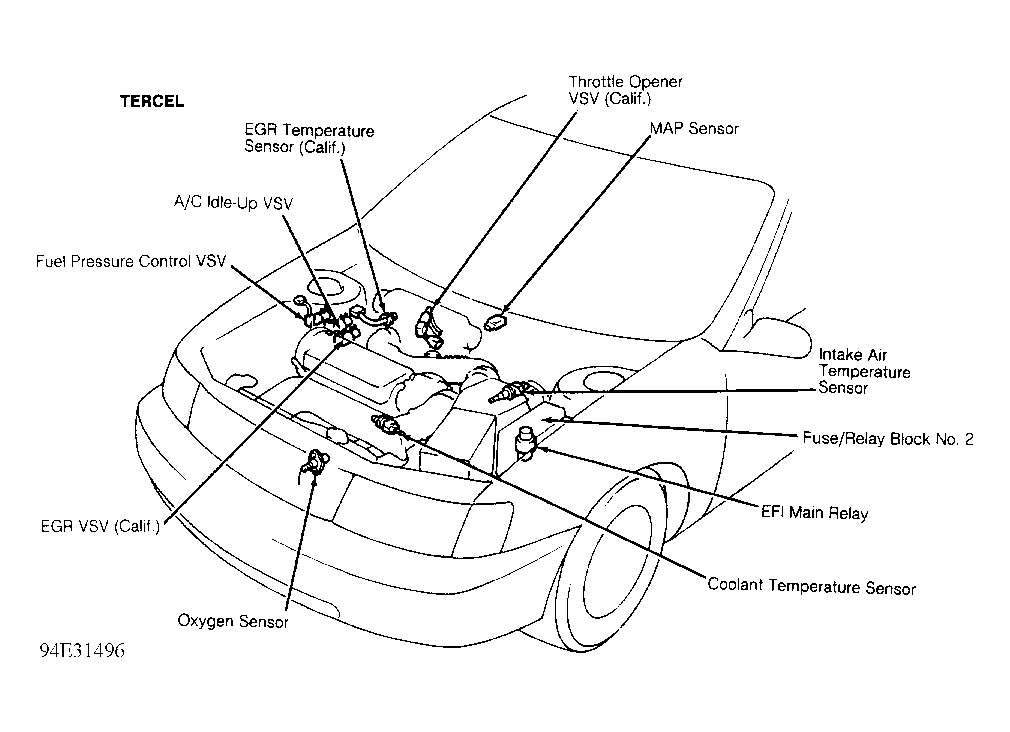

Fuse/Relay Block No. 2 On left front inner fender panel. See Figure.
Fuse/Relay Block No. 4 Behind right side of dash, near kick panel. See Figure.
Fuse/Relay Block No. 5 (Canada) In left front inner fender panel.
Fuse/Relay Block No. 6 Behind left side of dash, above junction block No. 1. See Figure.
Main Fusible Link (FL) Near positive battery terminal.
