Park/Neutral Switch: Notes
NOTE:
If vehicle will not start with shift lever in Park/Neutral position, verify correct park/neutral switch adjustment. If park/neutral switch is correctly adjusted, verify switch continuity.

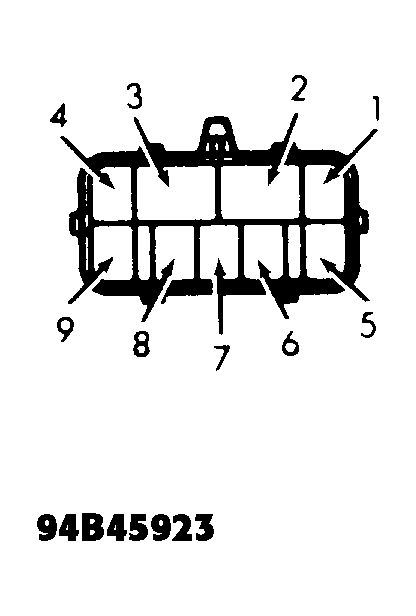

PARK/NEUTRAL SWITCH CONTINUITY SPECIFICATIONS
| Gearshift Position | Continuity Between Terminals |
|---|---|
| Park | 2 & 3, 1 & 6 |
| Reverse | 5 & 6 |
| Neutral | 2 & 3, 6 & 7 |
| Drive | 6 & 8 |
| 2 | 6 & 9 |
| Low | 6 & 4 |
