Ignition Coil Resistance

Disconnect wiring from ignition coil so ignition coil is isolated from system. Using an ohmmeter, check primary resistance between ignition coil positive (+) and negative (-) terminals. See Fig 1 and Fig 2.
Check secondary resistance between ignition coil positive (+) terminal and high tension terminal (coil wire tower). See Fig 3 and Fig 4. Replace ignition coil if resistance is not within specification. See appropriate IGNITION COIL RESISTANCE table.

IGNITION COIL RESISTANCE - Ohms @ 68°F (20°C)

Application	Primary	Secondary
Paseo & Tercel	.36-.55	9000-15,400

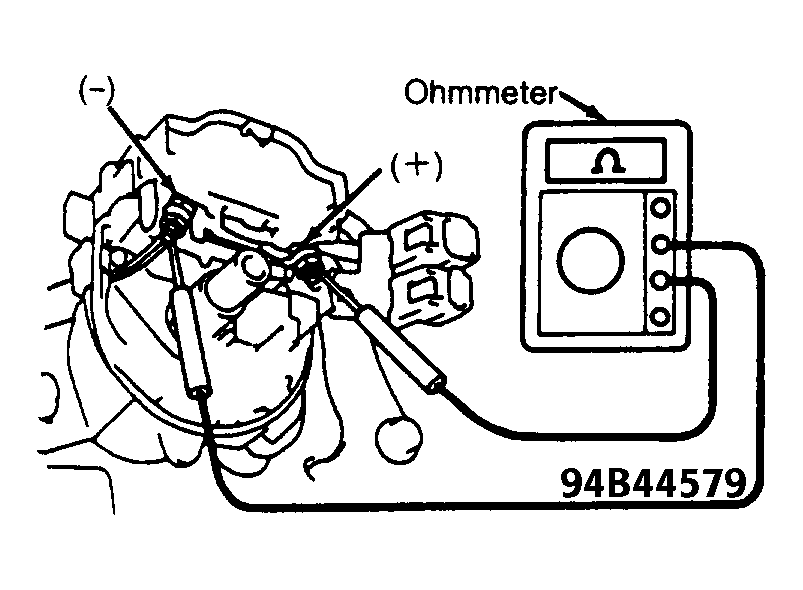

Fig 1: Checking Ignition Coil Primary Resistance (Paseo)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Checking Ignition Coil Primary Resistance (Tercel)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

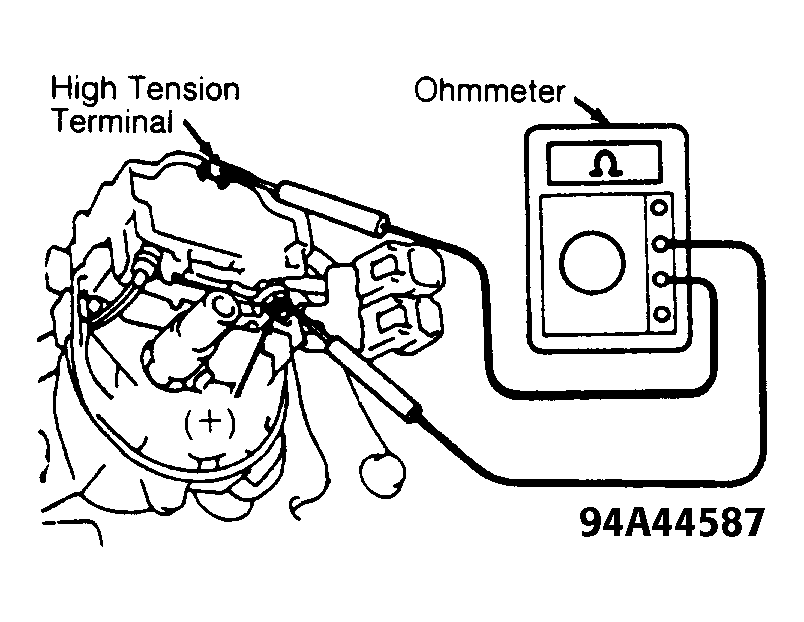

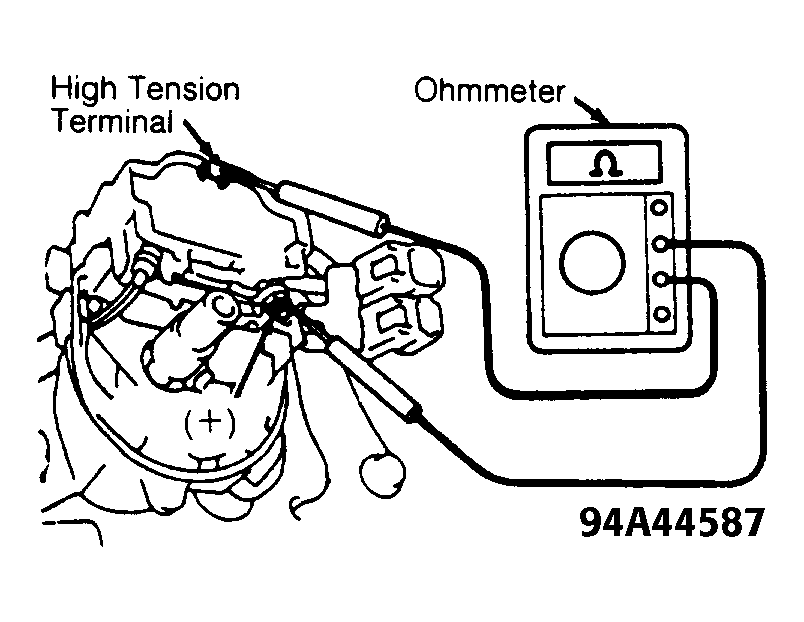

Fig 3: Checking Ignition Coil Secondary Resistance (Paseo)

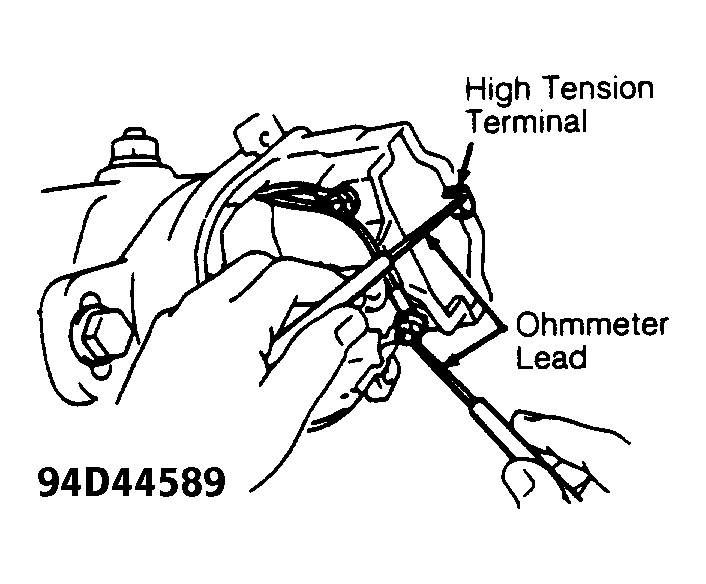

Fig 4: Checking Ignition Coil Secondary Resistance (Tercel)
