Pick-Up Coil Air Gap

Using non-magnetic feeler gauge, check air gap between signal rotor and pick-up coil projection. See Fig 1 and Fig 2.
Replace distributor assembly if pick-up coil air gap is not within specification. See PICK-UP COIL AIR GAP SPECIFICATIONS table.

PICK-UP COIL AIR GAP SPECIFICATIONS

Application	In. (mm)
Paseo & Tercel	.008-.016 (.20-.40)

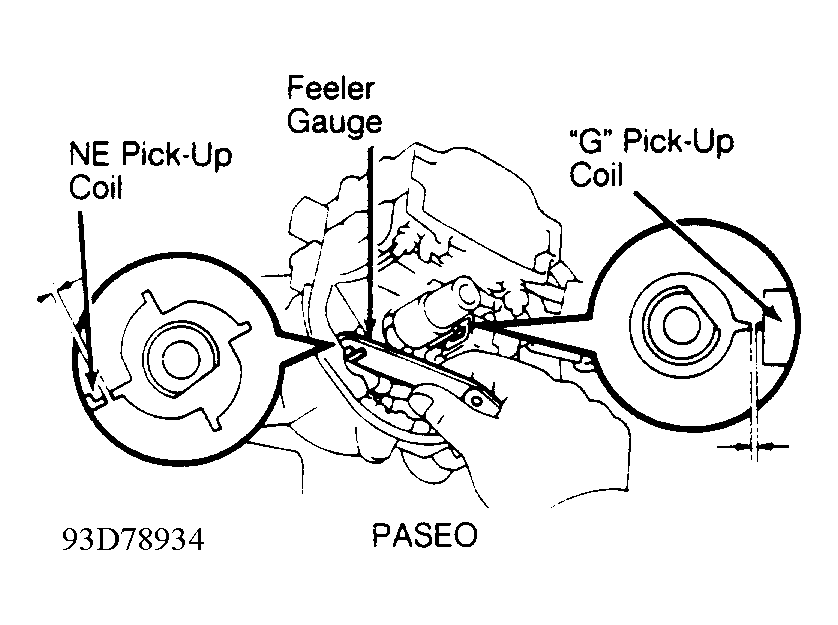

Fig 1: Checking Pick-Up Coil Air Gap (Paseo)

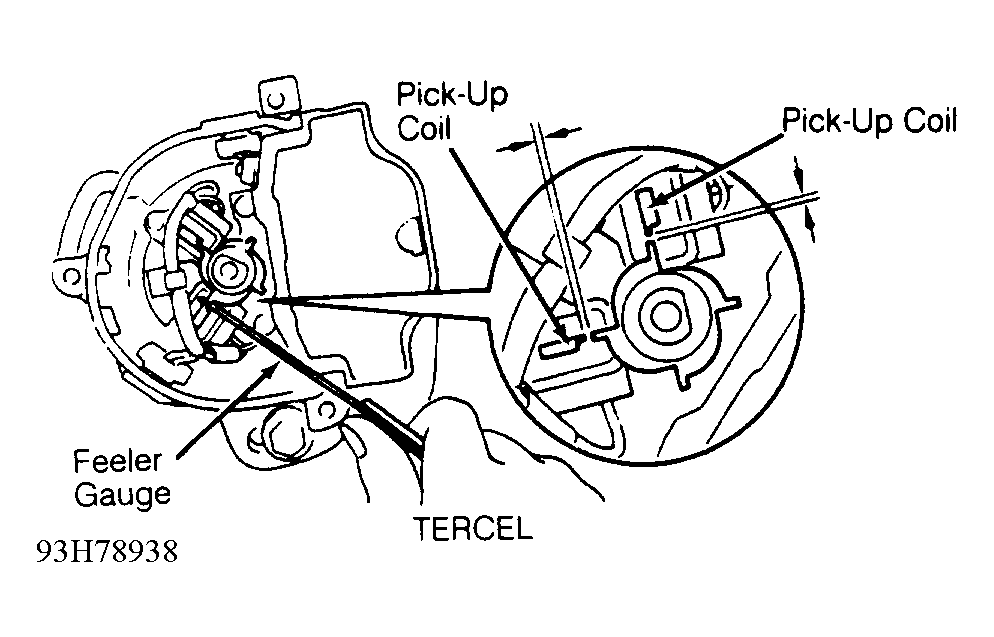

Fig 2: Checking Pick-Up Coil Air Gap (Tercel)
