Circuit Opening Relay

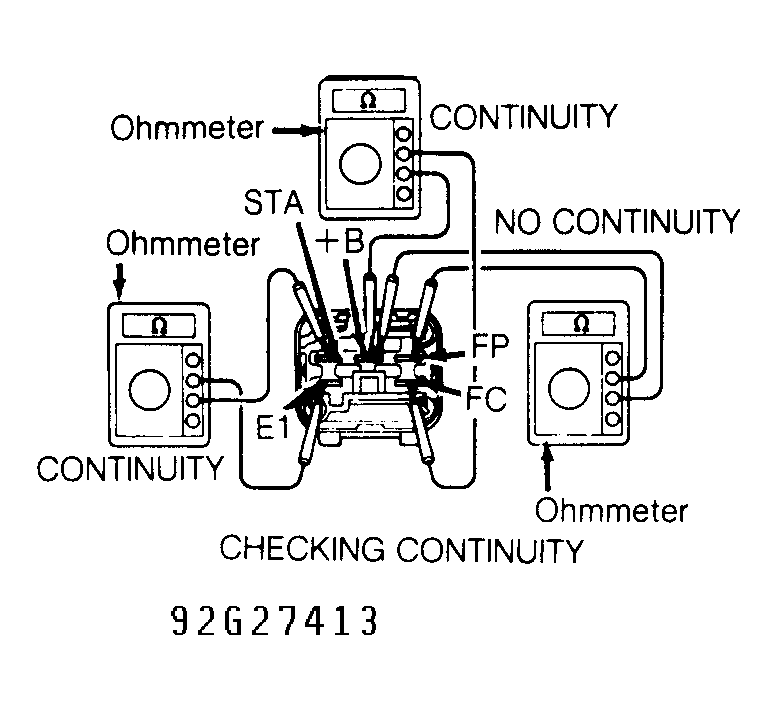

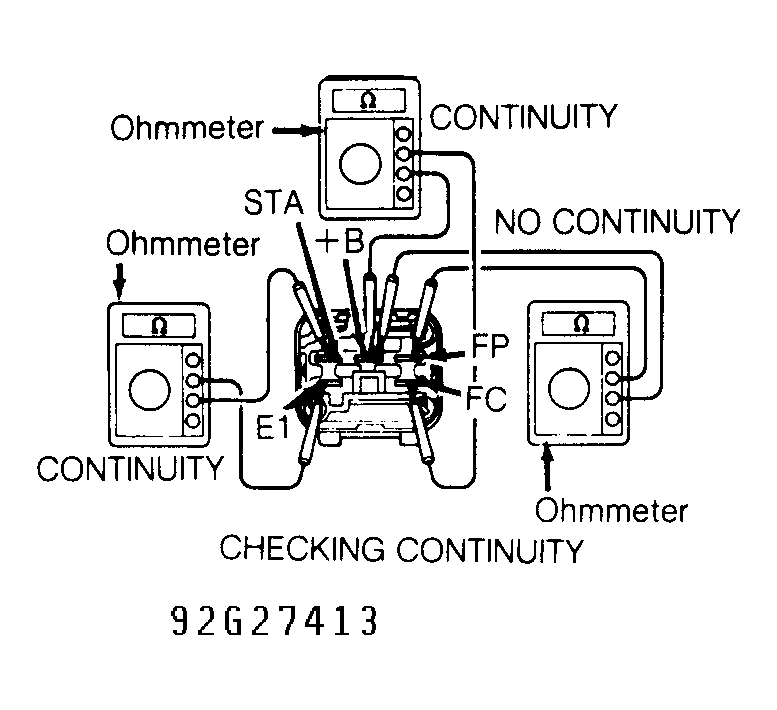

- Ensure ignition is off. Remove circuit opening relay. See CIRCUIT OPENING RELAY LOCATION table. Using ohmmeter, check continuity between specified terminals. See Fig 1, Fig 2 and Fig 3.

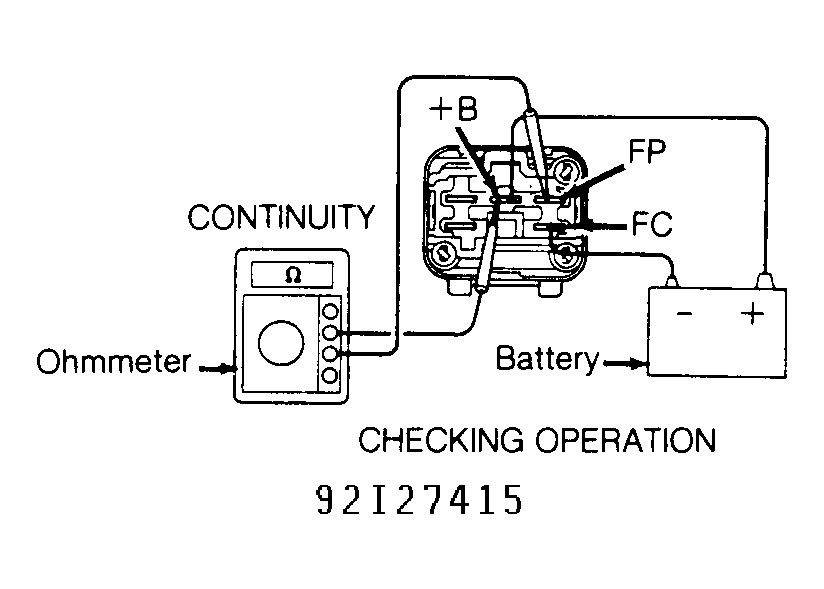

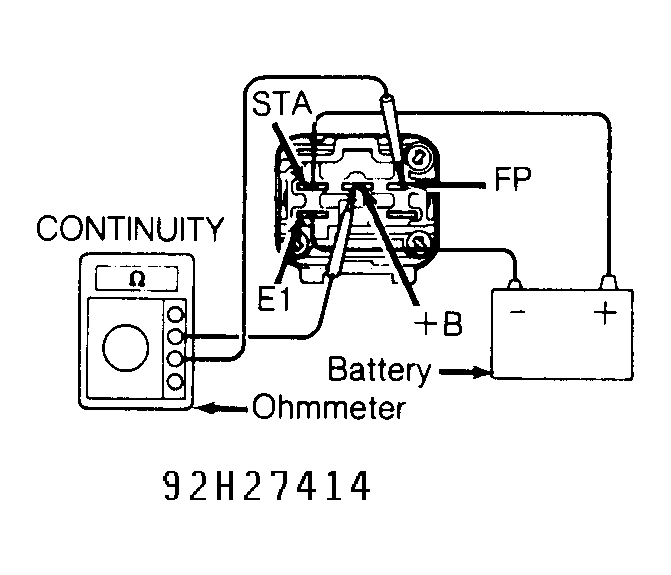

- Check circuit opening relay operation by applying battery voltage and ground and checking continuity between specified terminals. See Fig 1, Fig 2 and Fig 3. Replace circuit opening relay if defective.NOTE: Circuit opening relay may also be identified using appropriate illustration in THEORY/OPERATION article or wire color. See appropriate wiring diagram in articles listed below:
- WIRING DIAGRAMS Paseo
- WIRING DIAGRAMS Tercel
CIRCUIT OPENING RELAY LOCATION
| Application | Location |
|---|---|
| Paseo | Bottom Center Of Dash, Above ECM |
| Tercel | Bottom Center Of Dash, In Front Of Console, Right Side Of ECM |
