EFI Main Relay

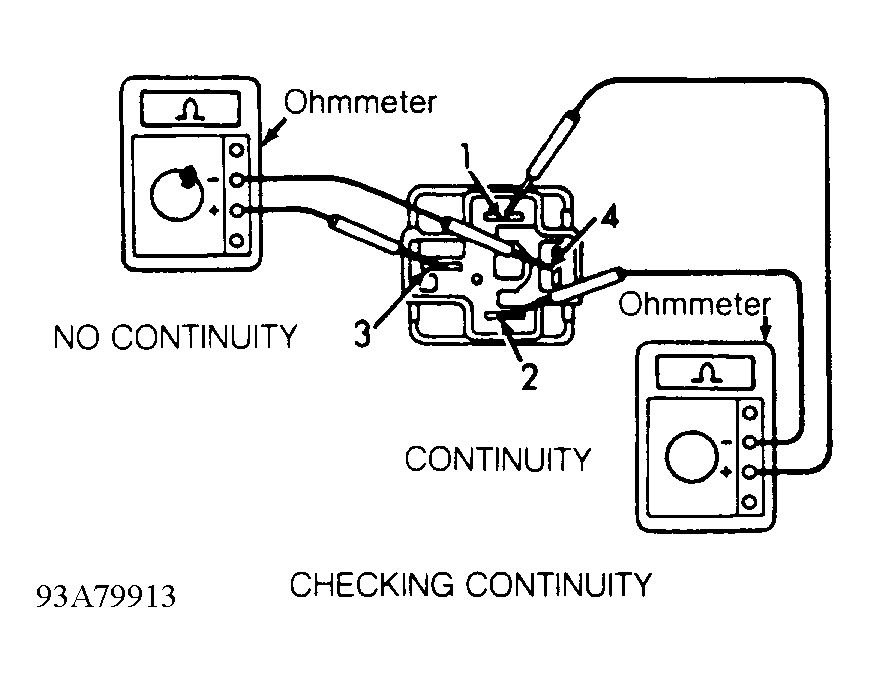

- Ensure ignition is off. Remove EFI main relay. See EFI MAIN RELAY LOCATION table. Using ohmmeter, check continuity between specified terminals. See Fig 1 and Fig 2.

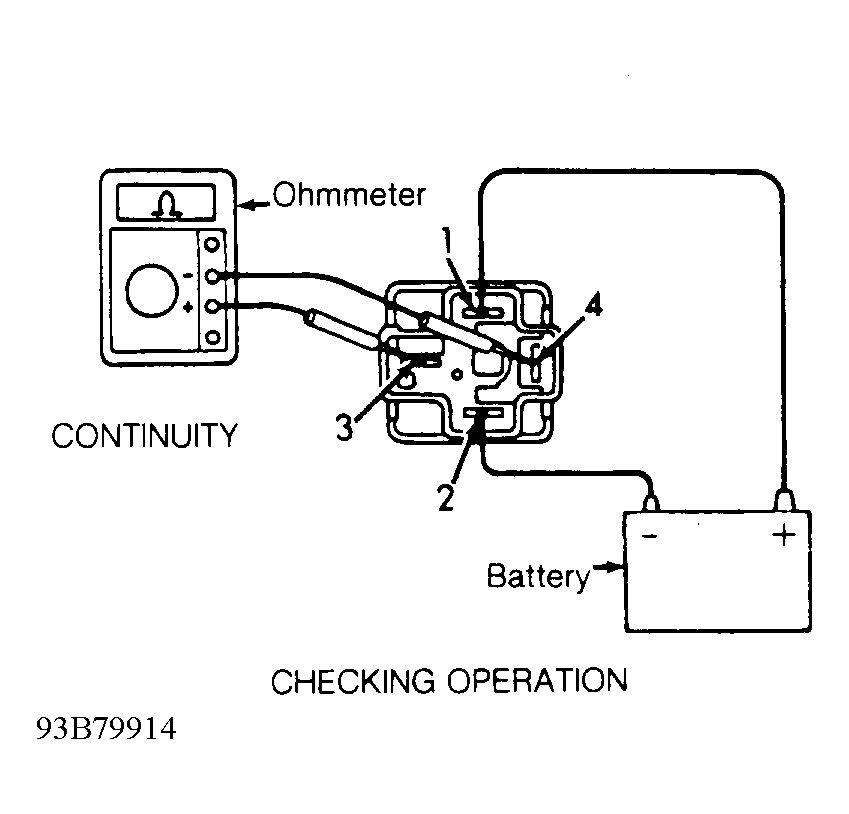

- Check EFI main relay operation by applying battery voltage and ground and checking continuity between specified terminals. See Fig 1 and Fig 2. Replace EFI main relay if defective.NOTE: The EFI main relay may also be identified using appropriate illustration in THEORY/OPERATION article or wire color. See appropriate wiring diagram in articles listed below:
- WIRING DIAGRAMS Paseo
- WIRING DIAGRAMS Tercel
EFI MAIN RELAY LOCATION
| Application | Location |
|---|---|
| Paseo & Tercel | Fuse/Relay Box Near Driver's Side Front Fenderwell |
