Trouble Code Detection Driving Pattern Tests

NOTE: Trouble code driving pattern test may be referred to as driving pattern test.

With certain trouble codes, once trouble code has been cleared from ECM memory, a trouble code detection driving pattern test can be performed to verify repairs and that trouble has not reset. Trouble code driving pattern test will duplicate conditions required to set specified trouble codes.
Trouble code detection driving pattern test lists procedure to be performed to ensure trouble code has not reset. See Fig 1.
Trouble code detection driving pattern tests apply only to specified trouble codes. See TROUBLE CODE DETECTION DRIVING PATTERN TEST APPLICATION table. Trouble code detection driving pattern test will be included with proper trouble code chart under TROUBLE CODE CHARTS .

TROUBLE CODE DETECTION DRIVING PATTERN TEST APPLICATION

Model

⁽¹⁾ Trouble Code

Tercel

21, 25, 26 & 71

⁽¹⁾	Trouble codes listed may not apply to all models, as some trouble codes are used only on Calif. models.

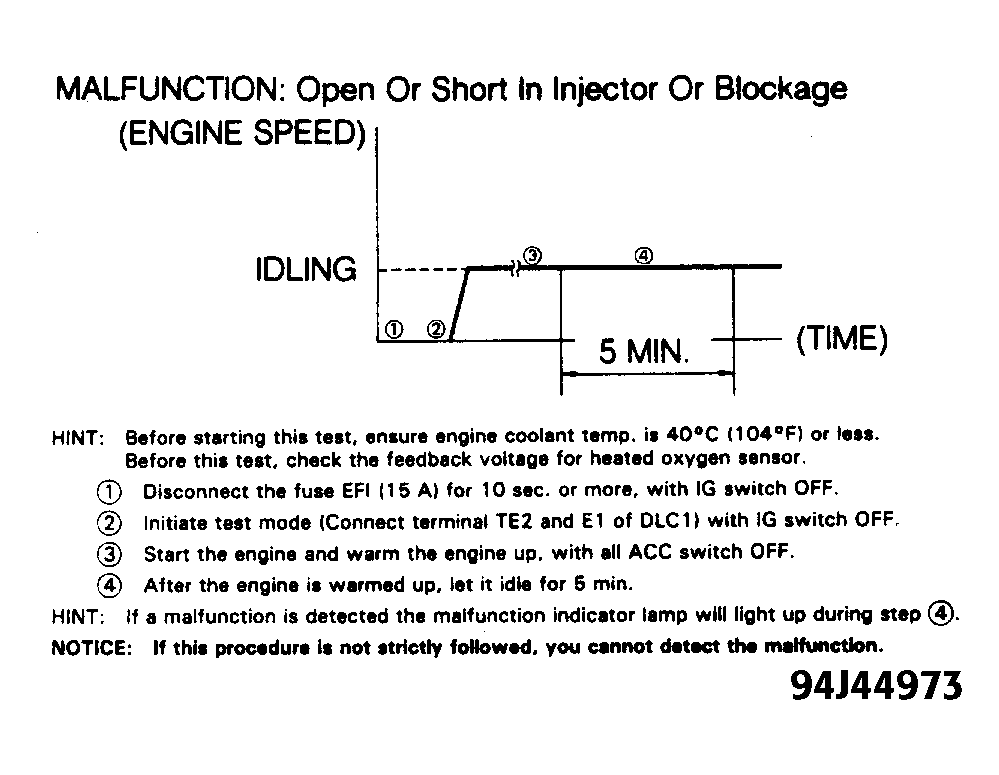

Fig 1: Typical Trouble Code Detection Driving Pattern Test
