DTC 14 - Ignition Signal

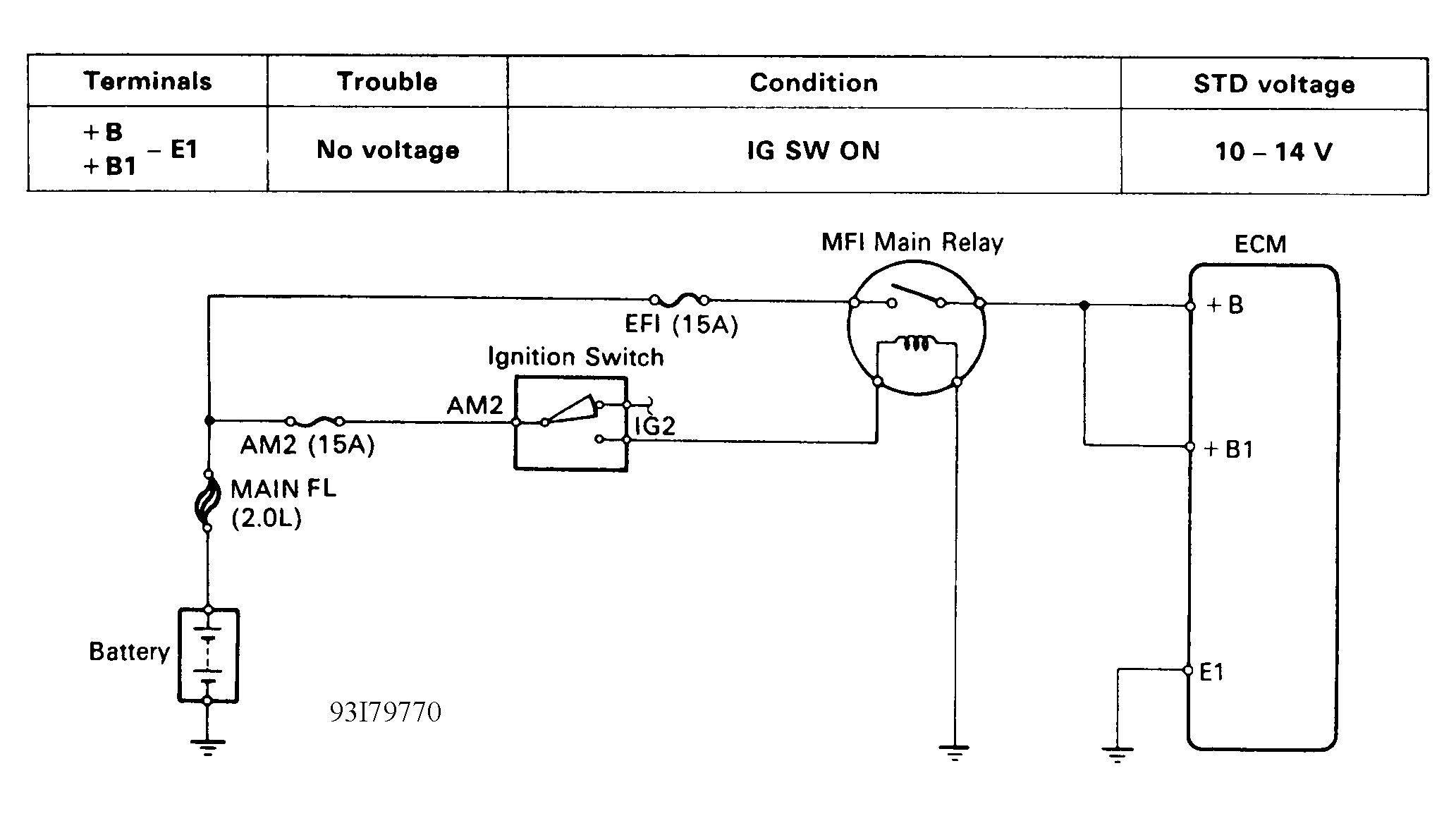

Fig 1: DTC 14 - Schematic
G93I79770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

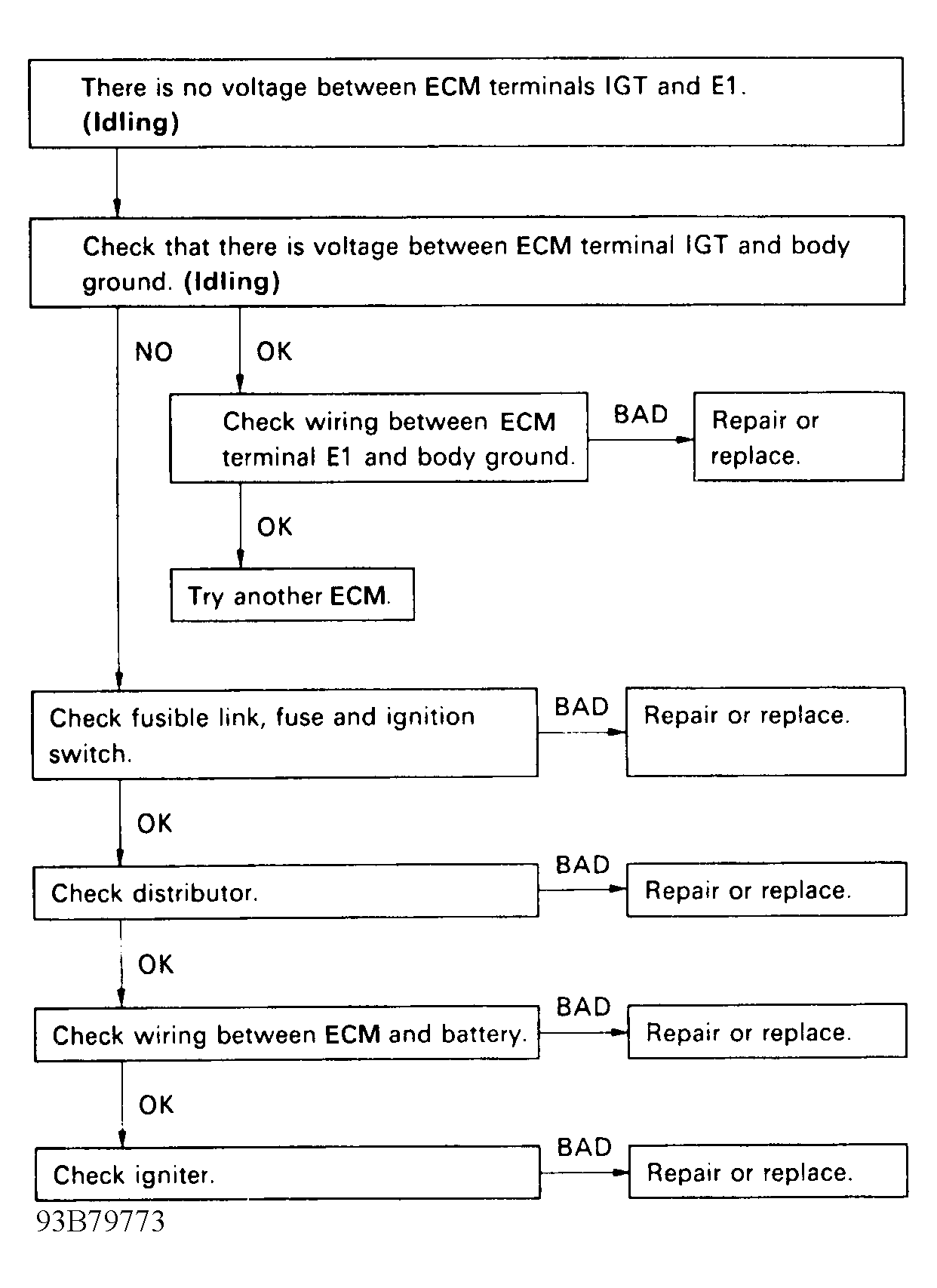

Fig 2: DTC 14 - Diagnostic Flowchart
G93B79773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
