DTC 22 - Engine Coolant Temperature Sensor Signal

DTC 22 CTS SENSOR SIGNAL TROUBLE

Terminals	Trouble	Condition	STD Voltage
THW - E2	No Voltage	Ignition Switch ON Coolant Temp. 80°C (176°F)	0.4 - 0.7V

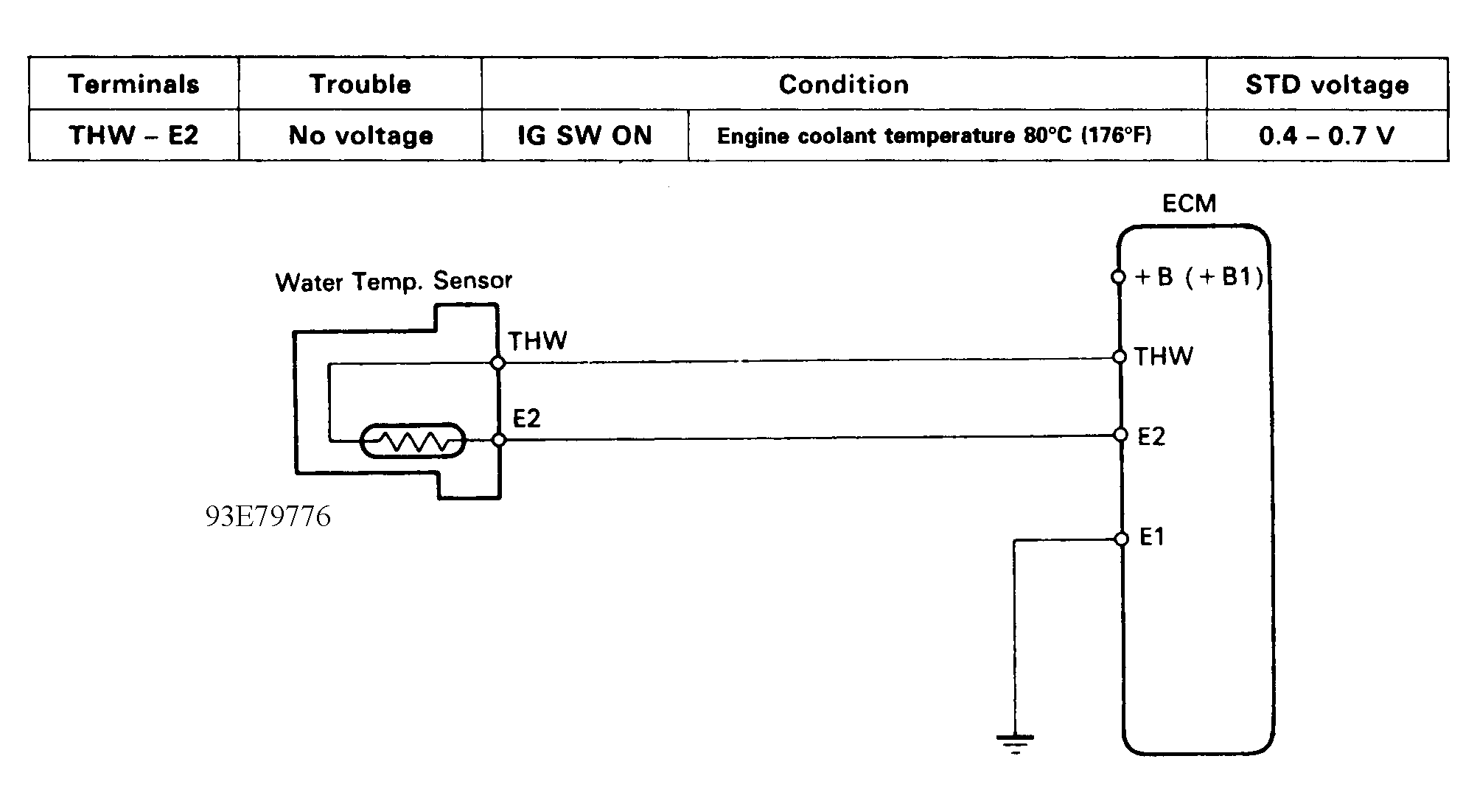

Fig 1: DTC 22 - Schematic

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

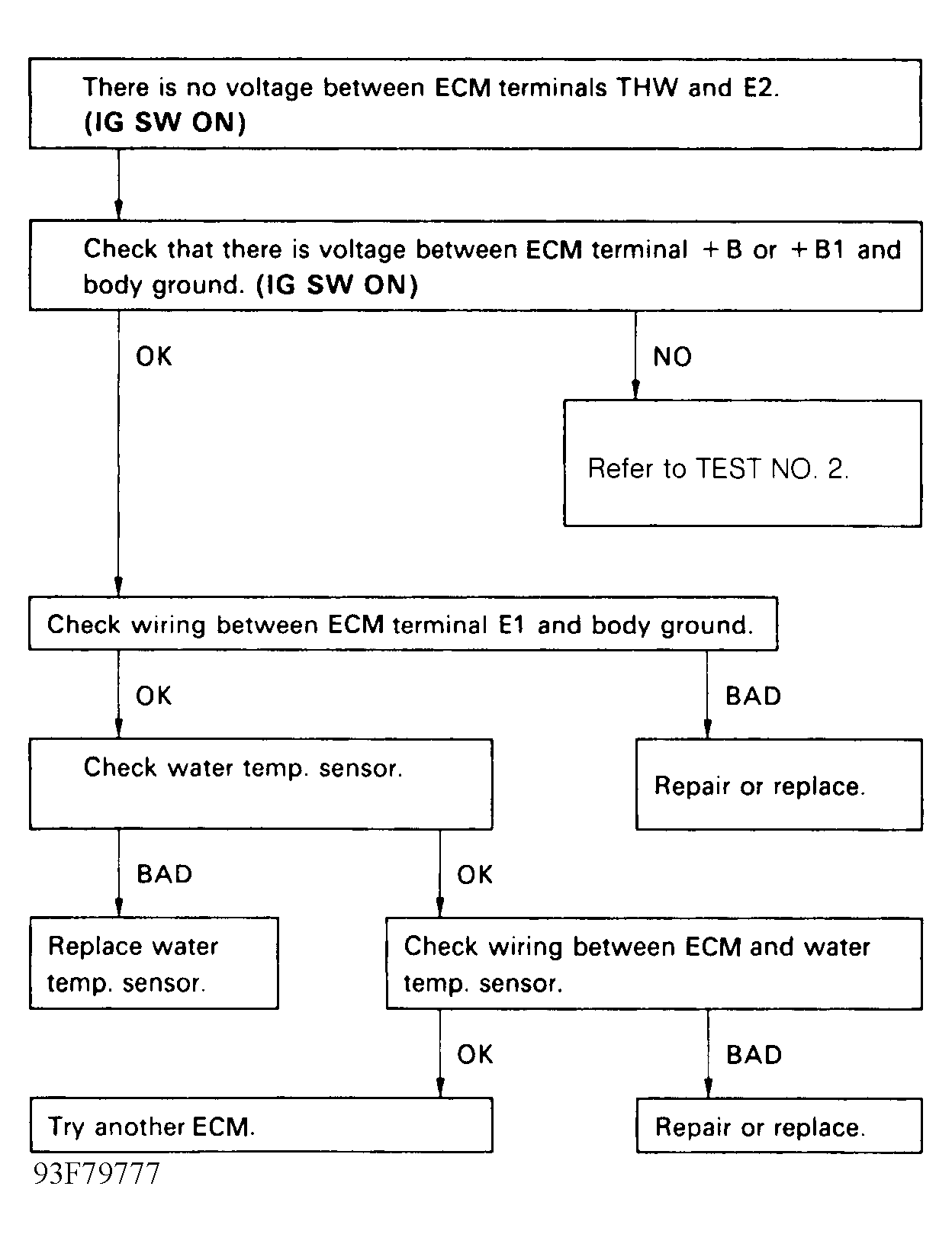

Fig 2: DTC 22 - Diagnostic Flowchart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
