DTC 24 - Intake Air Temperature Sensor Signal

DTC 24 IAT SENSOR SIGNAL TROUBLE

Terminals Trouble Condition STD Voltage
THA - E2 No Voltage Ignition Switch ON Int. Air Temp. 20°C (68°F) 0.5-3.4V

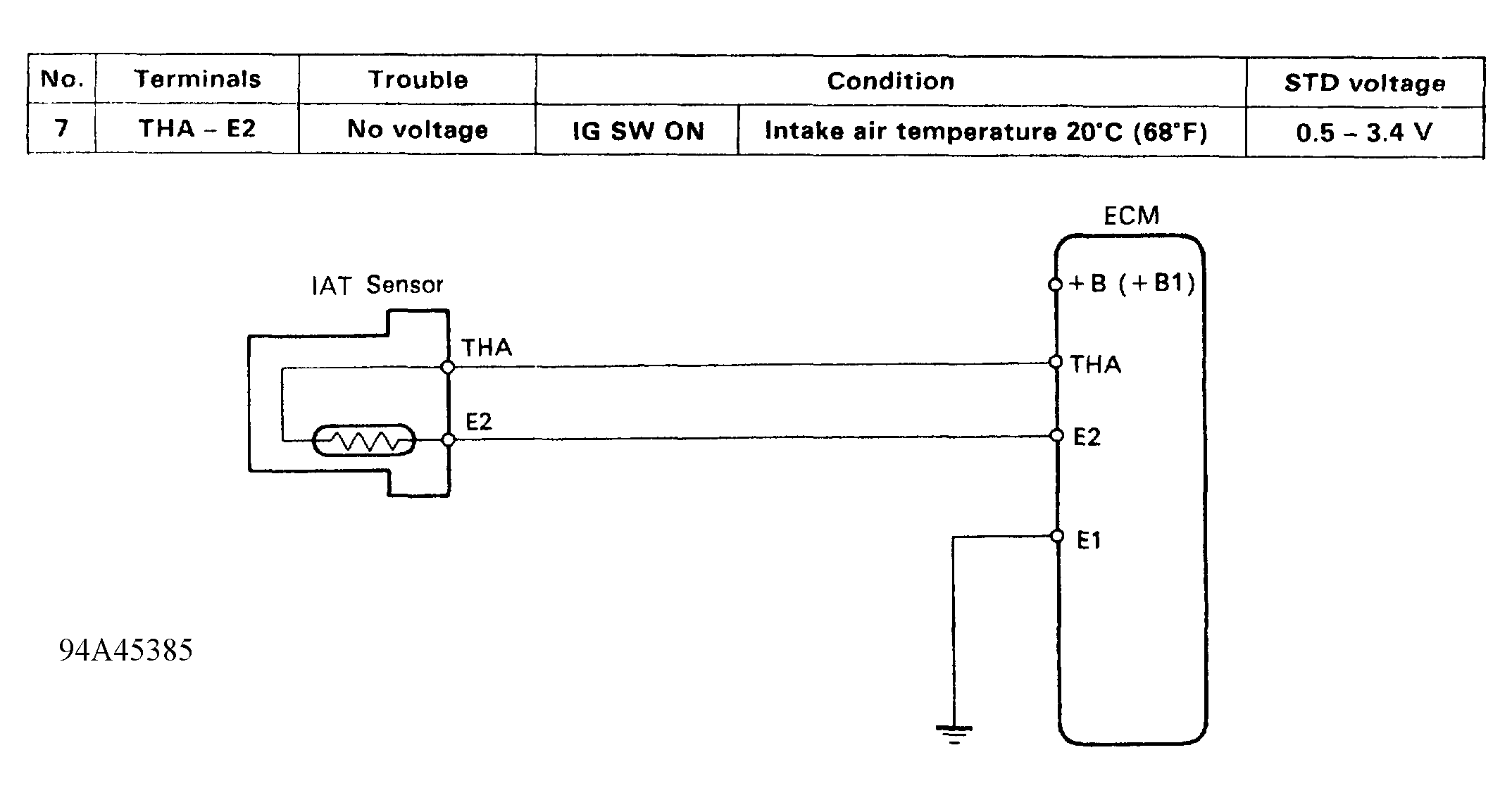

Fig 1: DTC 24 - Schematic
G94A45385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: DTC 24 - Diagnostic Flowchart
G93G79778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
