DTC 31 - Vacuum Sensor Signal

DTC 31 VACUUM SENSOR SIGNAL TROUBLE

Terminals Trouble Condition STD Voltage
PIM-E2 No Voltage Ignition Switch ON 3.3-3.9V
VCC-E2 No Voltage Ignition Switch ON 4.5-5.5V

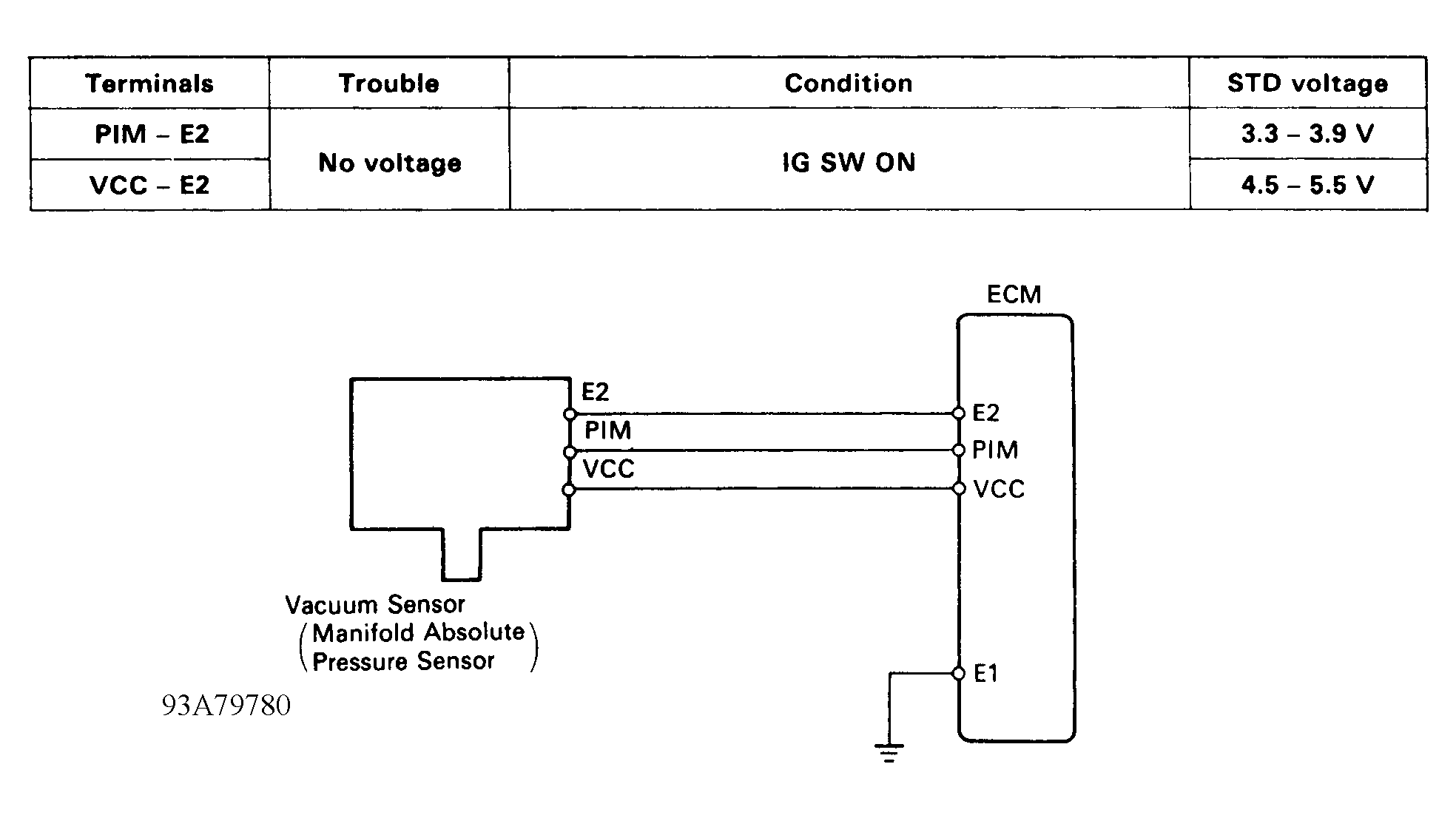

Fig 1: DTC 31 - Schematic
G93A79780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

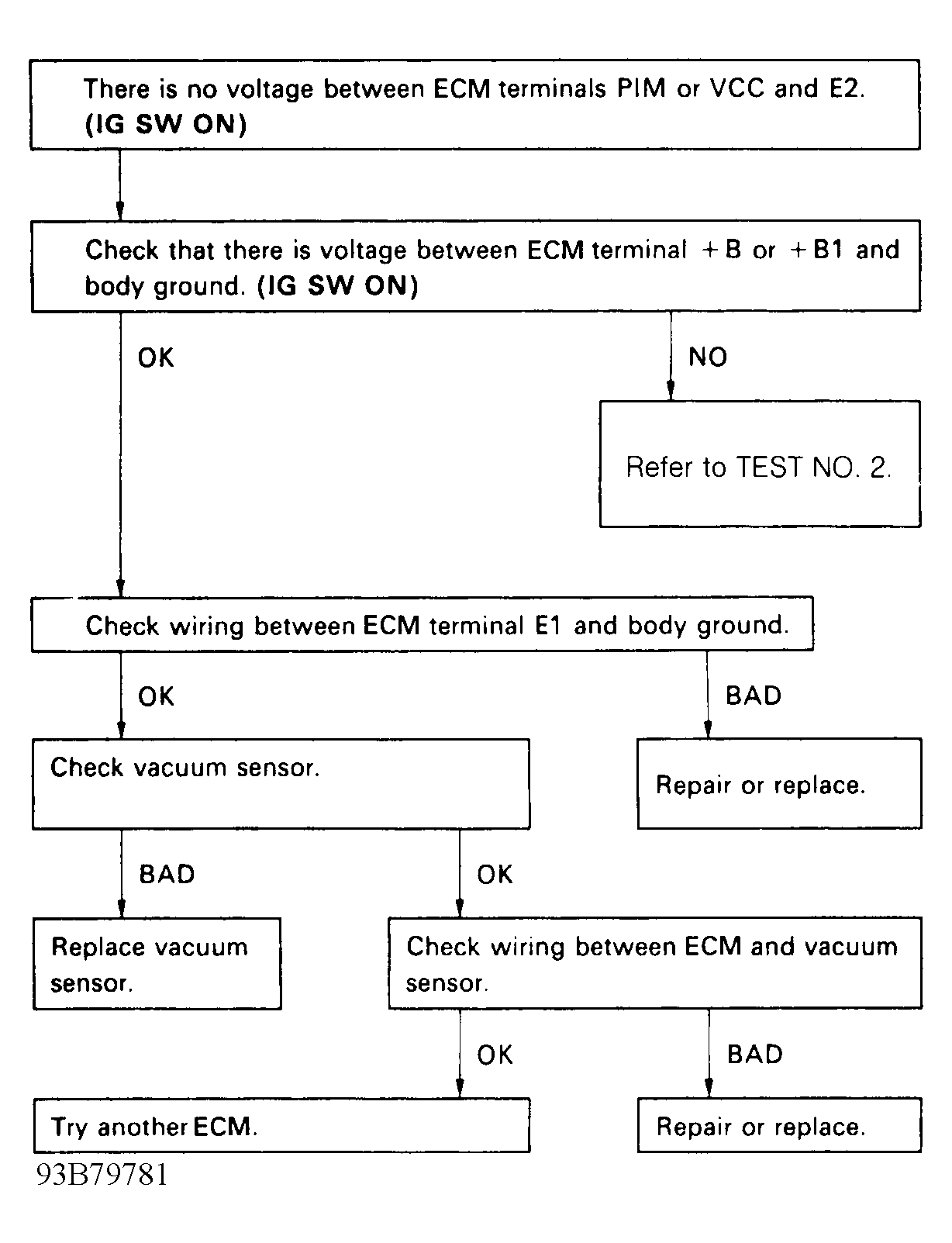

Fig 2: DTC 31 - Diagnostic Flowchart
G93B79781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
