DTC 43 - Starter Signal

DTC 43 STARTER SIGNAL TROUBLE

Terminals Trouble Condition STD Voltage
STA-E1 No Voltage Cranking 6-14V

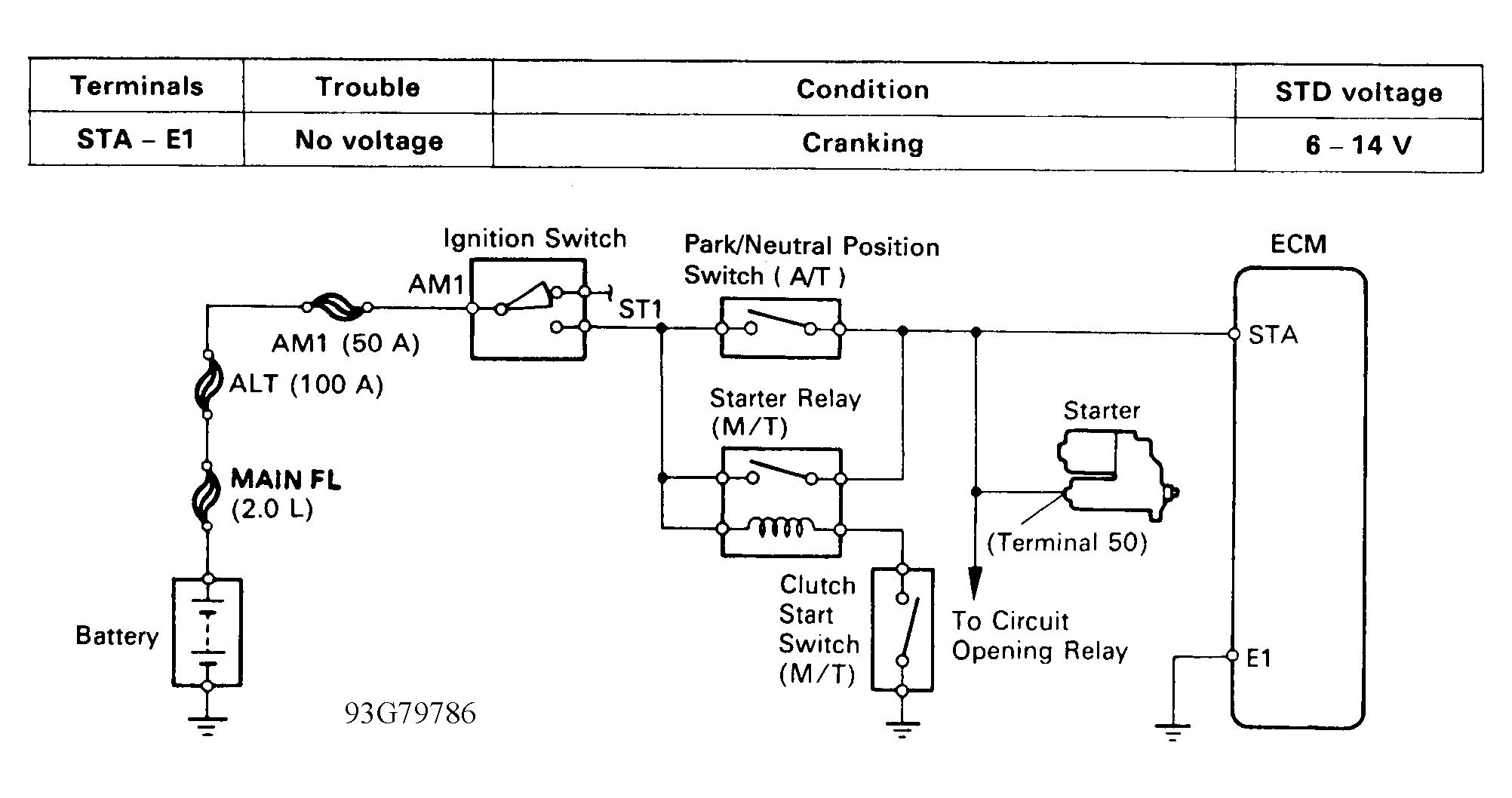

Fig 1: DTC 43 - Schematic
G93G79786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: DTC 43 - Component Diagram
G91G17695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

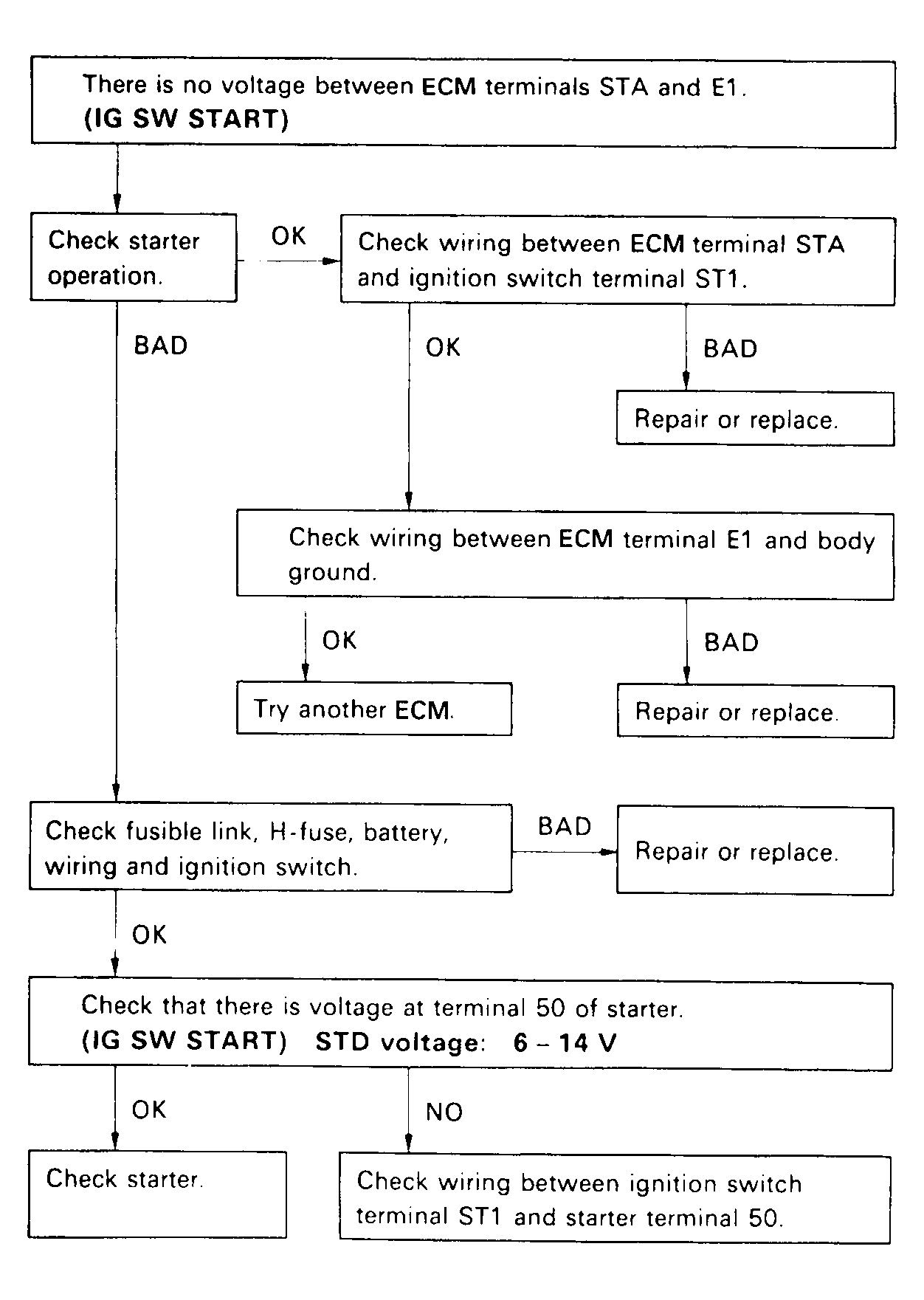

Fig 3: DTC 43 - Diagnostic Flowchart
G93H79787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
