DTC 71 - EGR System Malfunction

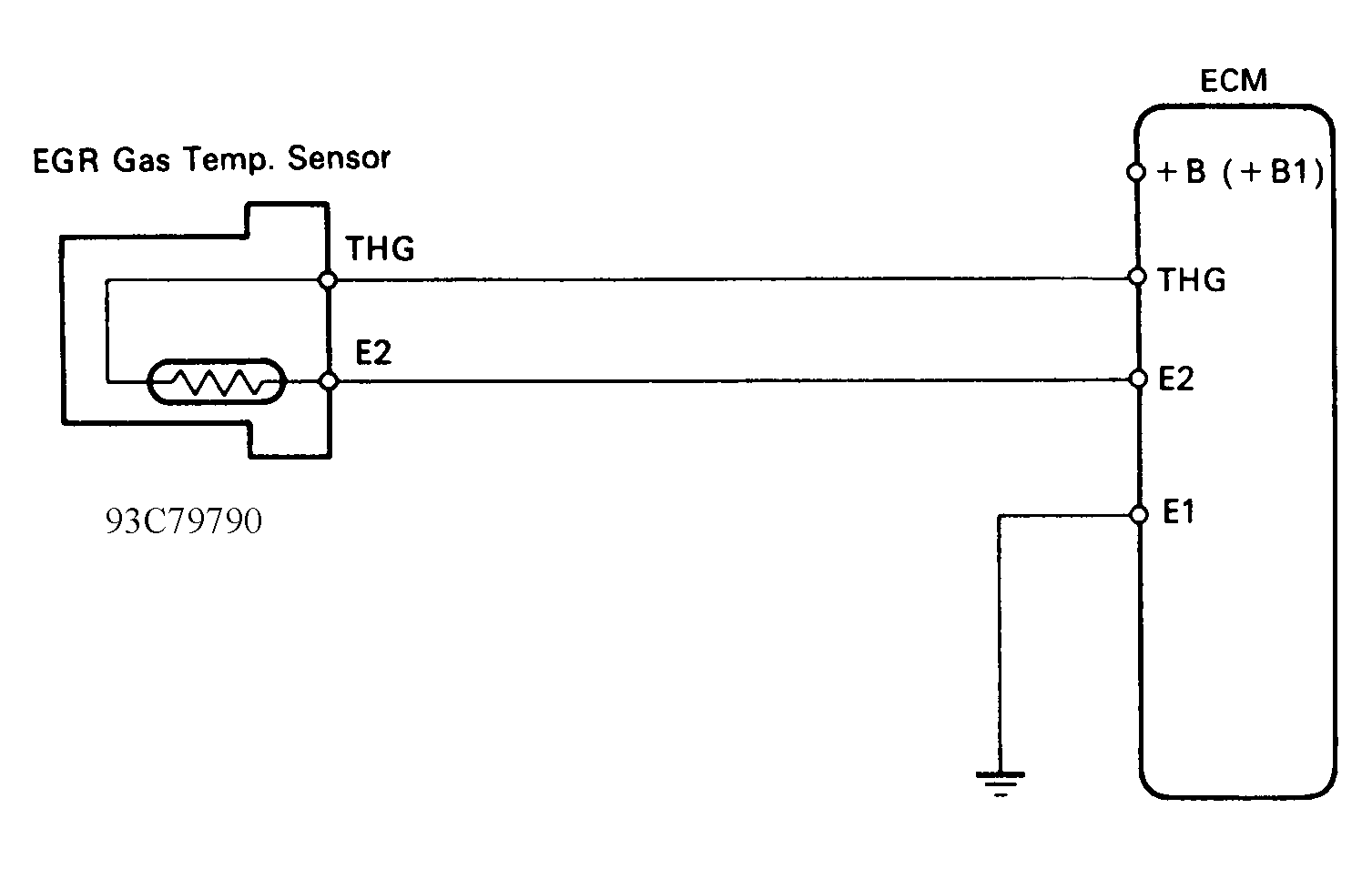

Fig 1: DTC 71 - Schematic
G93C79790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

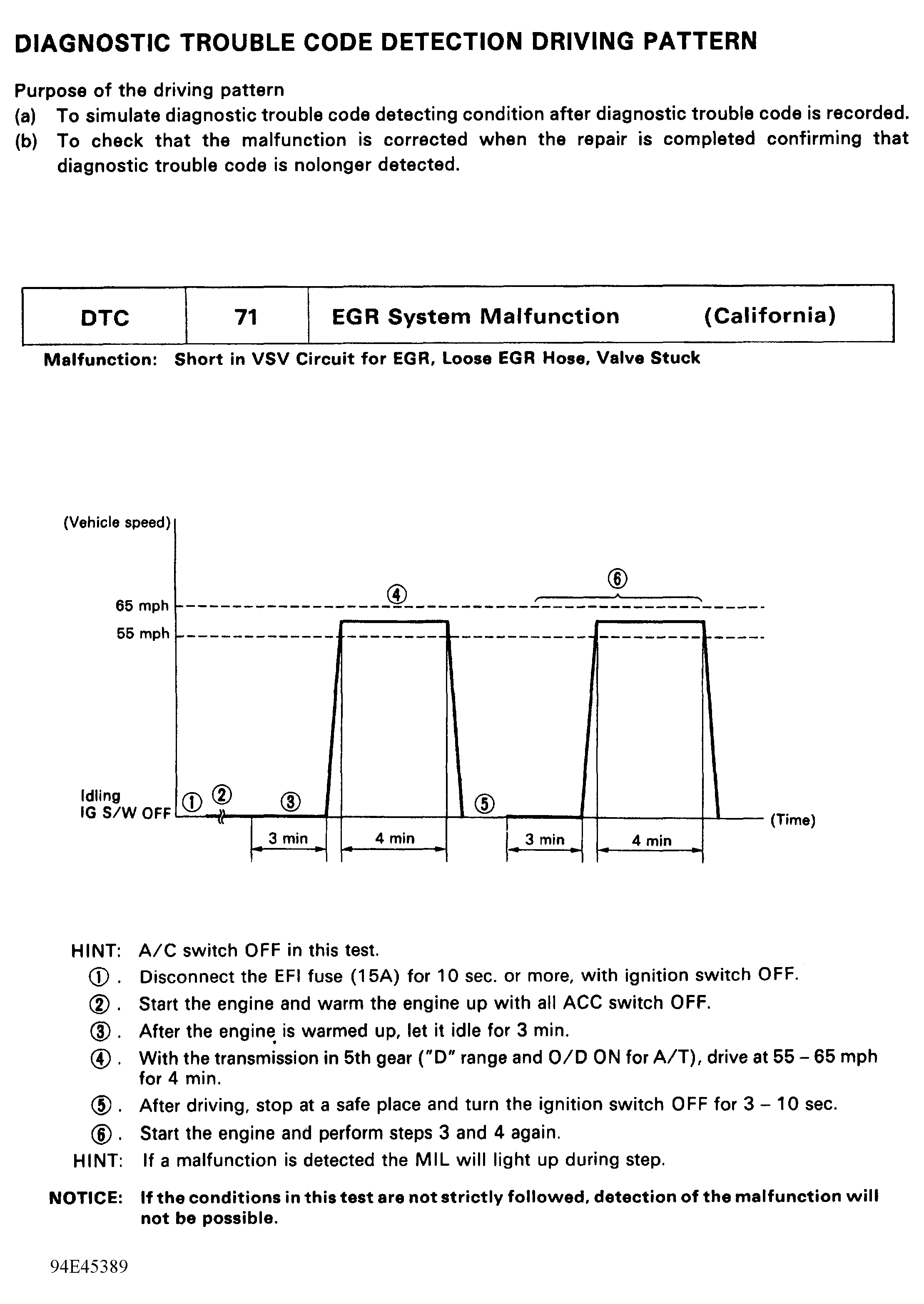

Fig 2: DTC 71 - Driving Detection Pattern
G94E45389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

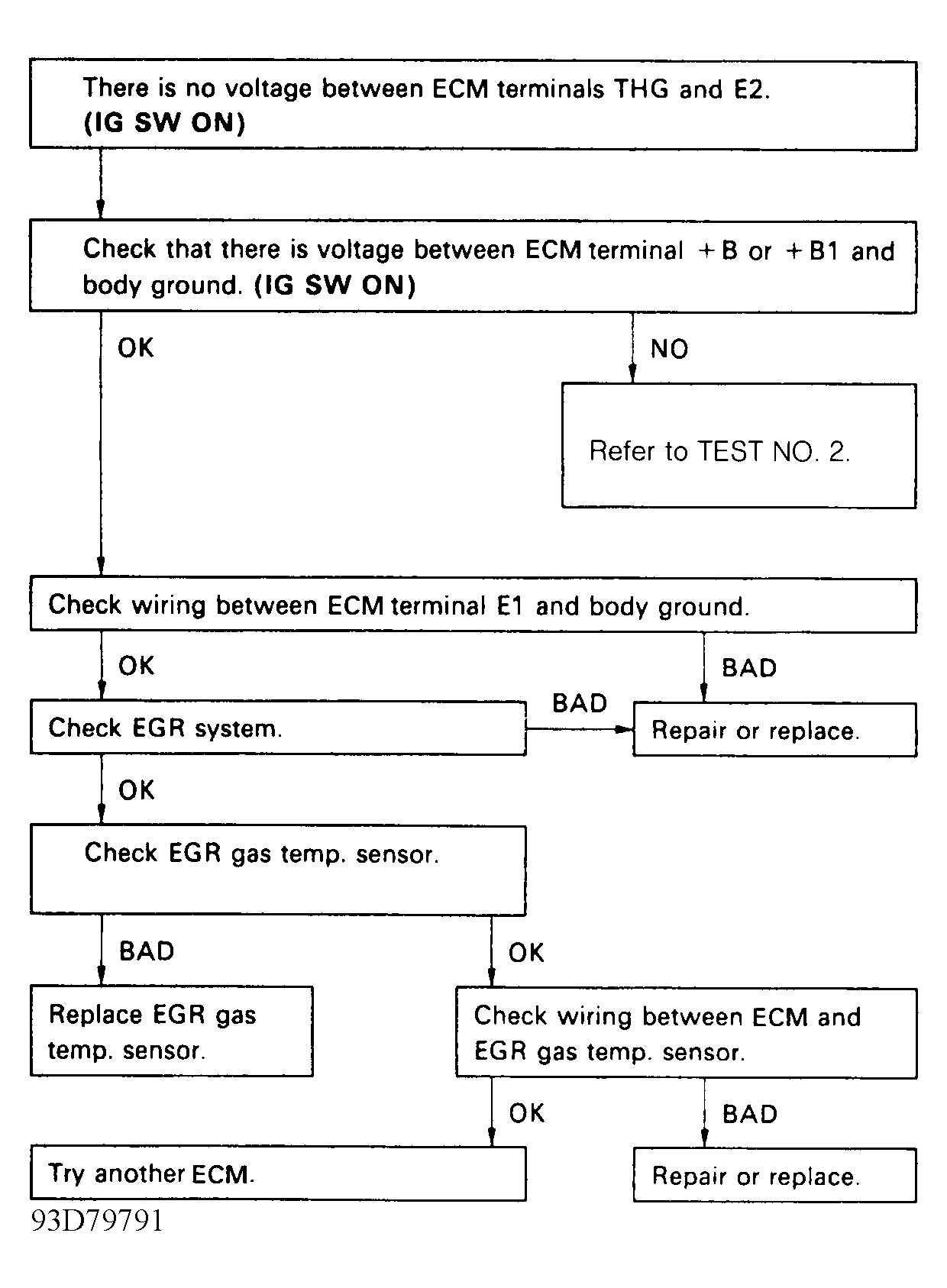

Fig 3: DTC 71 - Diagnostic Flowchart
G93D79791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
