Diagnostic Circuit Check

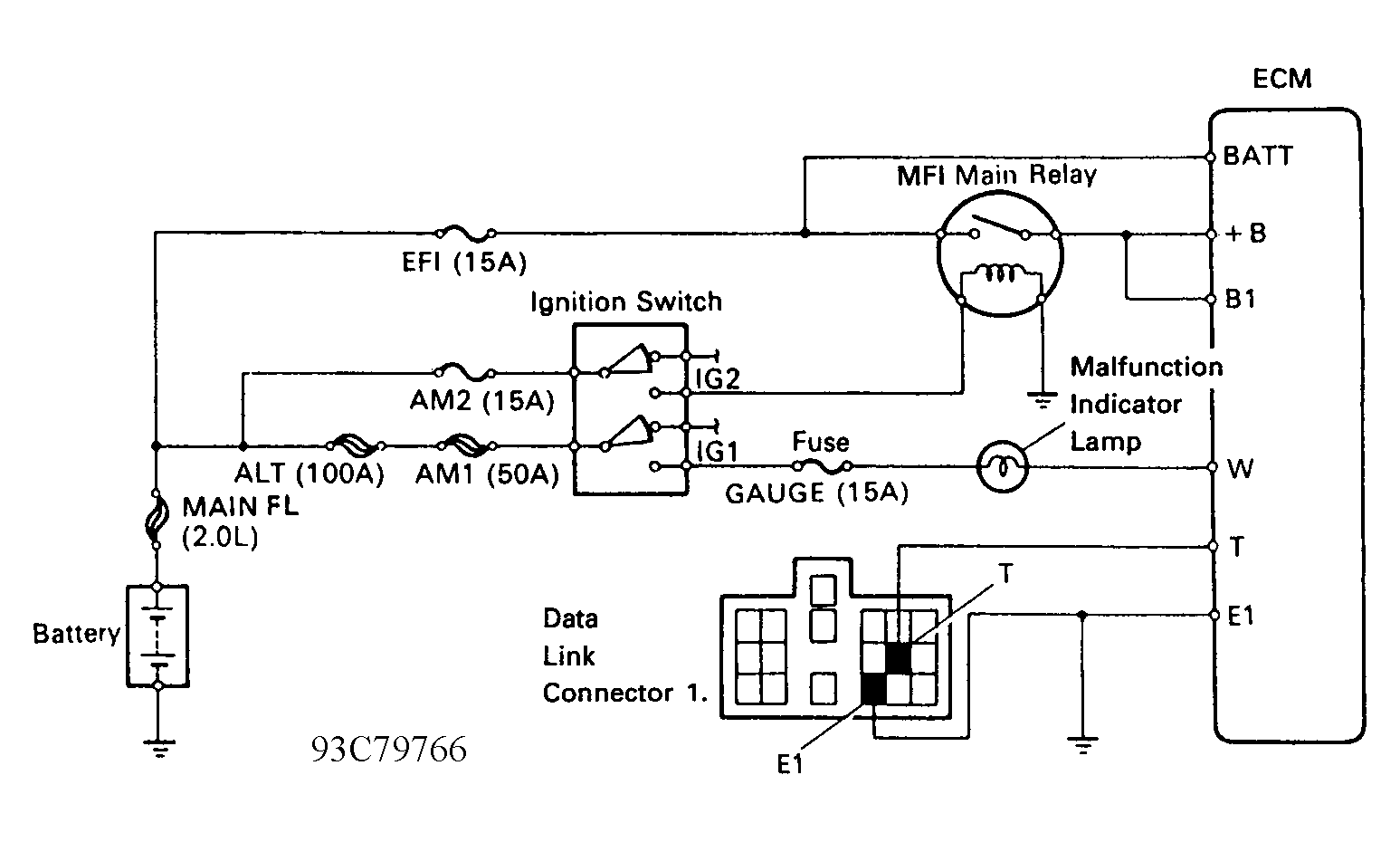

Fig 1: Diagnostic Circuit Check - Schematic
G93C79766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

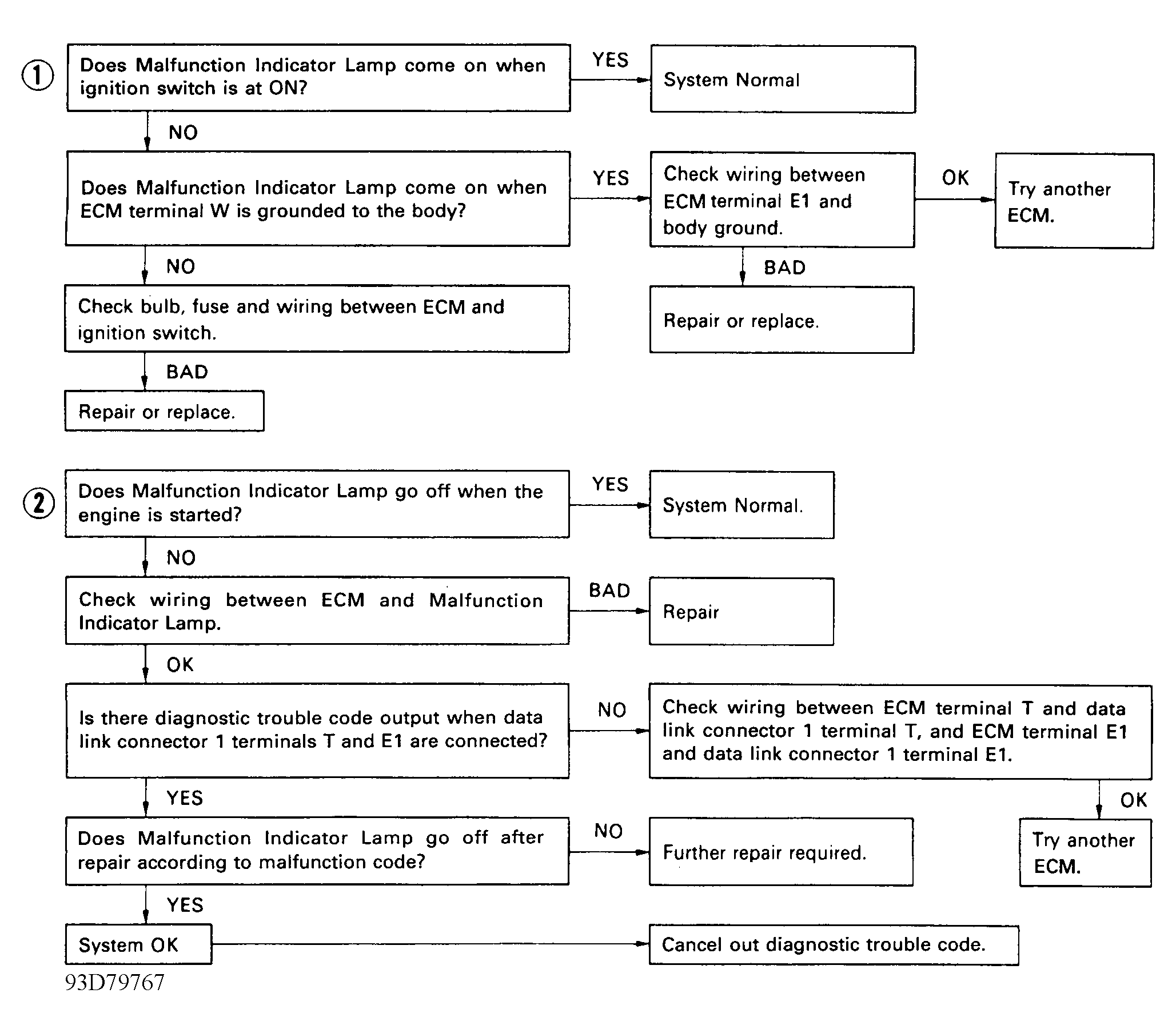

Fig 2: Diagnostic Circuit Check - Diagnostic Flowchart
G93D79767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
