DTC 41 IG Power Source Circuit

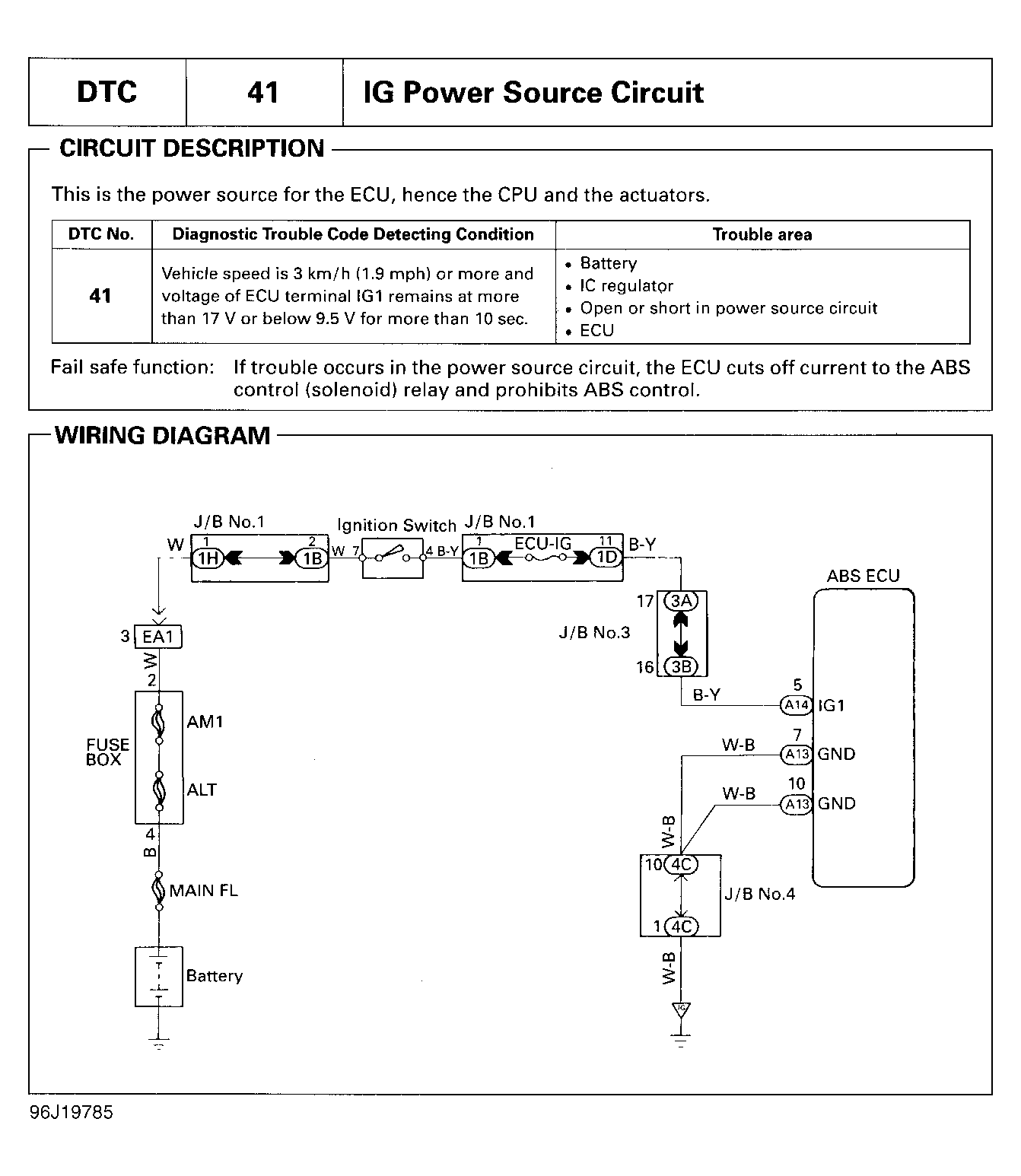

Fig 1: DTC 41 IG POWER SOURCE CIRCUIT CHART (1 OF 3)
G96J19785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

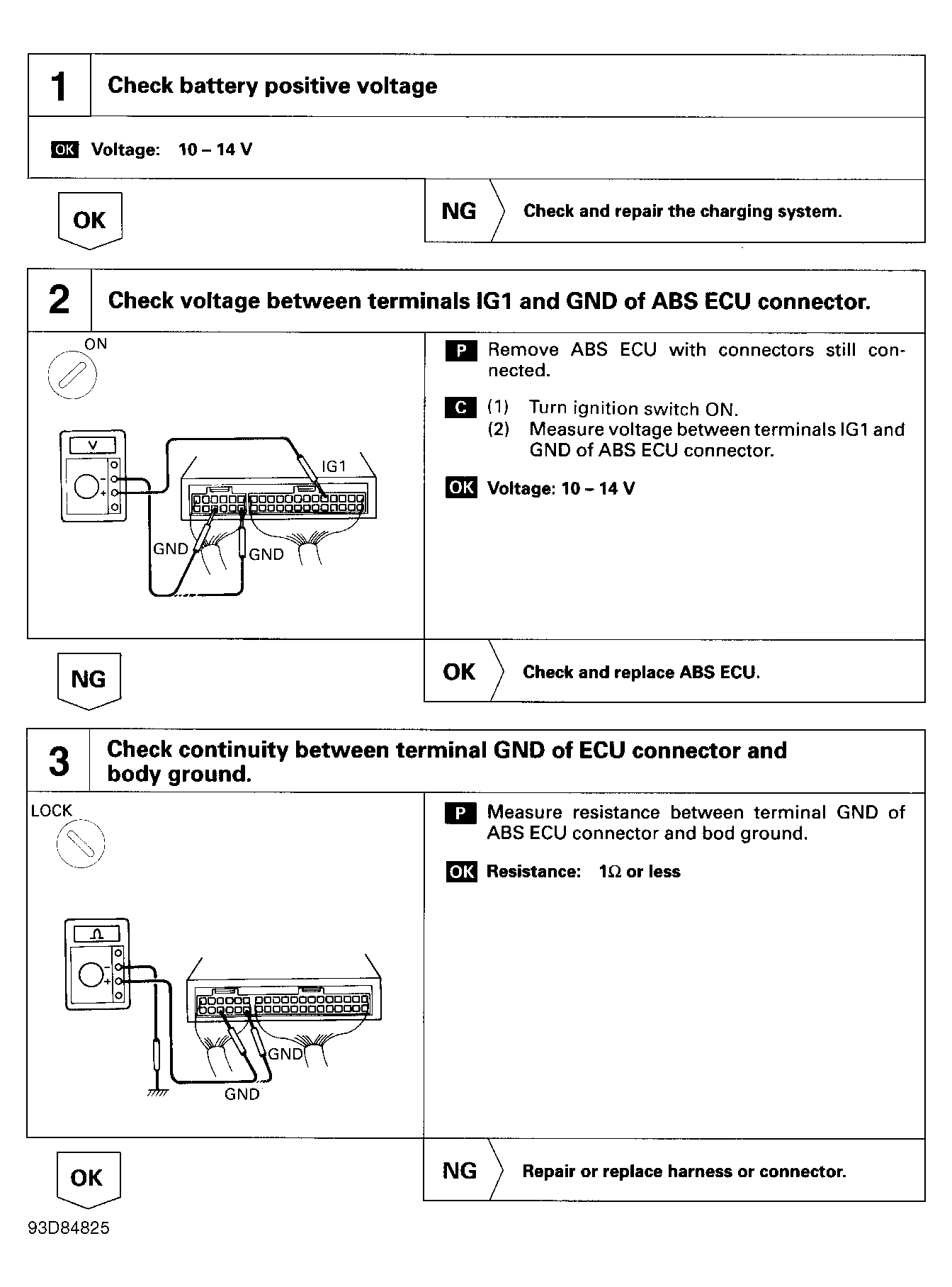

Fig 2: DTC 41 IG POWER SOURCE CIRCUIT CHART (2 OF 3)
G93D84825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

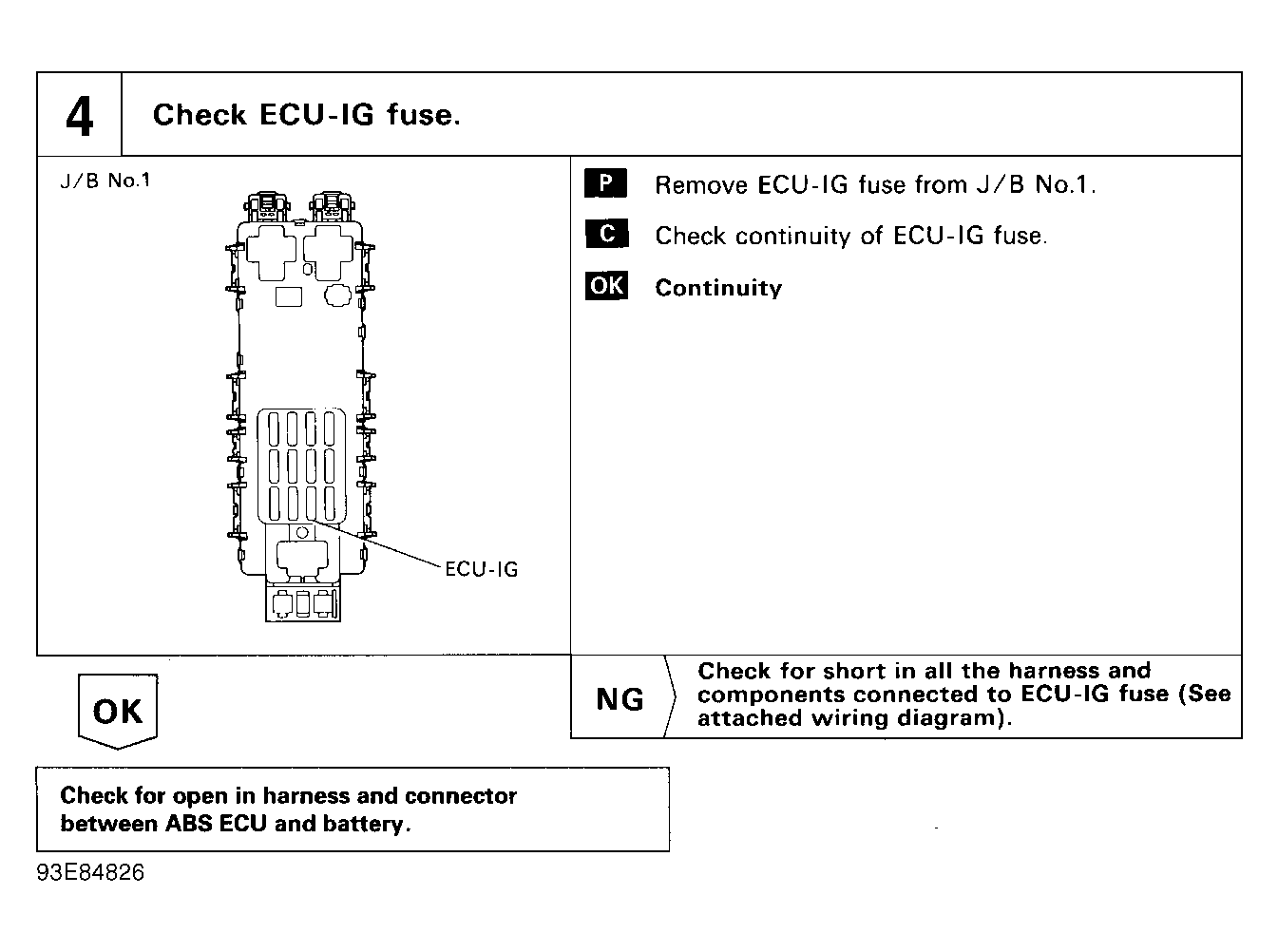

Fig 3: DTC 41 IG POWER SOURCE CIRCUIT CHART (3 OF 3)
G93E84826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
