Component Location

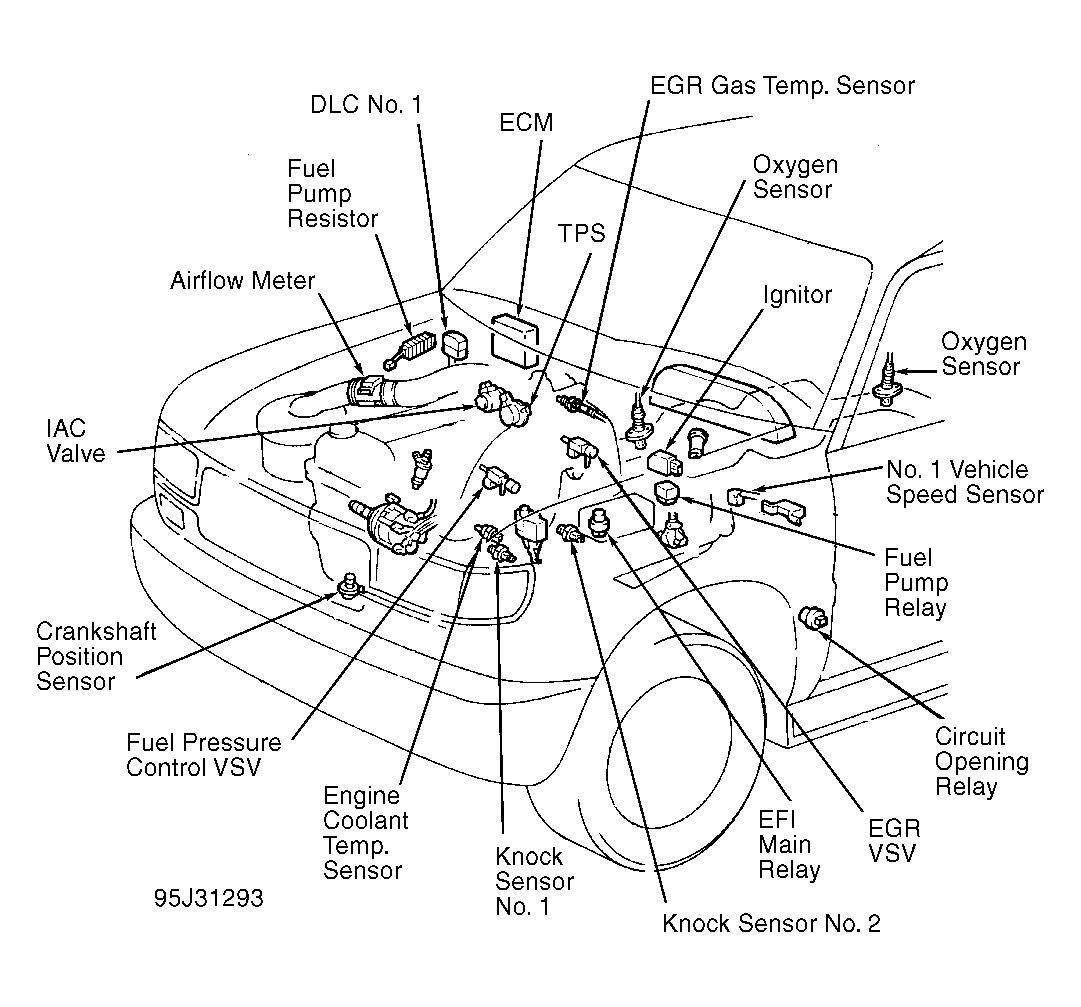

Fig 1: Component Locations
G95J31293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ECM LOCATION

Model Location
Land Cruiser Above Passenger's Side Kick Panel
