Component Location

FUSE APPLICATION

Model	Fuse (Amps)
Paseo	EFI (15)

FUSE/RELAY BOX LOCATION

Application	Location
Paseo	Driver Side, Front Corner Of Engine Compartment

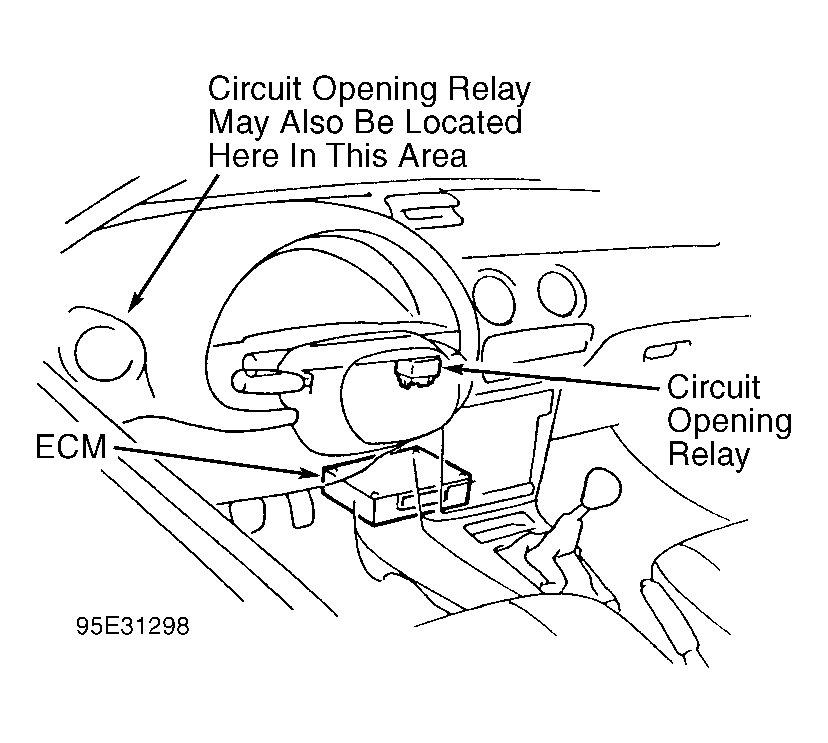

Fig 1: ECM & Circuit Opening Relay Location (All Models)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

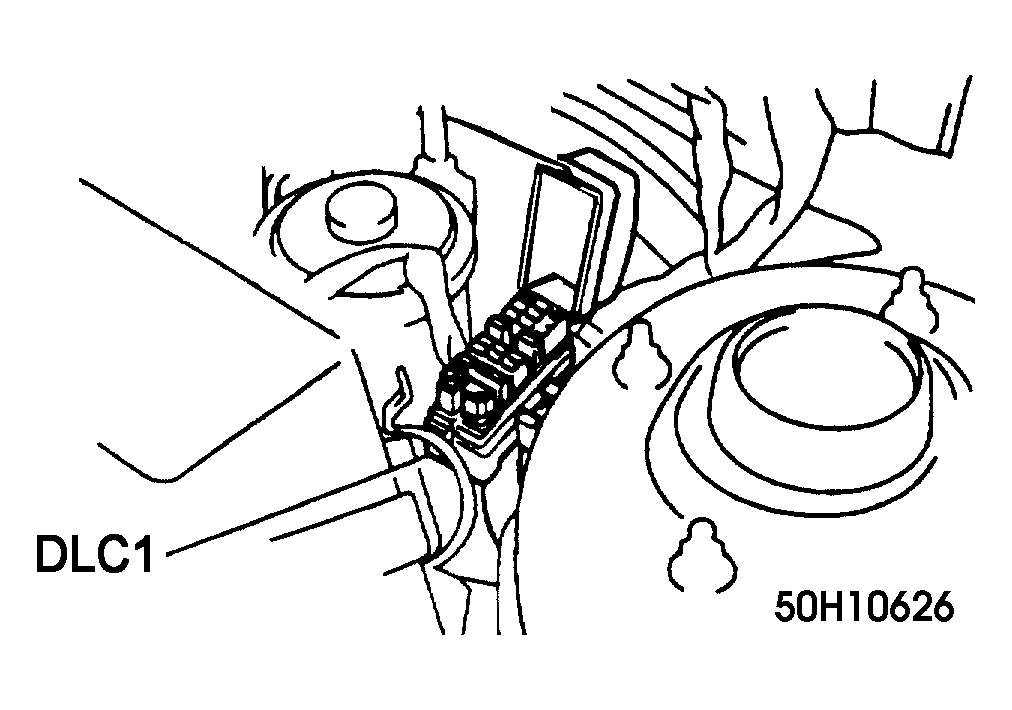

Fig 2: Data Link Connector (DLC) No. 1 Location (All Models)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

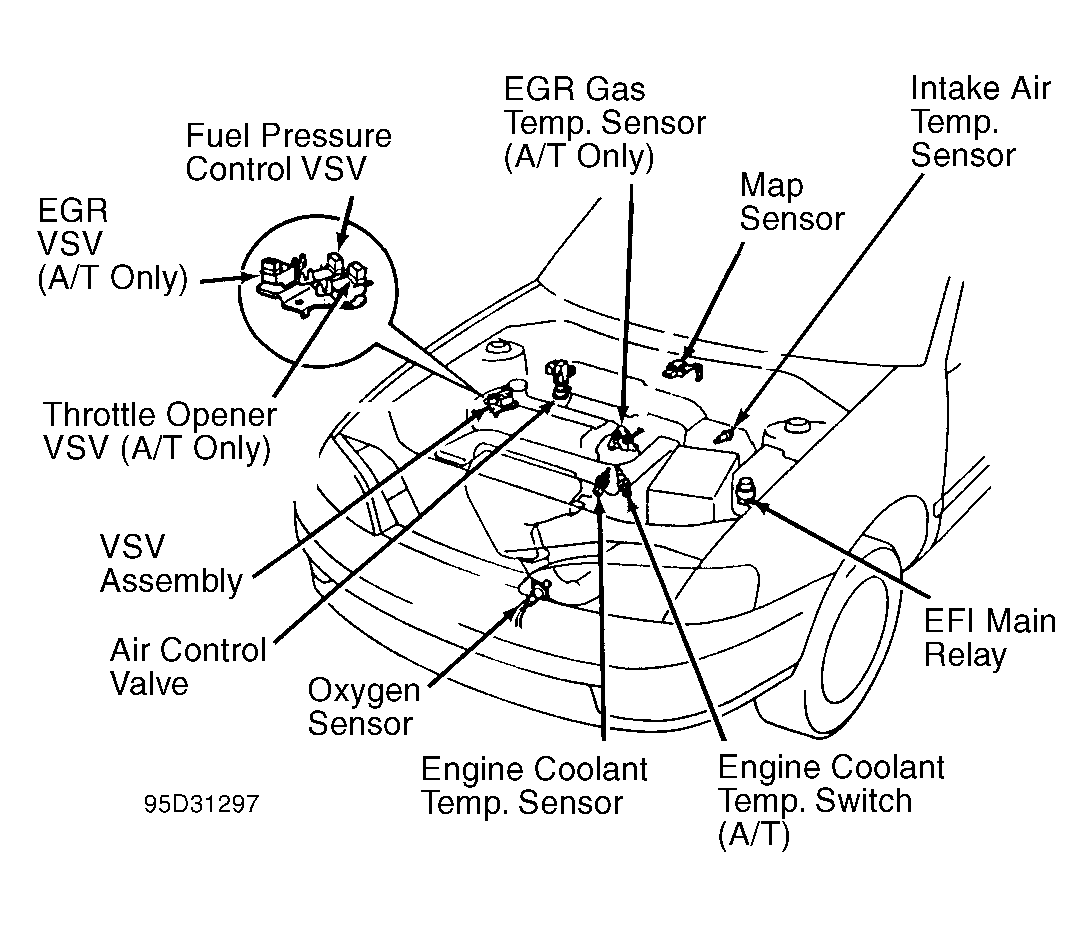

Fig 3: All Other Components Location (Calif.)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

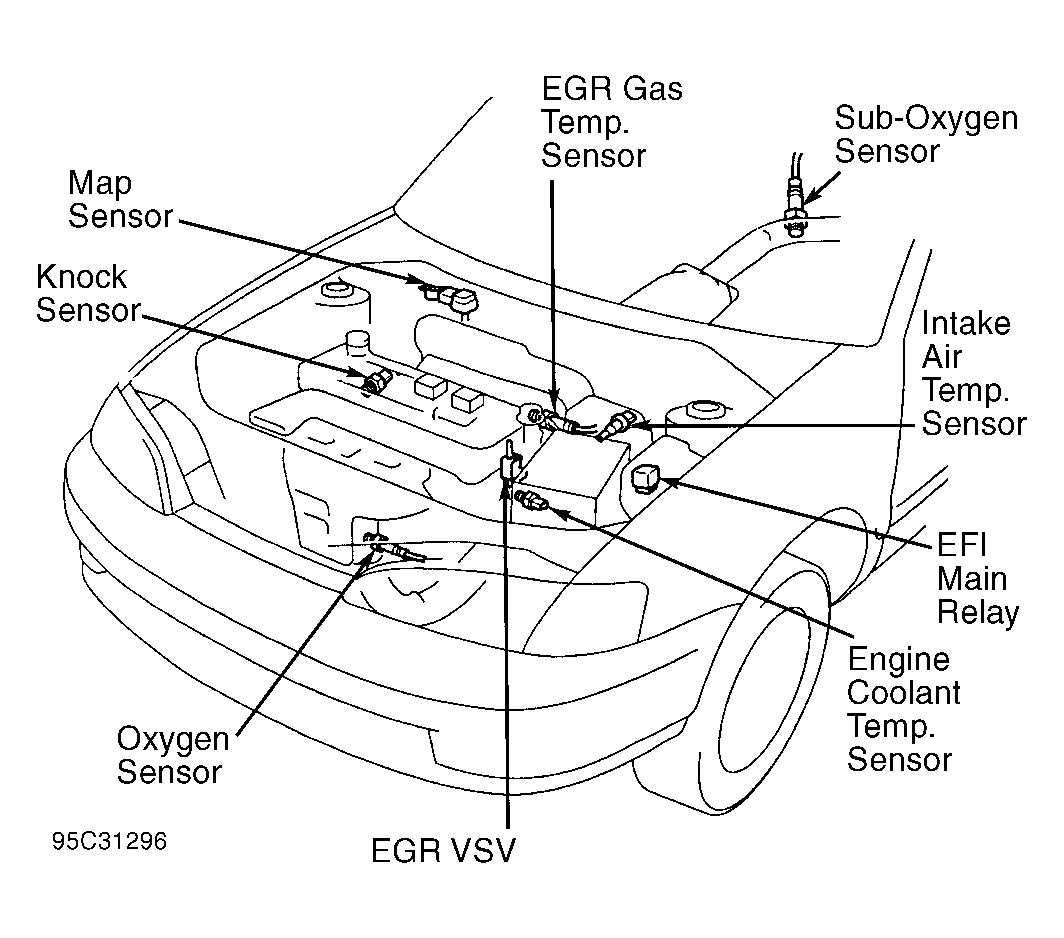

Fig 4: All Other Components Location (Except Calif.)

ECM LOCATION

Model	Location
Paseo	Bottom Center Of Dash, In Front Of Console

DLC NO. 1 LOCATION

Model	Location
Paseo	Side Of Left Front Strut Tower
