PAIR Check Valve

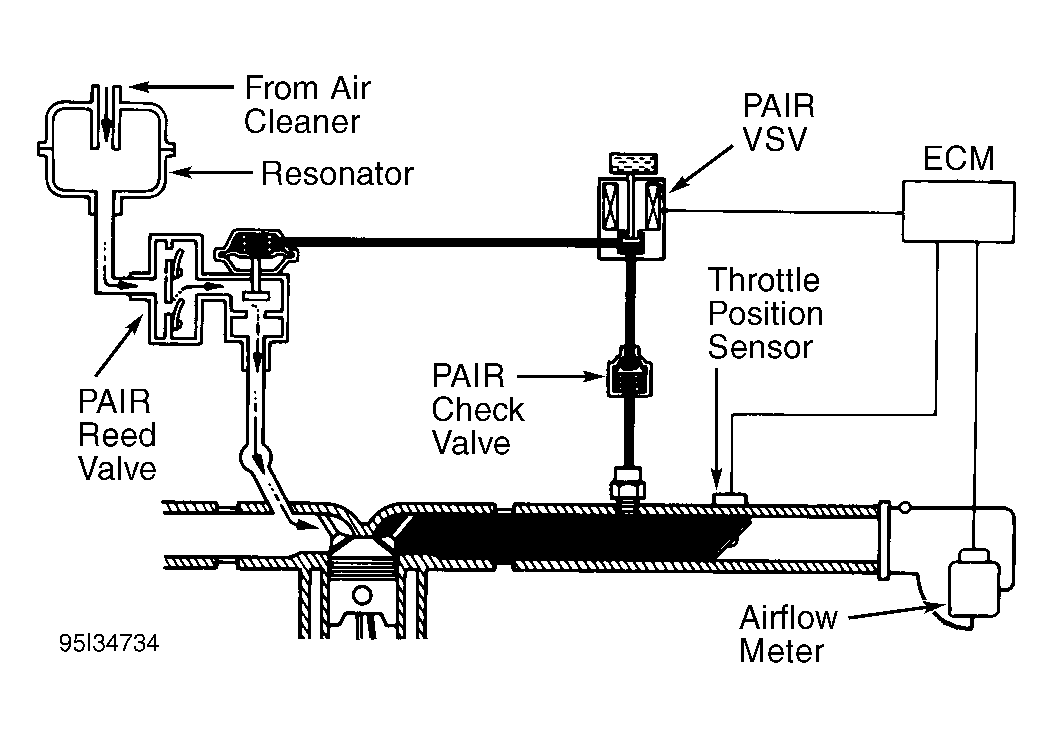

  1. Remove PAIR check valve. See Figure. Apply air pressure to Orange colored side of PAIR check valve. Air should pass through PAIR check valve.
  2. Apply air pressure to Black colored side of PAIR check valve. Air should not pass through PAIR check valve. Replace PAIR check valve if defective. See Figure.
