EFI Main Relay

Ensure ignition is off. Remove EFI main relay. See EFI MAIN RELAY LOCATION table.

NOTE: The EFI main relay may also be identified using appropriate illustration in THEORY/OPERATION - 2.4L article or wire color. See wiring diagram in the WIRING DIAGRAMS article.

EFI MAIN RELAY LOCATION

Application	Location
Pickup	Fuse/Relay Box Near Passenger's Side Front Corner Of Engine Bay

Using ohmmeter, check continuity between specified terminals. See Fig 1.
Check EFI main relay operation by applying battery voltage and ground and checking continuity between specified terminals. See Fig 2. Replace EFI main relay if defective.

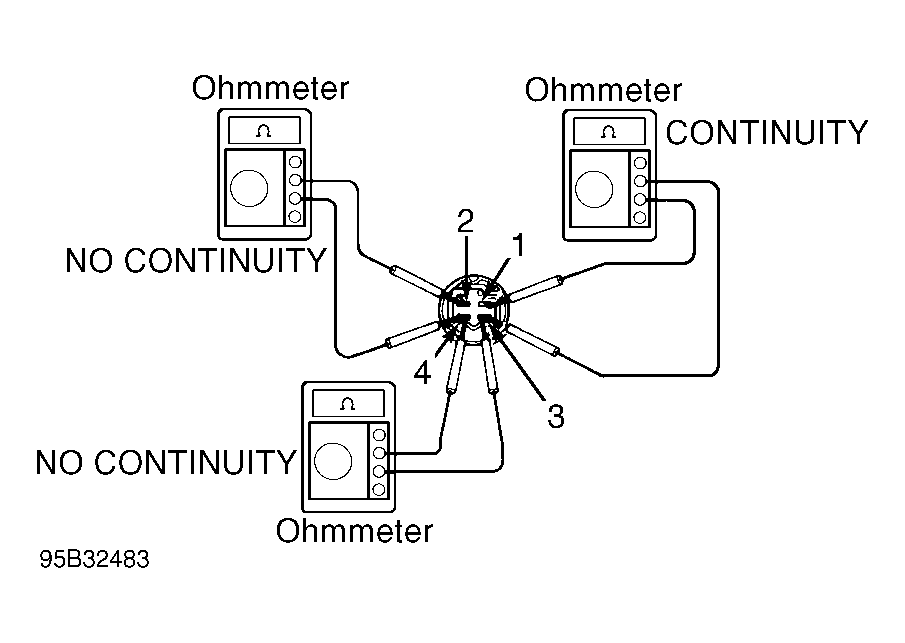

Fig 1: Testing EFI Main Relay (Checking Continuity)

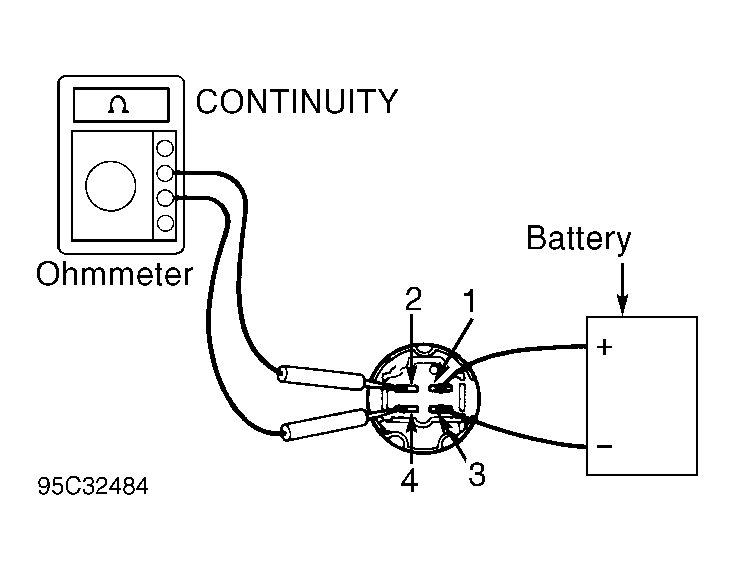

Fig 2: Testing EFI Main Relay (Checking Operation)
