Power & Ground Circuits

For testing of power/ground circuits, see procedures in the PIN VOLTAGE CHART S article. See ECM LOCATION table for identifying ECM mounting locations.

ECM LOCATION

Model	Location
T100	Behind Passenger's Side Kick Panel

NOTE: Fig. Fig 1 or Fig 2 identifies ECM terminals which are used for performing tests on various components in this article.

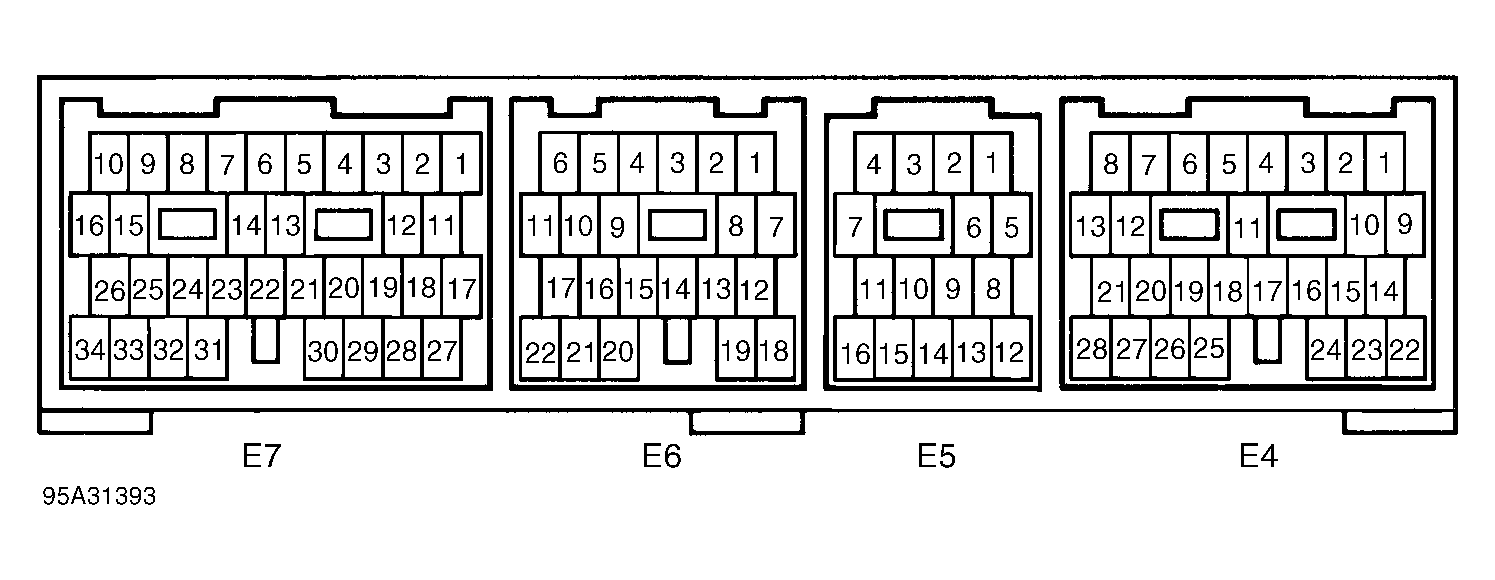

Fig 1: Identifying ECM Terminals (A/T)

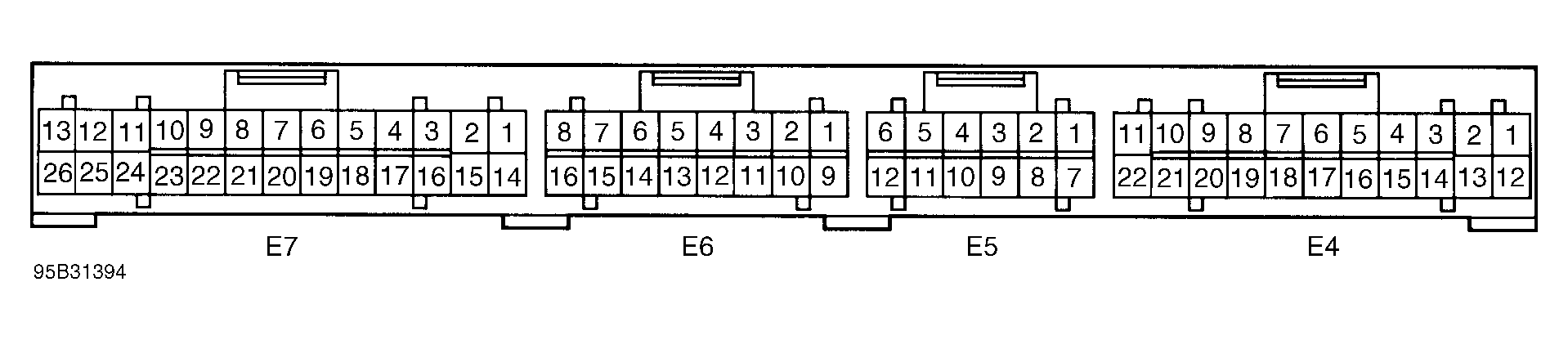

Fig 2: Identifying ECM Terminals (M/T)
