Data Link Connector

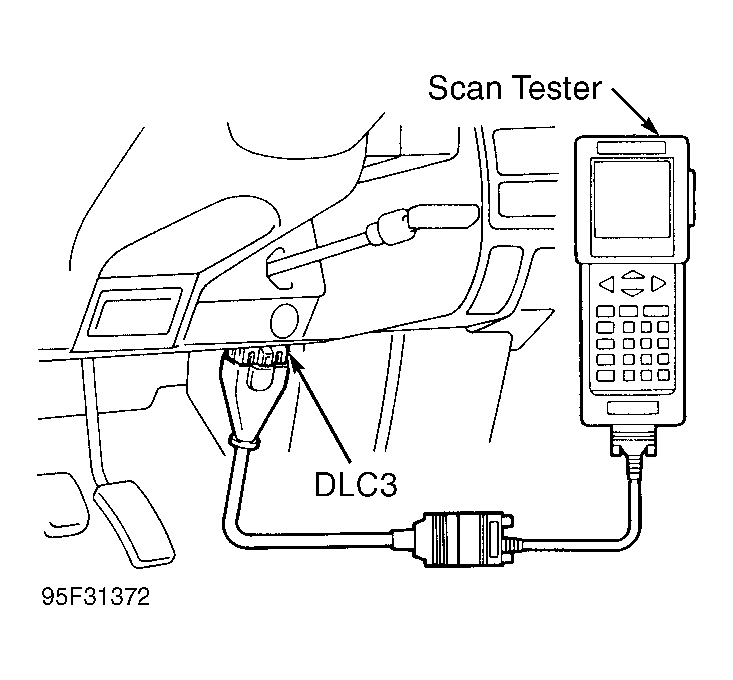

OBD-II regulations (SAE J-1850) standardizes DLC configurations. DLC3 connector is located below parking brake handle. The terminal arrangement of connector complies with SAE J-1962 regulations. See Fig 1.
