Ignition Switch Continuity Test
WARNING:
Deactivate air bag system before performing any service operation. For 1995 Tercel, see AIR BAG RESTRAINT SYSTEM
, for 1996 Tercel, see AIR BAG RESTRAINT SYSTEM
article in ACCESSORIES & EQUIPMENT.

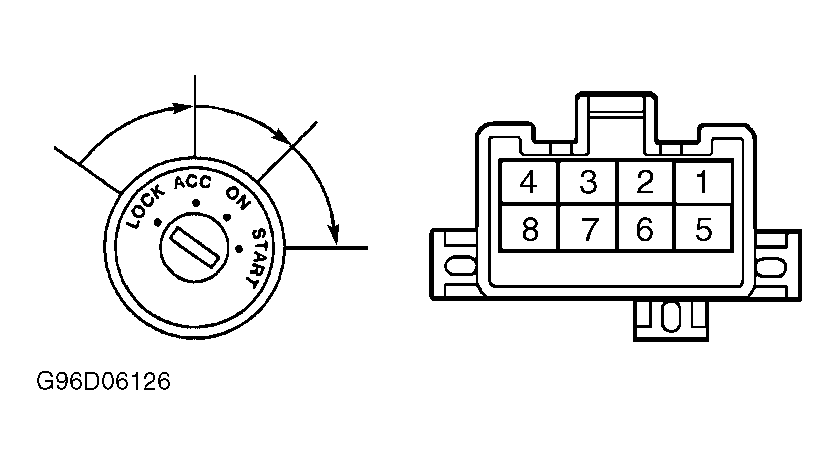

- Disconnect negative battery cable. Remove driver's lower instrument panel cover. Remove upper and lower steering column covers if needed. Locate ignition switch wiring harness 8-pin connector. See Fig 1-Fig 2 .
- With ignition switch in LOCK position, there should be no continuity between any terminals. With ignition switch in ACC position, there should be continuity between terminals No. 2 and 3. With ignition switch in ON position, there should be continuity between terminals No. 2, 3 and 4, and between terminals No. 6 and 7.
- With ignition switch in START position, there should be continuity between terminals No. 1, 2 and 4, and between terminals No. 6, 7 and 8. If continuity is not as specified, replace switch.
