Crankshaft Position Sensor: Installation

To install, reverse removal procedure. Tighten bolts/nuts to specification. See TORQUE SPECIFICATIONS .

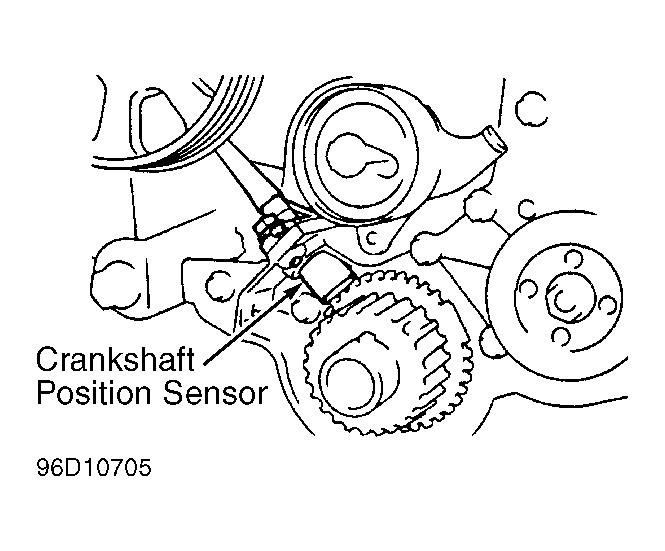

Fig 1: Locating Crankshaft Position Sensor
G96D10705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
