Intake Air Temperature Sensor

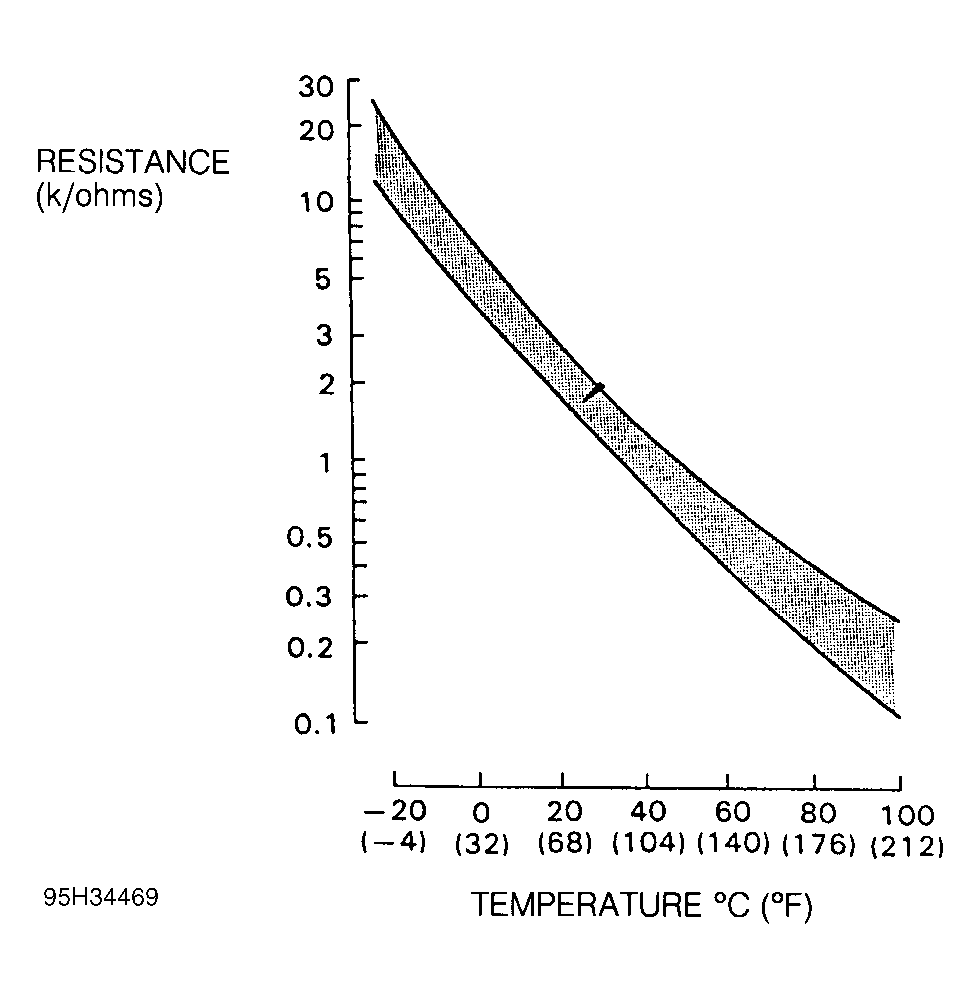

For intake air temperature sensor testing, see the SYSTEM/COMPONENT TESTS article. Measure resistance between intake air temperature sensor electrical terminals. Ensure resistance in within specification in relation to specified temp. See Figure.
