Circuit Opening Relay
- Ensure ignition is off. Remove circuit opening relay. See CIRCUIT OPENING RELAY LOCATION table.NOTE: Circuit opening relay may also be identified using appropriate illustration in the THEORY/OPERATION article or wire color. See wiring diagram in the WIRING DIAGRAMS article.CIRCUIT OPENING RELAY LOCATION

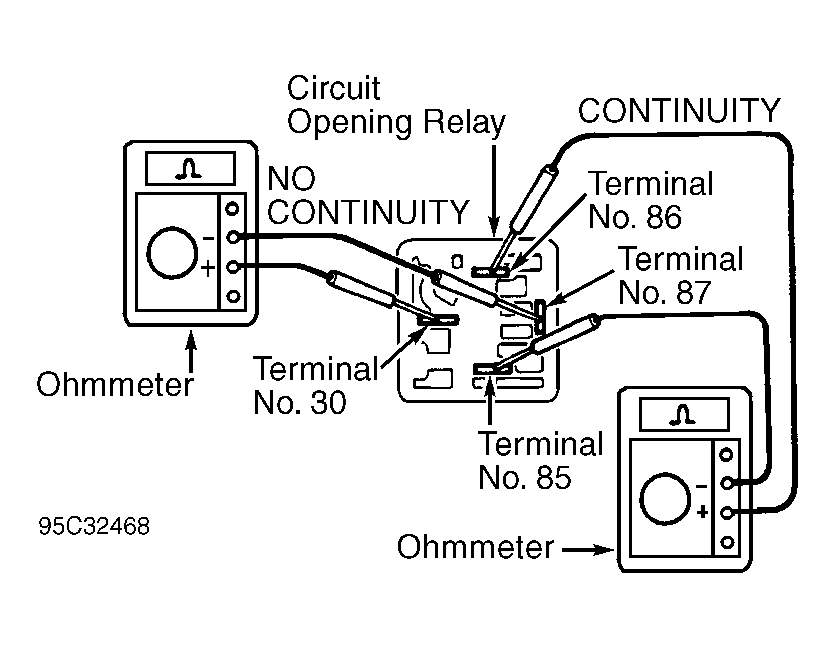

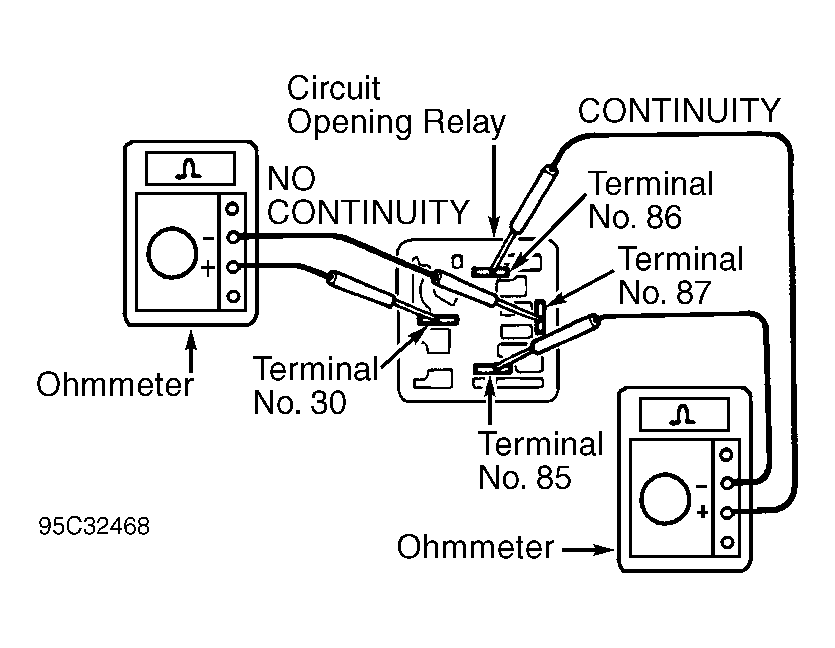

Application Relay Location Tercel Below Dash, Near Driver's Side Of Steering Column - Using ohmmeter, check continuity between specified terminals. See Fig 1.

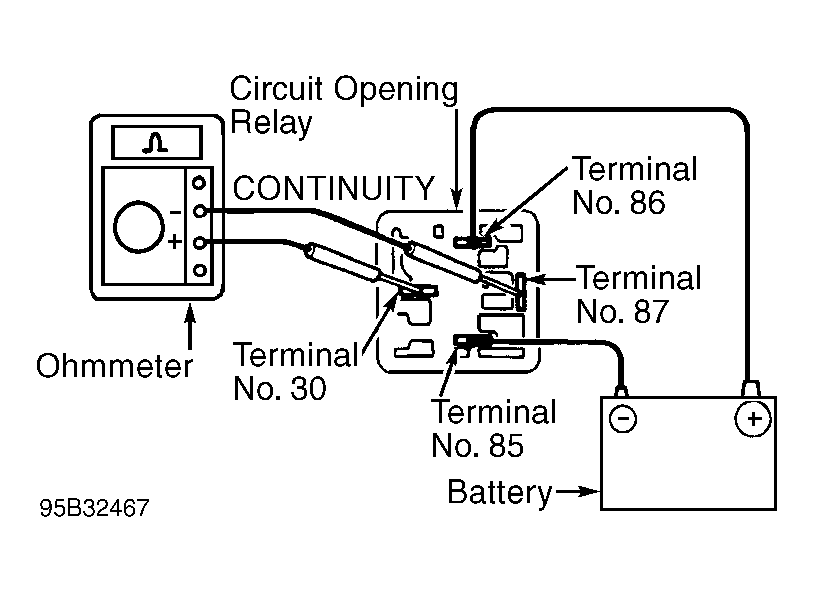

- Check circuit opening relay operation by applying battery voltage and ground and checking continuity between specified terminals. See Fig 2. Replace circuit opening relay if defective.
