Crankshaft Position Sensor

Disconnect electrical connector from crankshaft position sensor, located just above crankshaft pulley. See Fig 1.
Manufacturer recommends removing crankshaft position sensor before checking the resistance. Remove bolt and crankshaft position sensor.
Using ohmmeter, check resistance between electrical terminals on crankshaft position sensor. Replace crankshaft position sensor if resistance is not within specification. See IGNITION SYSTEM CRANKSHAFT POSITION SENSOR RESISTANCE table.
Reinstall crankshaft position sensor. Install and tighten crankshaft position sensor bolt to 71 INCH lbs. (8.0 N.m). Reinstall electrical connector.

IGNITION SYSTEM CRANKSHAFT POSITION SENSOR RESISTANCE

Application

Ohms

Cold ⁽¹⁾

1630-2740

Hot ⁽²⁾

2065-3225

⁽¹⁾	Cold is with temperature of 14-122°F (-10-50°C).

⁽²⁾	Hot is with temperature of 122-212°F (50-100°C).

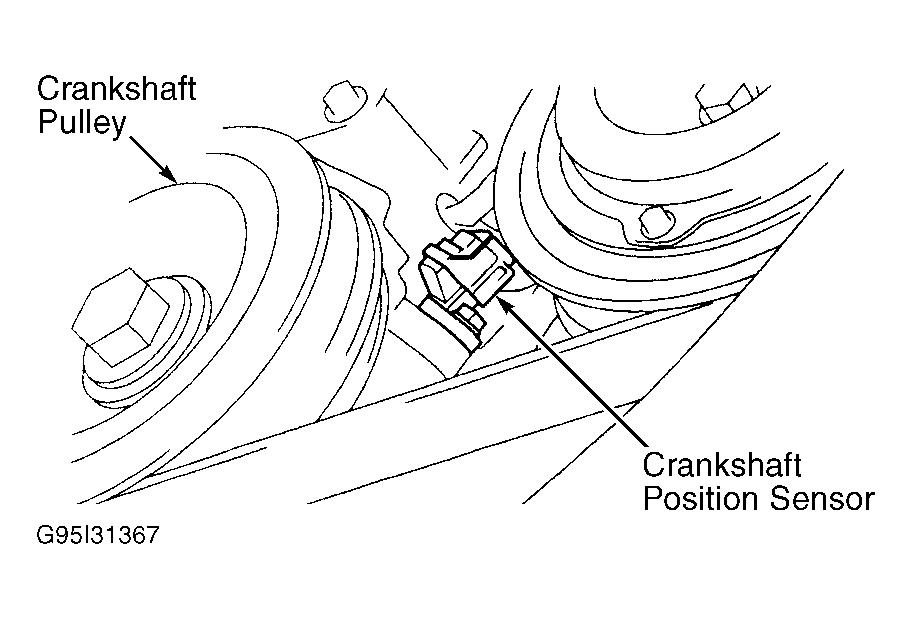

Fig 1: Identifying & Checking Crankshaft Position Sensor
