Ignition Coil: Installation

To install, reverse removal procedure. Tighten bolt to specification. See TORQUE SPECIFICATIONS table.
When installing spark plug wire on ignition coil, ensure spline on ignition coil is aligned with spline on holder and install spark plug wire. Ensure holder is properly positioned on grommet and ignition coil. See Fig 2. Lightly pull upward on holder to ensure lock claw is locked in place.

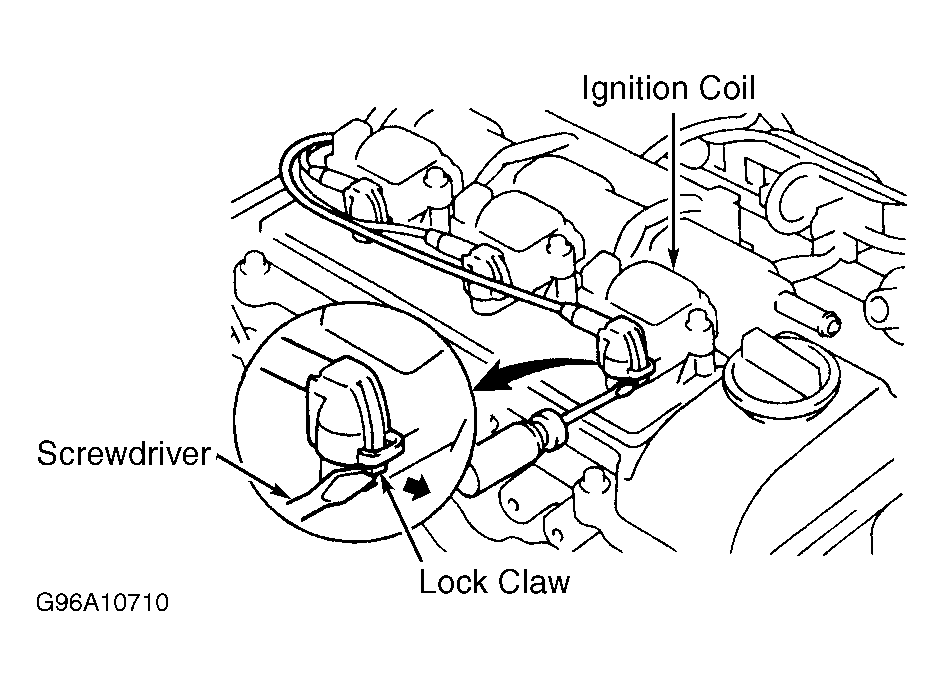

Fig 1: Releasing Lock Claw On Spark Plug Wire

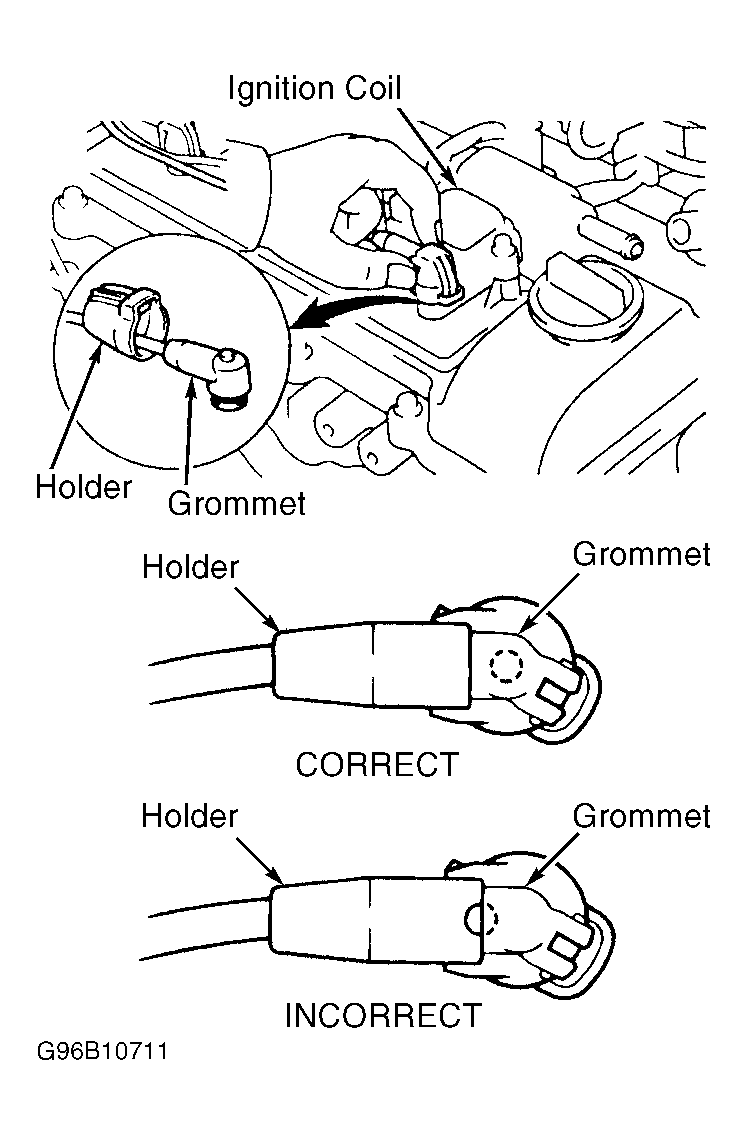

Fig 2: Holder ID, Grommet & Checking Holder, & Grommet Installation
