Crankshaft Position Sensor

Disconnect electrical connector for crankshaft position sensor. Electrical connector is located near oil dipstick. See Fig 1. Crankshaft position sensor is located behind lower timing belt cover, just above crankshaft sprocket.
Using ohmmeter, check resistance between electrical terminals on crankshaft position sensor. Replace crankshaft position sensor if resistance is not within specification. See CRANKSHAFT POSITION SENSOR RESISTANCE table. Reinstall electrical connector.

CRANKSHAFT POSITION SENSOR RESISTANCE

Application

Ohms

Cold ⁽¹⁾

985-1600

Hot ⁽²⁾

1265-1890

⁽¹⁾	Cold is with temperature of 14-122°F (-10-50°C).

⁽²⁾	Hot is with temperature of 122-212°F (50-100°C).

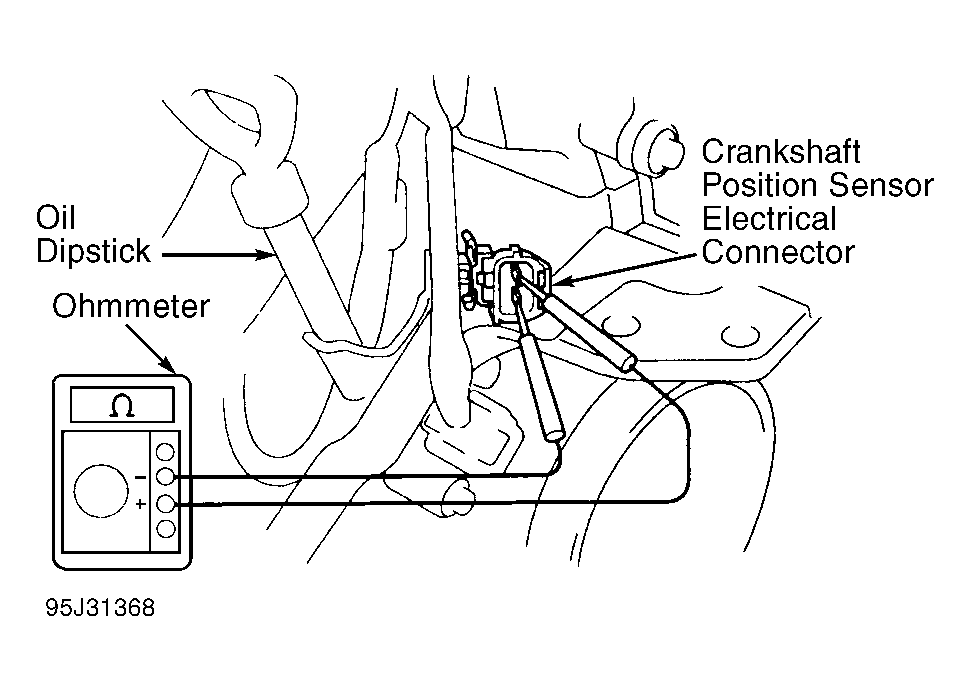

Fig 1: Identifying & Checking Crankshaft Position Sensor
