Knock Sensor
NOTE:
Knock sensor may also be referred to as knock sensor No. 1.

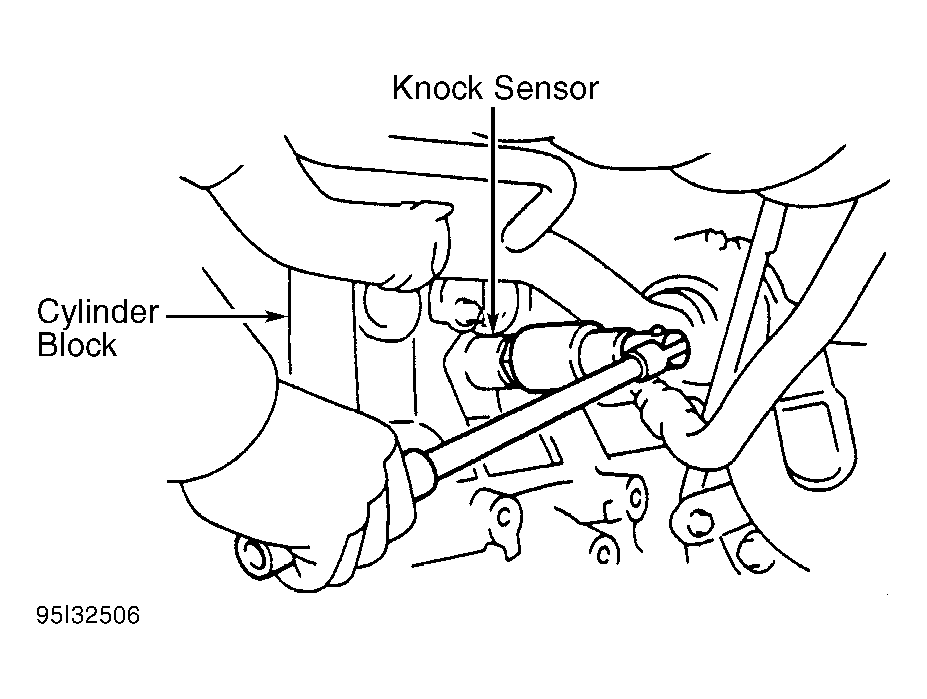

- Knock sensor is located on the cylinder block. See Figure. Remove knock sensor from cylinder block before testing. See REMOVE/INSTALL/OVERHAUL article.
- Using ohmmeter, check that no continuity exists between electrical terminal of knock sensor and body of knock sensor. Replace knock sensor if continuity exists.
