Camshaft Position Sensor

Disconnect electrical connector from camshaft position sensor. Camshaft position sensor is located at driver's side front corner of cylinder head, just in front of the intake manifold. See Fig 1. Using ohmmeter, check resistance between electrical terminals on camshaft position sensor.
Replace camshaft position sensor if resistance is not within specification. See CAMSHAFT POSITION SENSOR RESISTANCE table. Reinstall electrical connector on camshaft position sensor.

CAMSHAFT POSITION SENSOR RESISTANCE

Application

Ohms

Cold ⁽¹⁾

835-1400

Hot ⁽²⁾

1060-1645

⁽¹⁾	Cold is with temperature of 14-122°F (-10-50°C).

⁽²⁾	Hot is with temperature of 122-212°F (50-100°C).

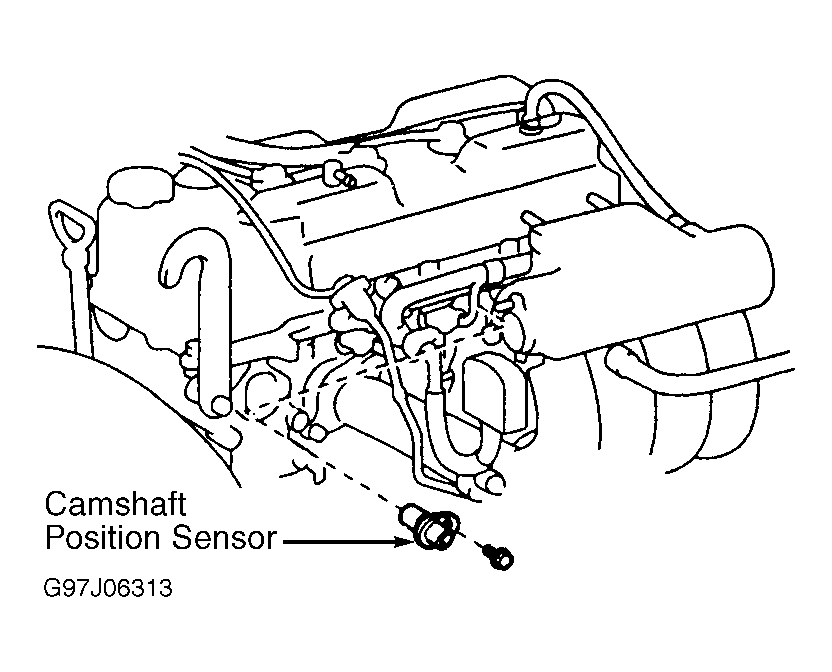

Fig 1: Identifying & Checking Camshaft Position Sensor
