Circuit Opening Relay

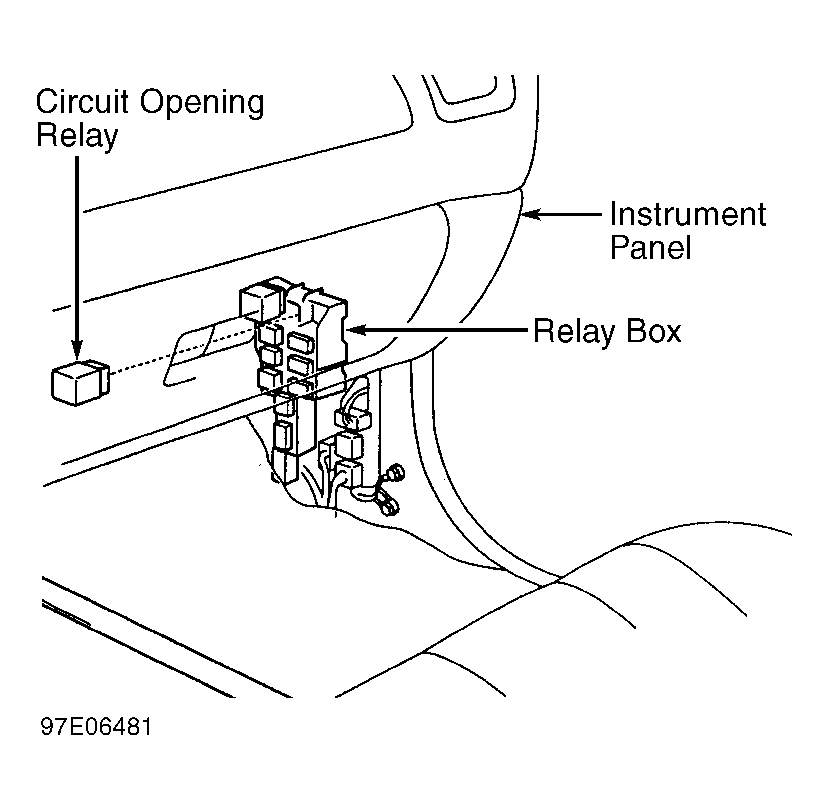

- Ensure ignition is off. Remove circuit opening relay. See CIRCUIT OPENING RELAY LOCATION table. See Fig 1.CIRCUIT OPENING RELAY LOCATION

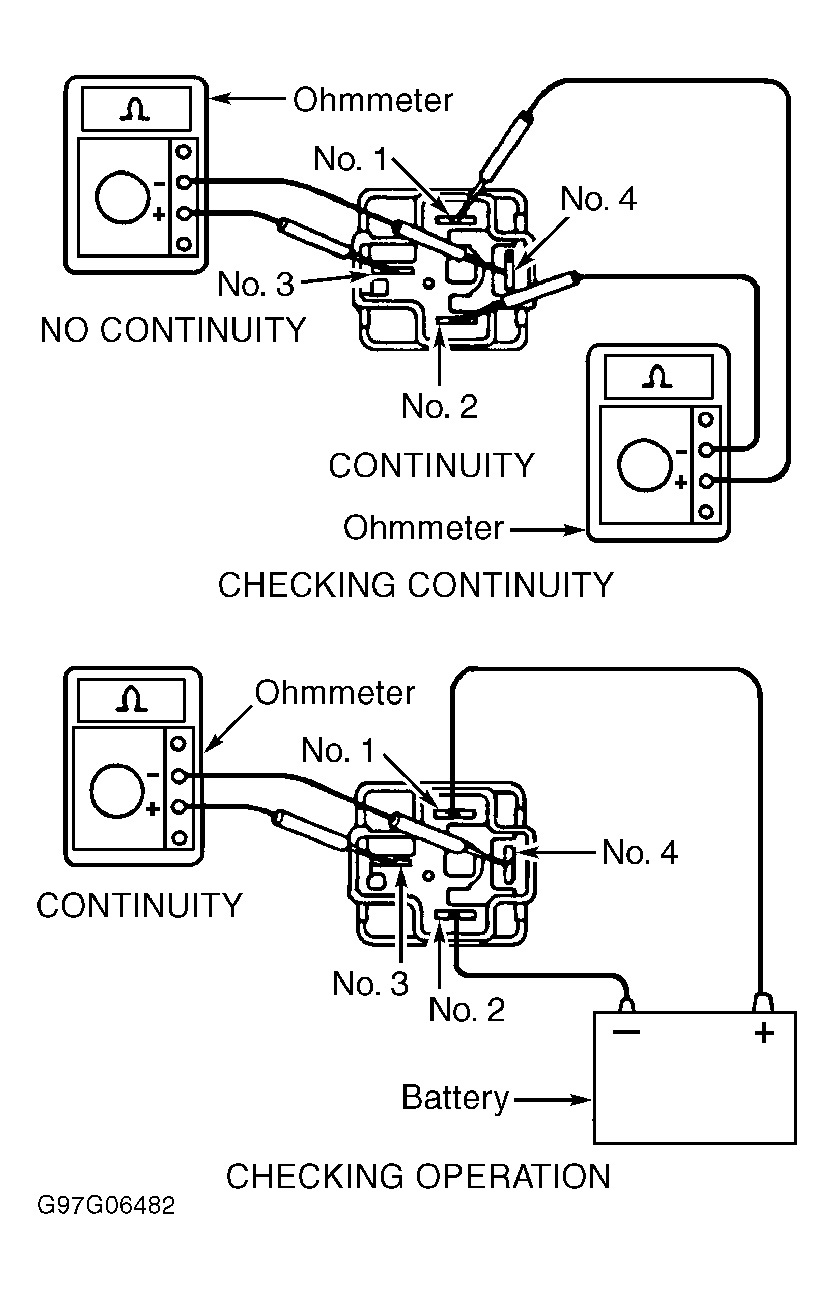

Application Relay Location Avalon Top Rear Corner Of Relay Box Located Behind Passenger's Side Kick Panel - To test circuit opening relay continuity, use ohmmeter to check continuity between specified terminals. See Figure and Figure.

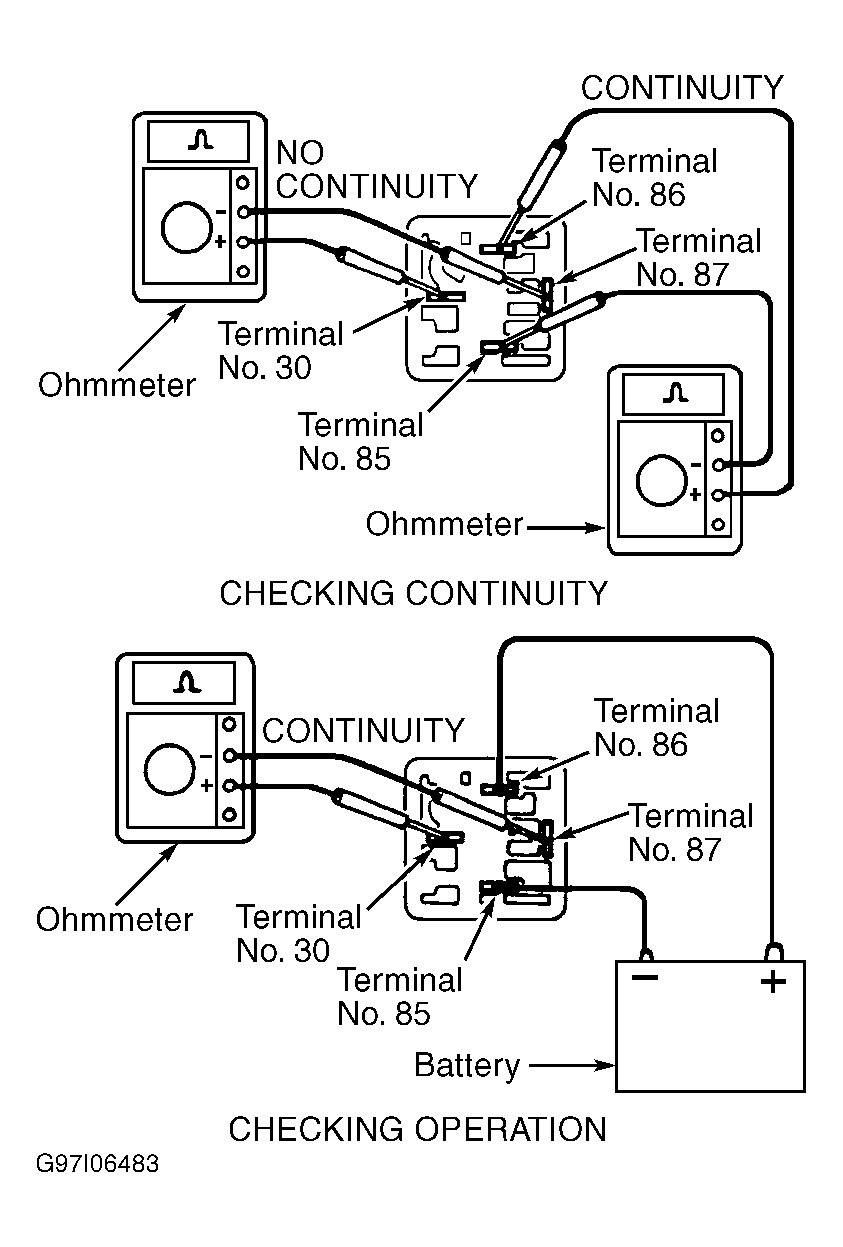

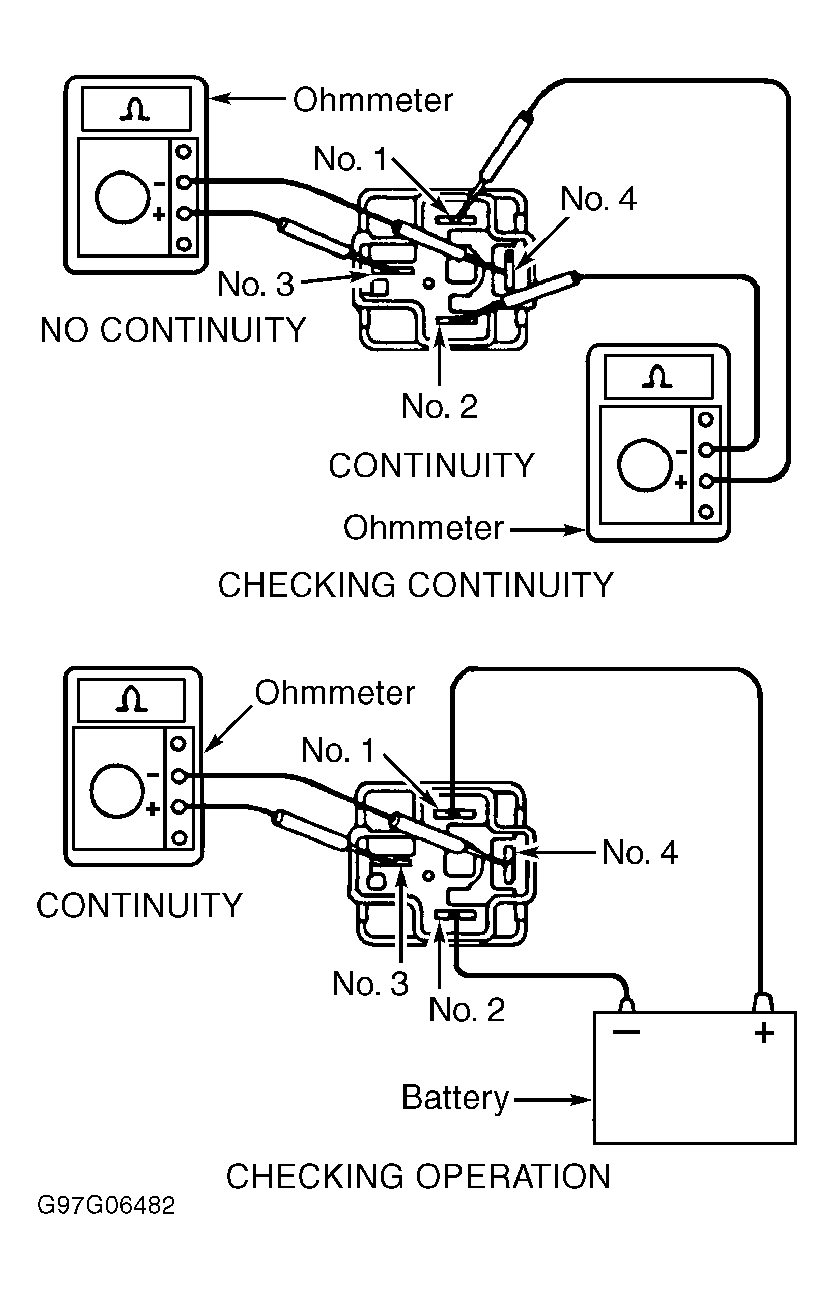

- To test circuit opening relay operation, apply battery voltage and ground to relay and use ohmmeter to check continuity between specified terminals. See Figure and Figure. Replace circuit opening relay if defective.
