Service Point Locations

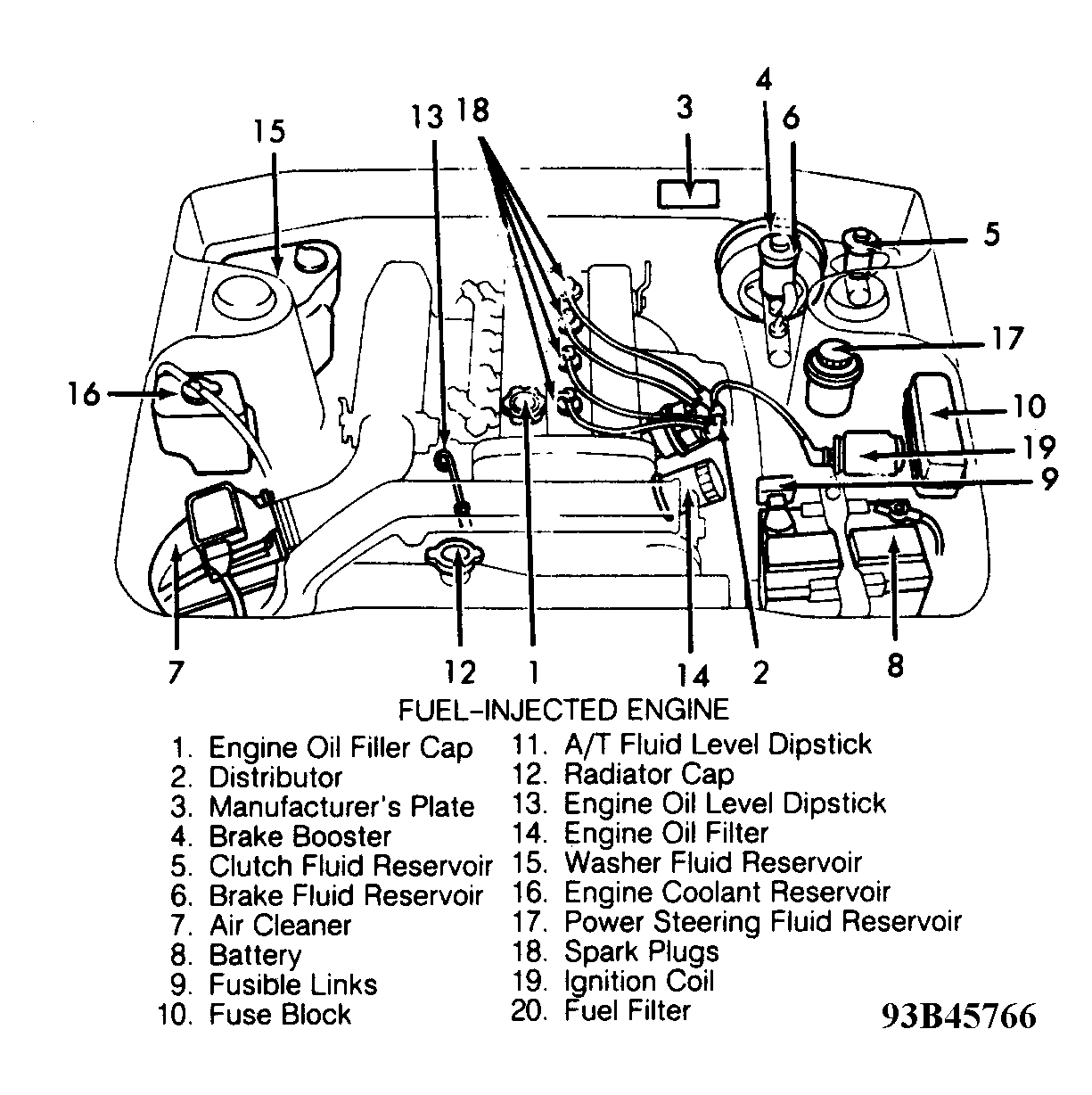

Fig 1: Service Point Locations - 1.6L (1997)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Service Point Locations - 1.8L (1997)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Service Point Locations (1998)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Lift Point Locations
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
