Vehicle Speed Sensor

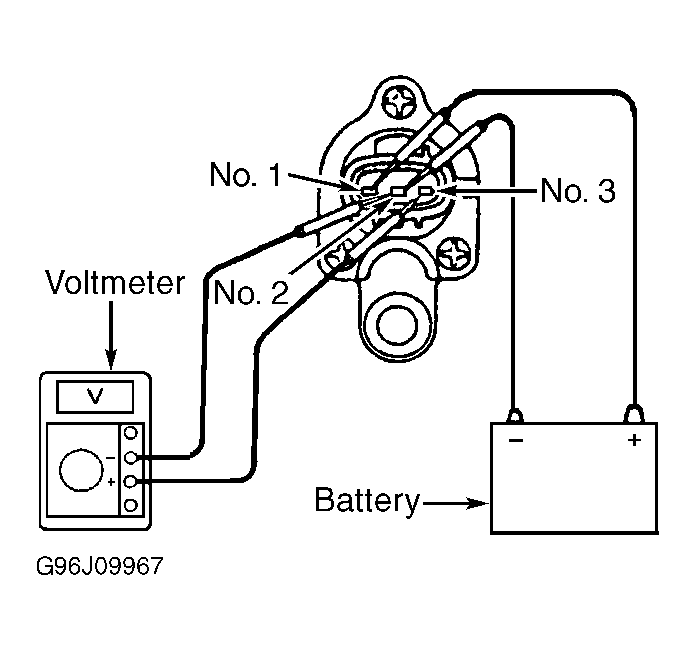

- Vehicle speed sensor is mounted on transmission/transaxle and contains a 3-pin electrical connector. Connect voltmeter and battery voltage and ground on electrical terminals of vehicle speed sensor. See Fig 1.
- While rotating vehicle speed sensor shaft, ensure voltage changes from zero volts to at least 11 volts. Voltage should change 4 times per revolution of the shaft. Replace vehicle speed sensor if voltage does not change as specified. Remove test equipment.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
