Circuit Opening Relay

  1. Ensure ignition is off. Remove circuit opening relay. See CIRCUIT OPENING RELAY LOCATION  table. See Fig 1.
    CIRCUIT OPENING RELAY LOCATION

    Application Relay Location
    2.7L Behind Glove Box, Near Passenger's Side Kick Panel
  2. To check circuit opening relay continuity, use ohmmeter to check continuity between specified terminals. See Fig 2.
  3. To check circuit opening relay operation, apply battery voltage and ground to relay and use ohmmeter to check continuity between specified terminals. See Fig 2. Replace circuit opening relay if defective.

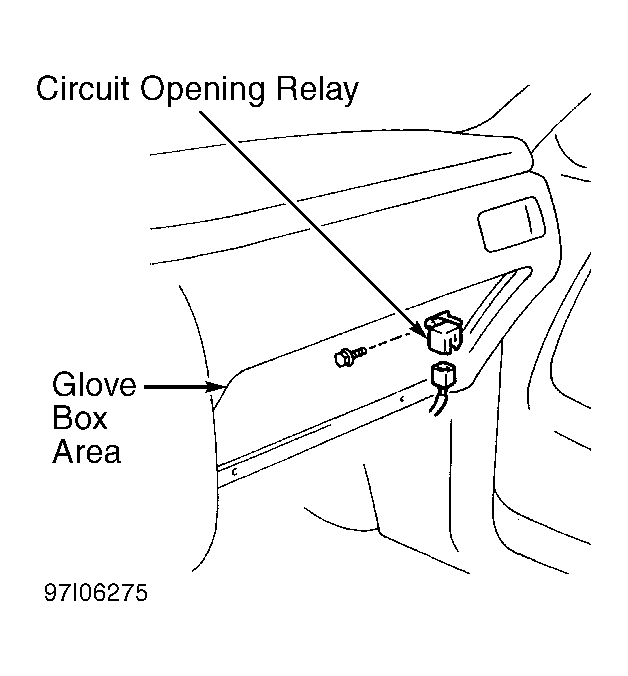

Fig 1: Locating Circuit Opening Relay Or EFI Main Relay
G97I06275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

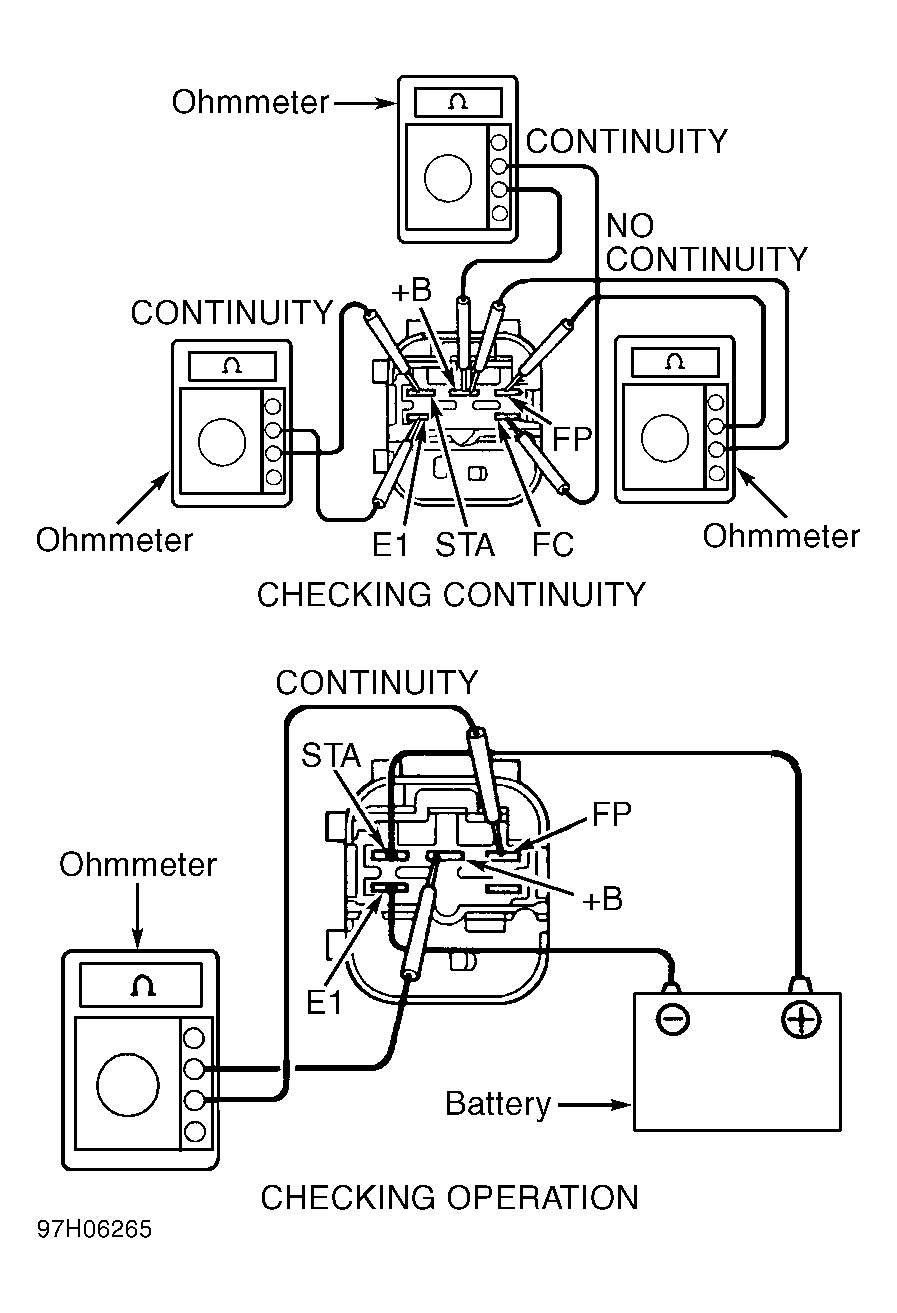

Fig 2: Testing Circuit Opening Relay
G97H06265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
