Door Key Lock & Unlock Switch

NOTE: Procedure applies only to door key lock and unlock switch on driver's and passenger's doors. For testing of rear (luggage compartment) door key lock and unlock switch, see REAR (LUGGAGE COMPARTMENT) DOOR KEY LOCK & UNLOCK SWITCH .

Remove door trim panel and service hole cover. Disconnect electrical connector for door key lock and unlock switch. See Figure.
Using DVOM, check that continuity is as specified between indicated terminals in relation to specified switch position by using the door lock switch on the door. See Fig 1. Also see DOOR KEY LOCK & UNLOCK SWITCH CONTINUITY table. Replace door key lock and unlock switch if defective.

DOOR KEY LOCK & UNLOCK SWITCH CONTINUITY

Switch Position

Terminals No.

Specification

LOCK

2 & 3

Continuity

OFF

⁽¹⁾

UNLOCK

1 & 3

Continuity

⁽¹⁾	There should be no continuity between any terminals.

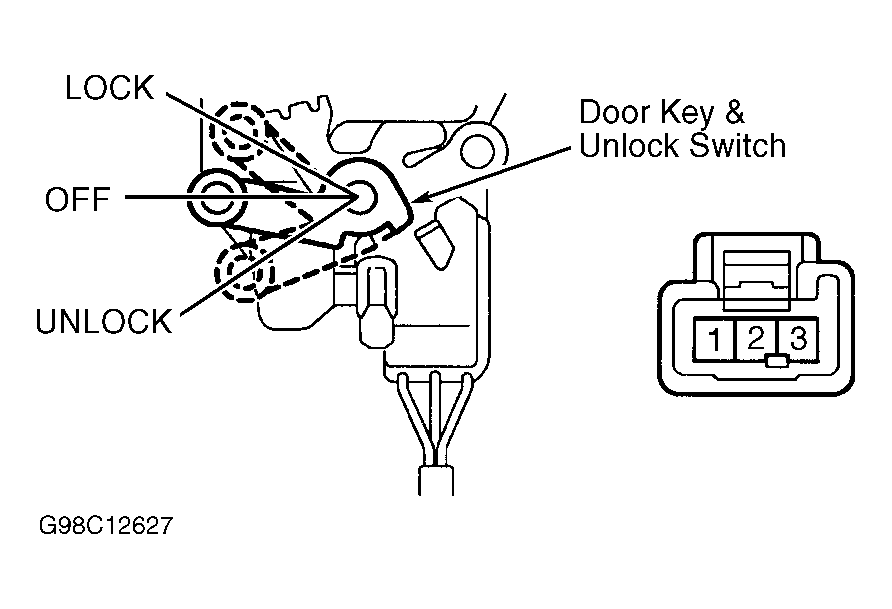

Fig 1: Door Key Lock & Unlock Switch Terminals & Positions
