Power Main Relay
NOTE:
Power main relay may also be referred to as power relay.

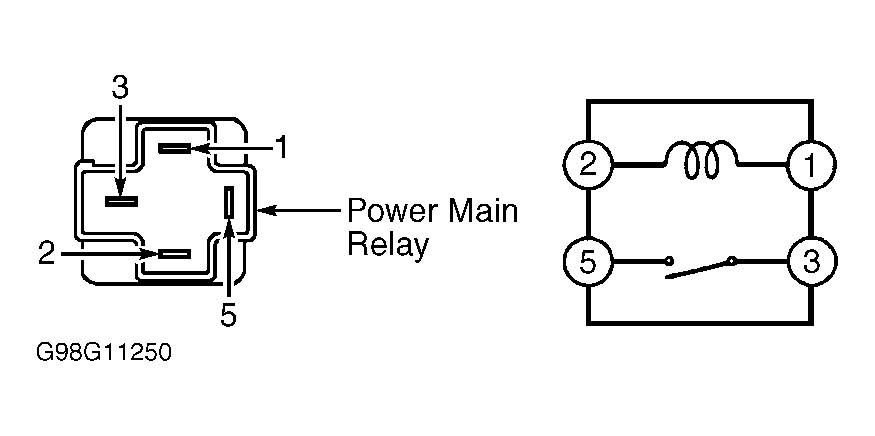

Remove power main relay. Check continuity between power main relay terminals No. 1 and 2. See Fig 1. Continuity should exist. Using jumper wires, apply battery voltage between terminals 1 and 2. Check continuity between terminals No. 3 and 5. Continuity should exist while battery voltage is applied. Continuity should not exist when battery voltage is removed. If continuity is not as specified, replace power main relay.
