Test 6: Key Unlock Warning Switch Circuit

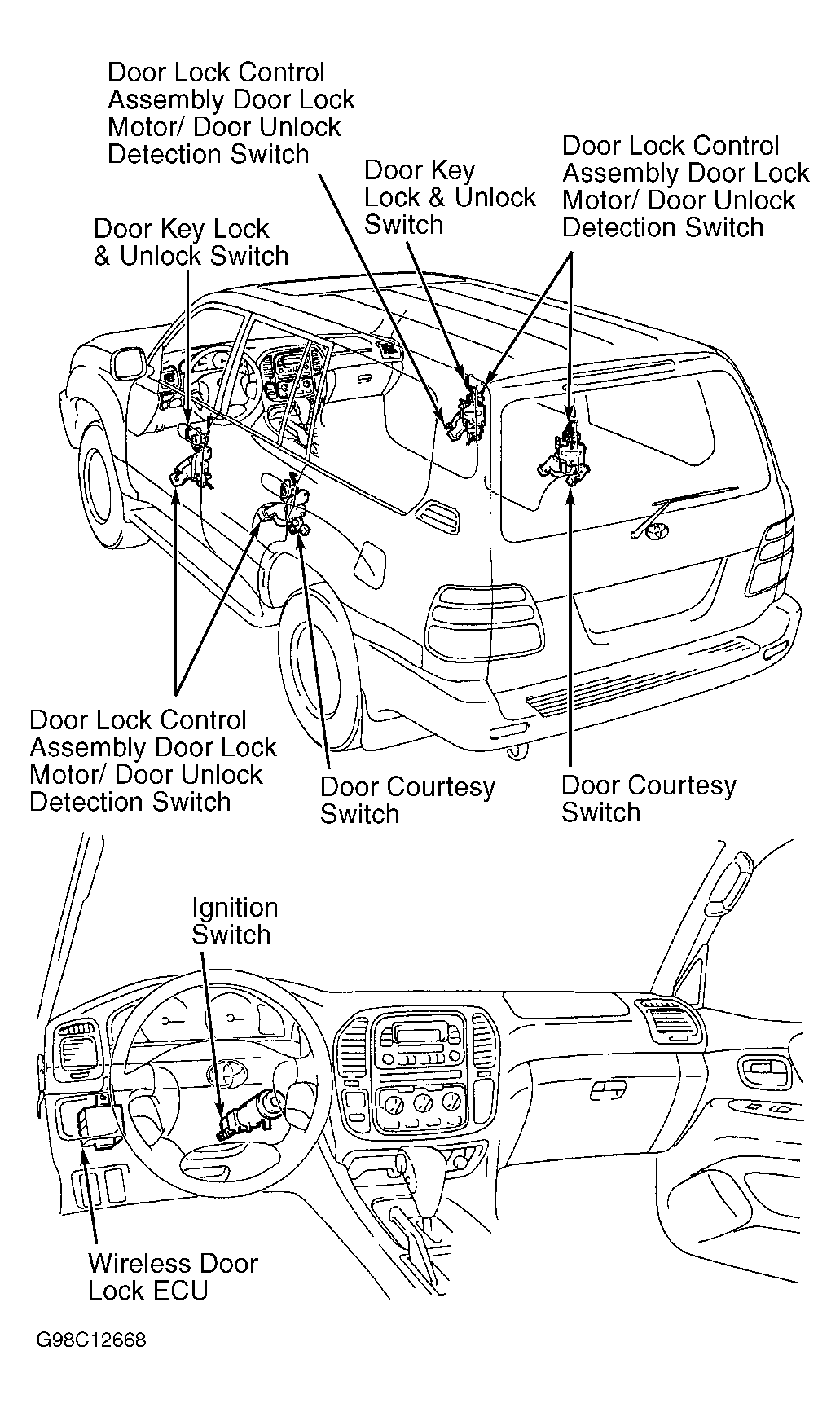

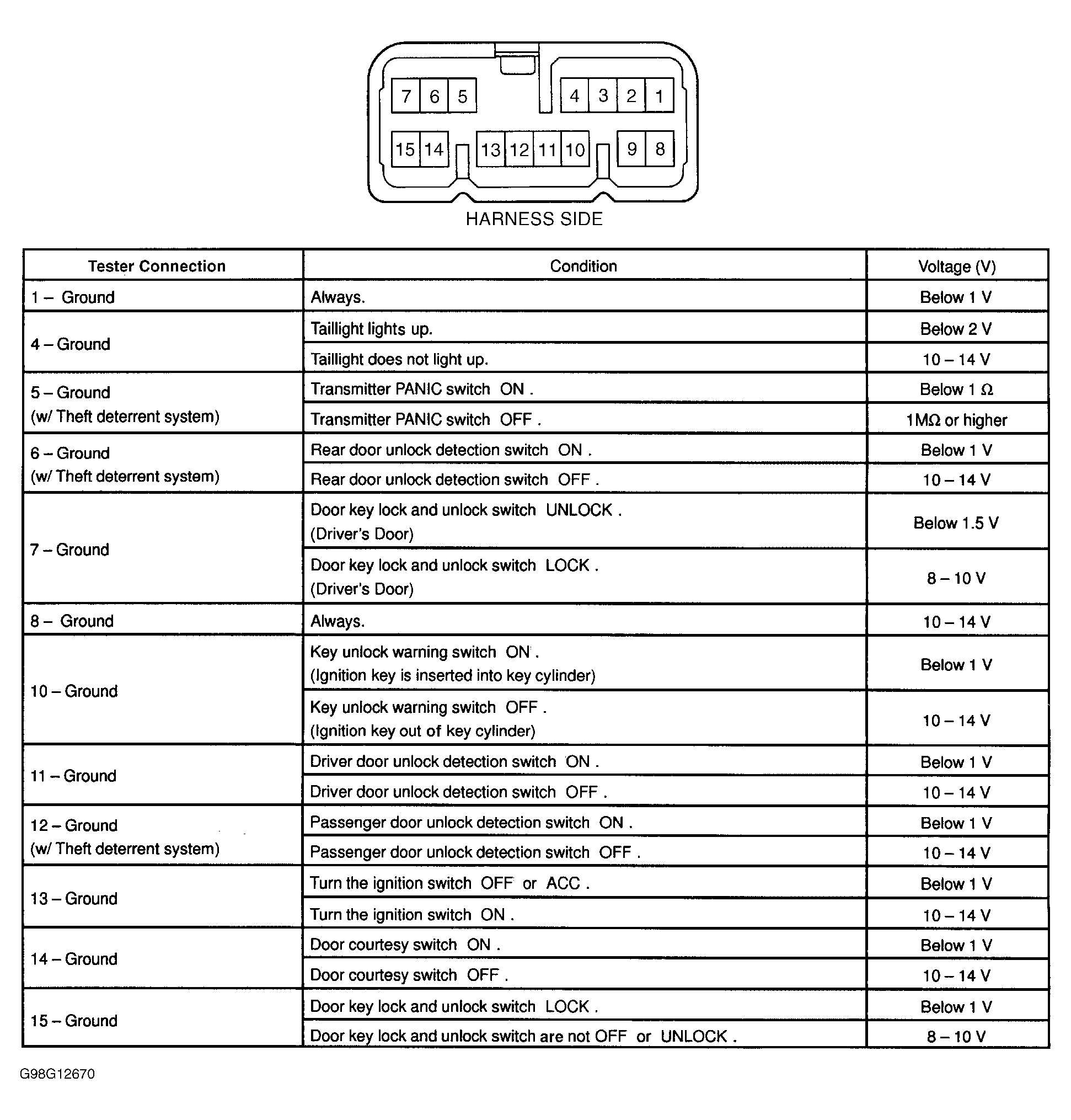

With ignition switch in OFF position, remove wireless door lock ECU from under left side of instrument panel. See Figure. Measure voltage (backprobe) between ground and ECU connector terminal No. 10 (Red/Black wire). See Figure. If battery voltage does not exist, repair Red/Black wire. If battery voltage exists, proceed to next test given under TROUBLE SHOOTING .
