Diagnostic Tests: Notes
NOTE:
Before performing any diagnostic test, refer to SELF-DIAGNOSTICS - INTRODUCTION article for diagnostic system functions and system diagnostic procedures. For component location, see appropriate illustration in THEORY & OPERATION article. To identify circuits and wire colors referenced in testing, see WIRING DIAGRAMS article. References to California emissions apply to vehicles with California emissions, which may be verified by underhood Emission Control label. Vehicles with California emissions may be available in other states.
NOTE:

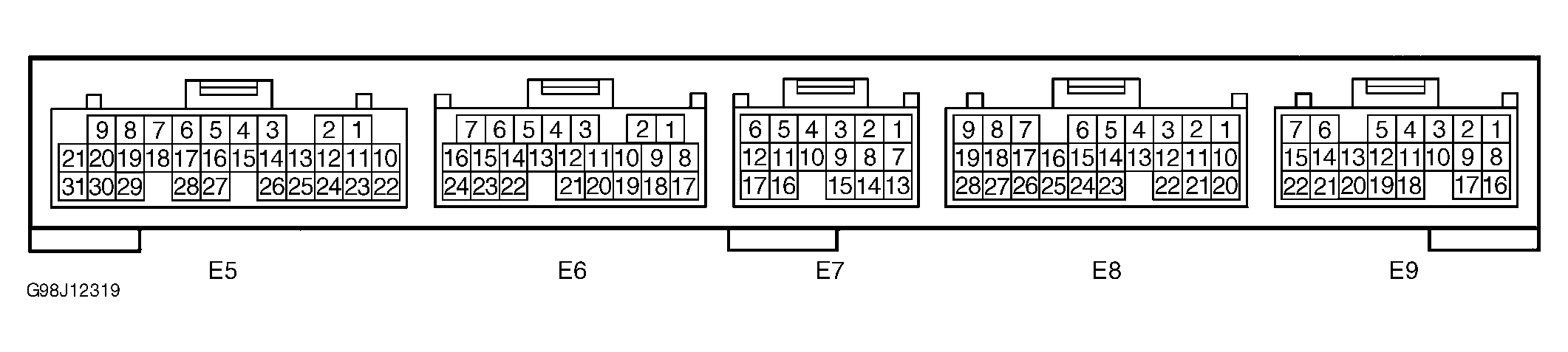

To identify ECM terminals referenced in testing, use illustration. See Fig 1.
