Component Locations
NOTE:
For component locations, see
Fig 1
and
Fig 2
.

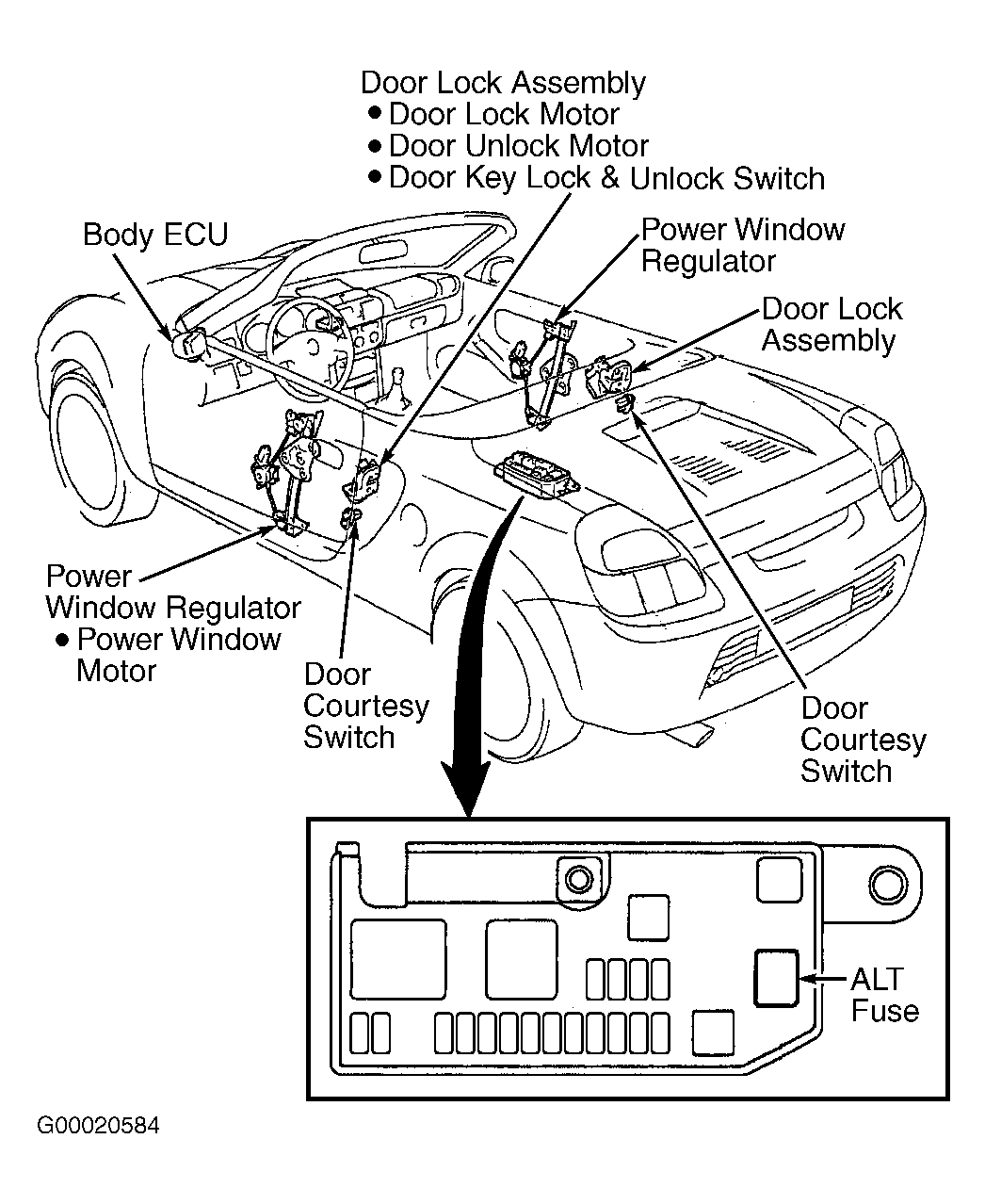

Fig 1: Locating Body Control Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

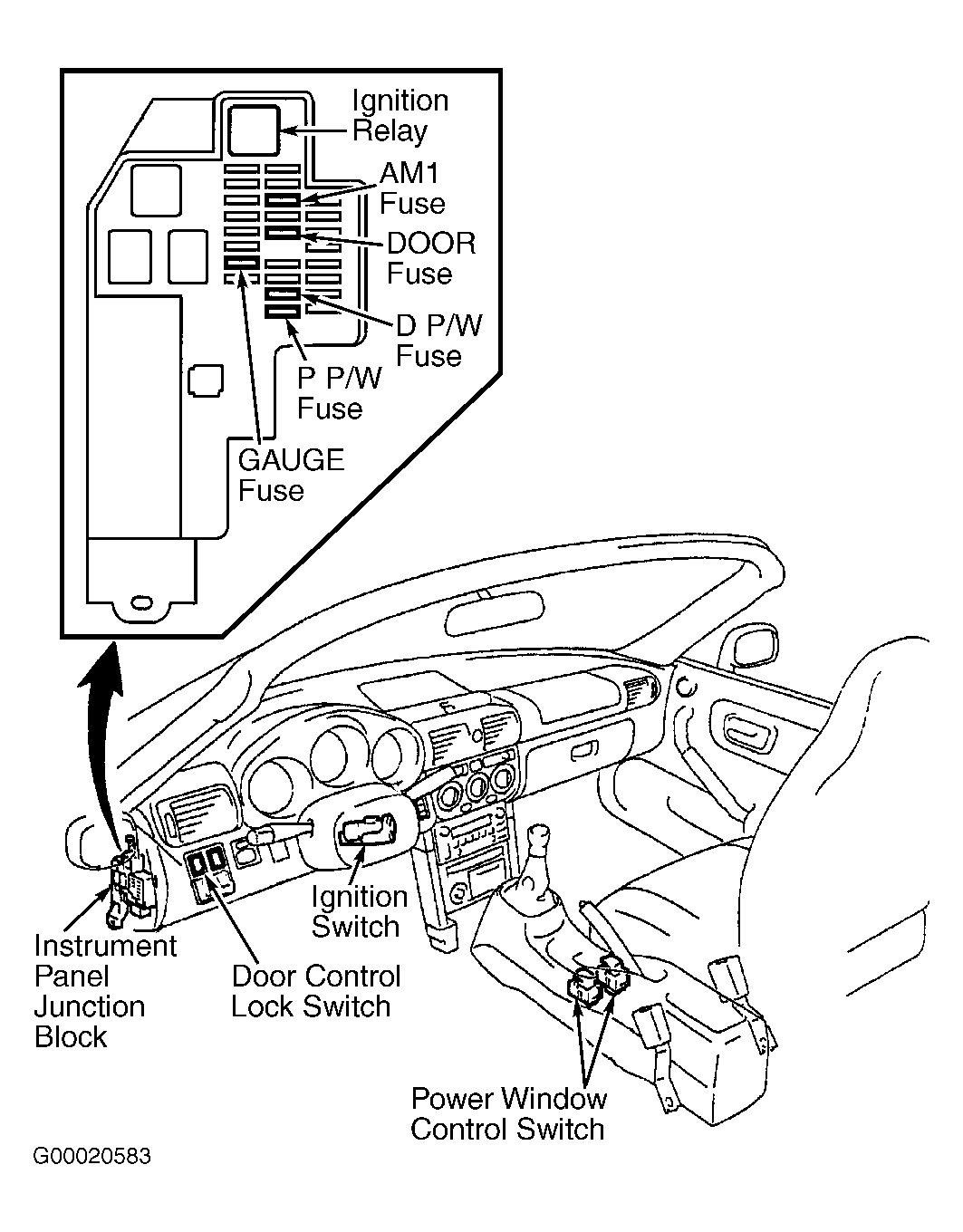

Fig 2: Locating Body Control Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
