Power Window Switch Continuity Test (Driver's Switch): Notes
NOTE:
Avalon incorporates separate ECUs which includes window switches for both driver and passenger front door. Switch continuity testing is not available.

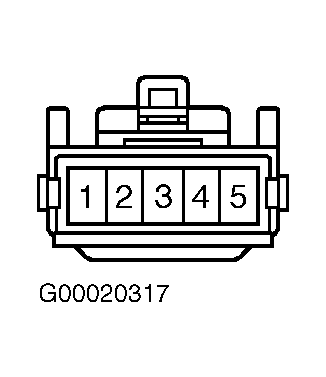

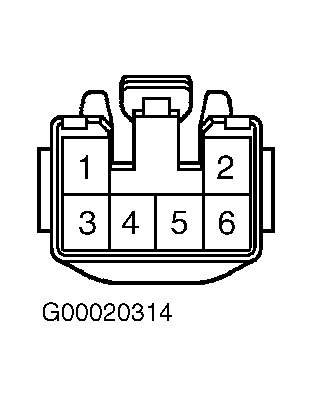

Using an ohmmeter, check continuity between specified terminals with driver's power window switch in specified position. See appropriate DRIVER'S POWER WINDOW SWITCH CONTINUITY TEST table. See Figure-Fig 3 . If continuity does not exist at specified terminals, replace power window switch. See POWER WINDOW SWITCH under REMOVAL & INSTALLATION.

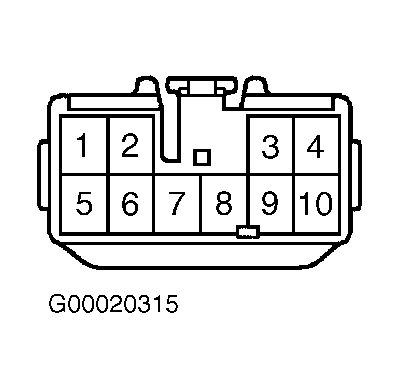

Fig 1: Identifying Driver's Master Power Window Master Switch Harness Connector Terminals (ECHO 2-Door)
