Front Wheel Speed Sensor: Installation

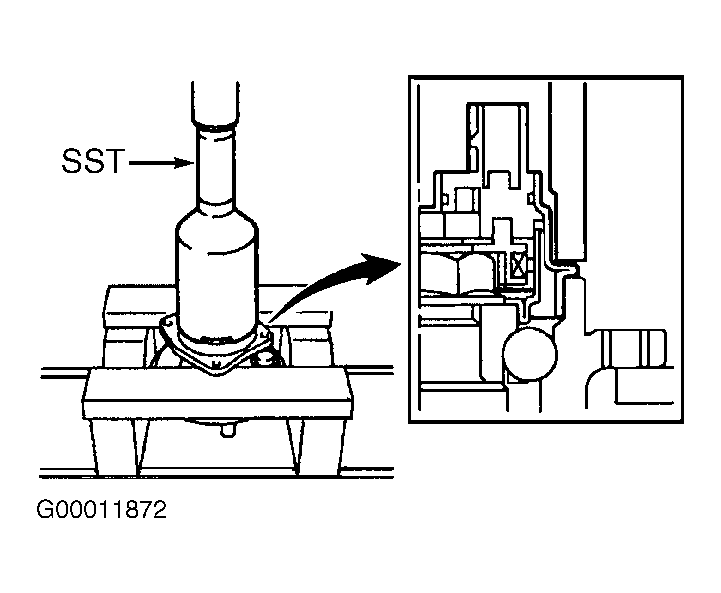

Place speed sensor in axle hub assembly so that sensor sits at bottom of hub when installed. Using a press and Sensor Installer (09214-76011), gently press sensor into axle hub assembly. See Fig 1. Reinstall front axle hub assembly. Reconnect speed sensor connector.
