Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|

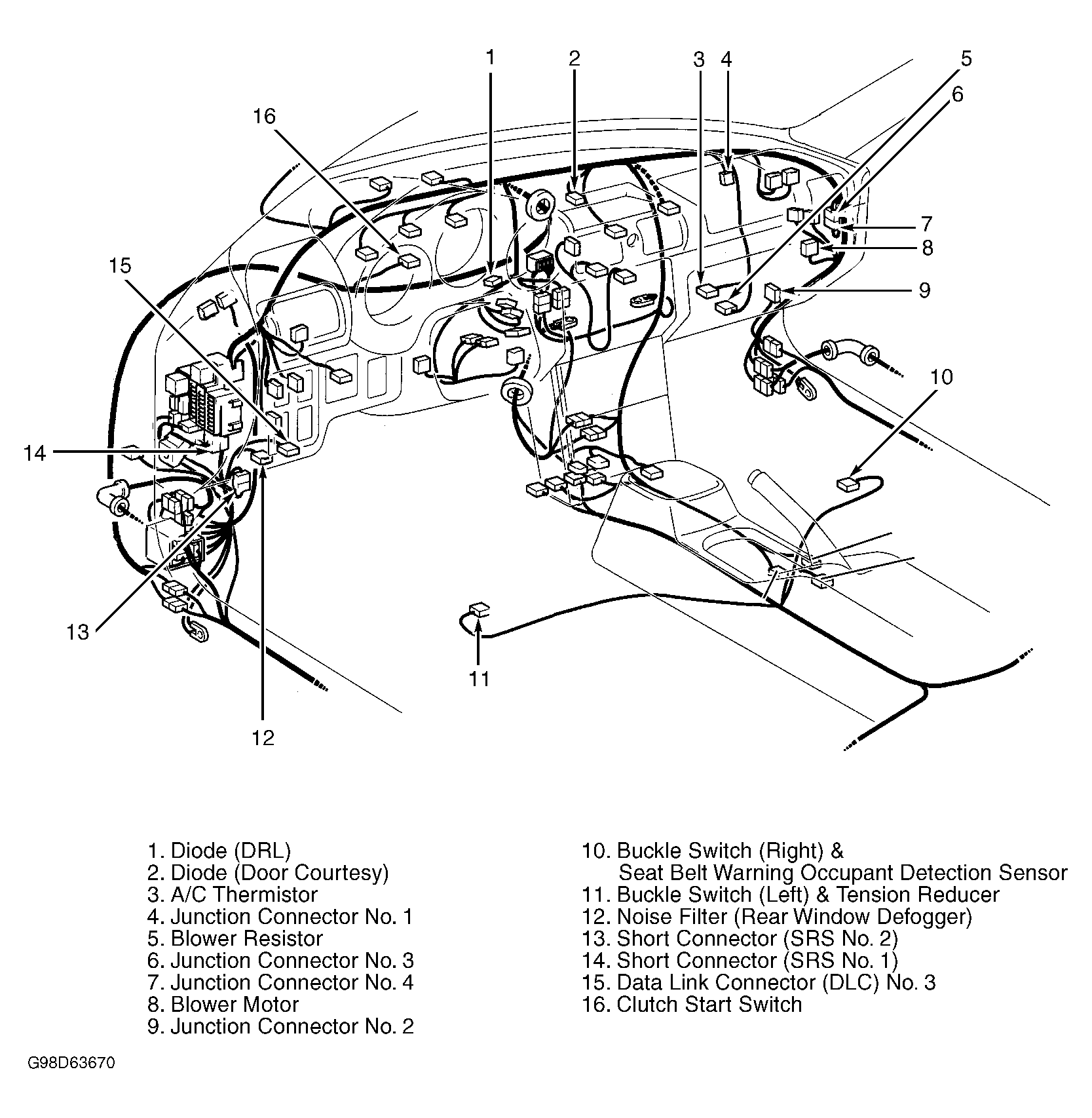

| Diode (Door Courtesy) | Behind upper center of dash. See Figure. |
| Diode (DRL) | Behind left center of dash. See Figure. |
| Engine Room R/B | On left side of firewall, in engine compartment. |
| Fusible Link Block | In left front corner of engine compartment. |

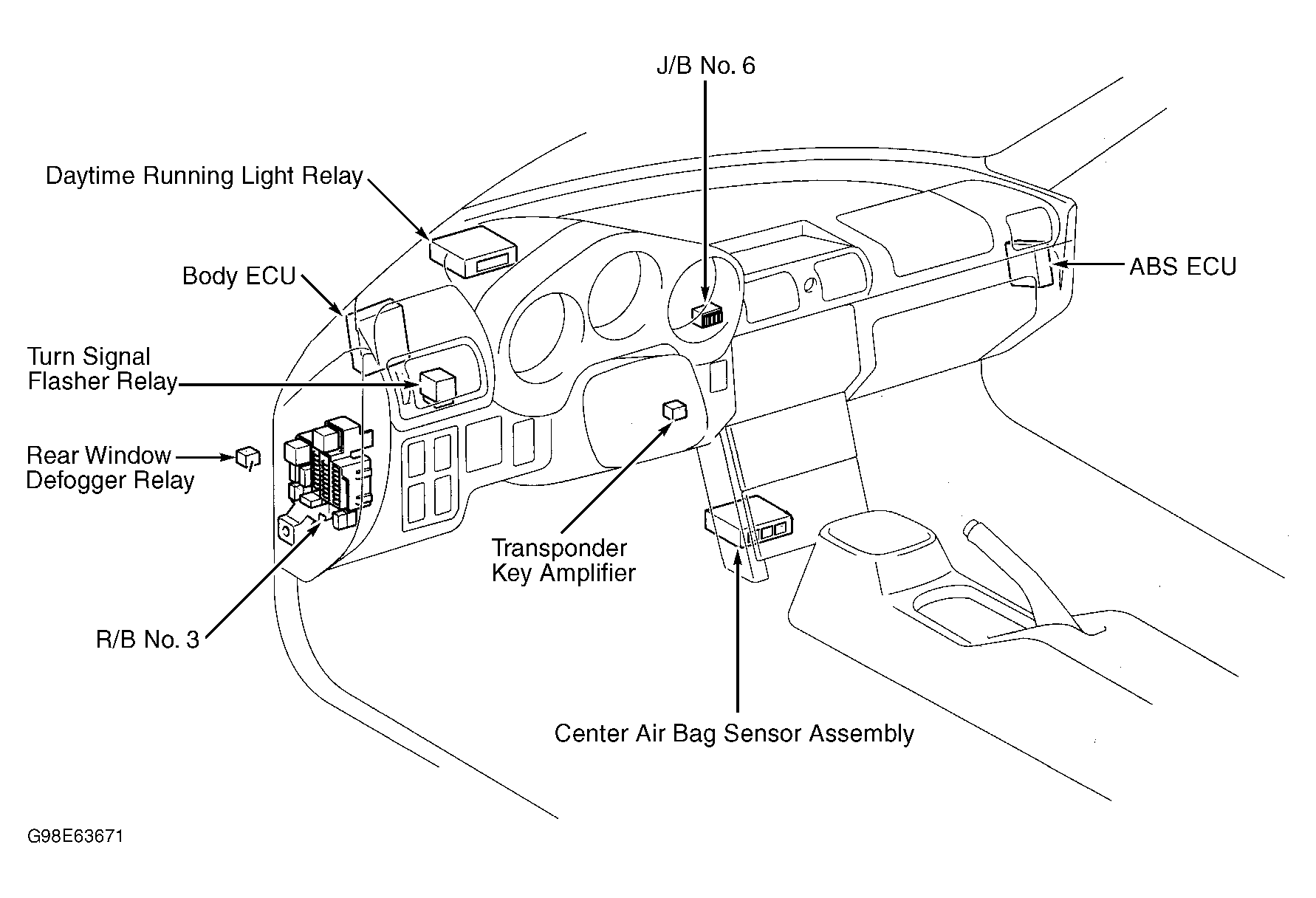

| J/B No. 6 | Behind center of dash. See Figure. |
| R/B No. 3 | Behind left corner of dash. See Figure. |

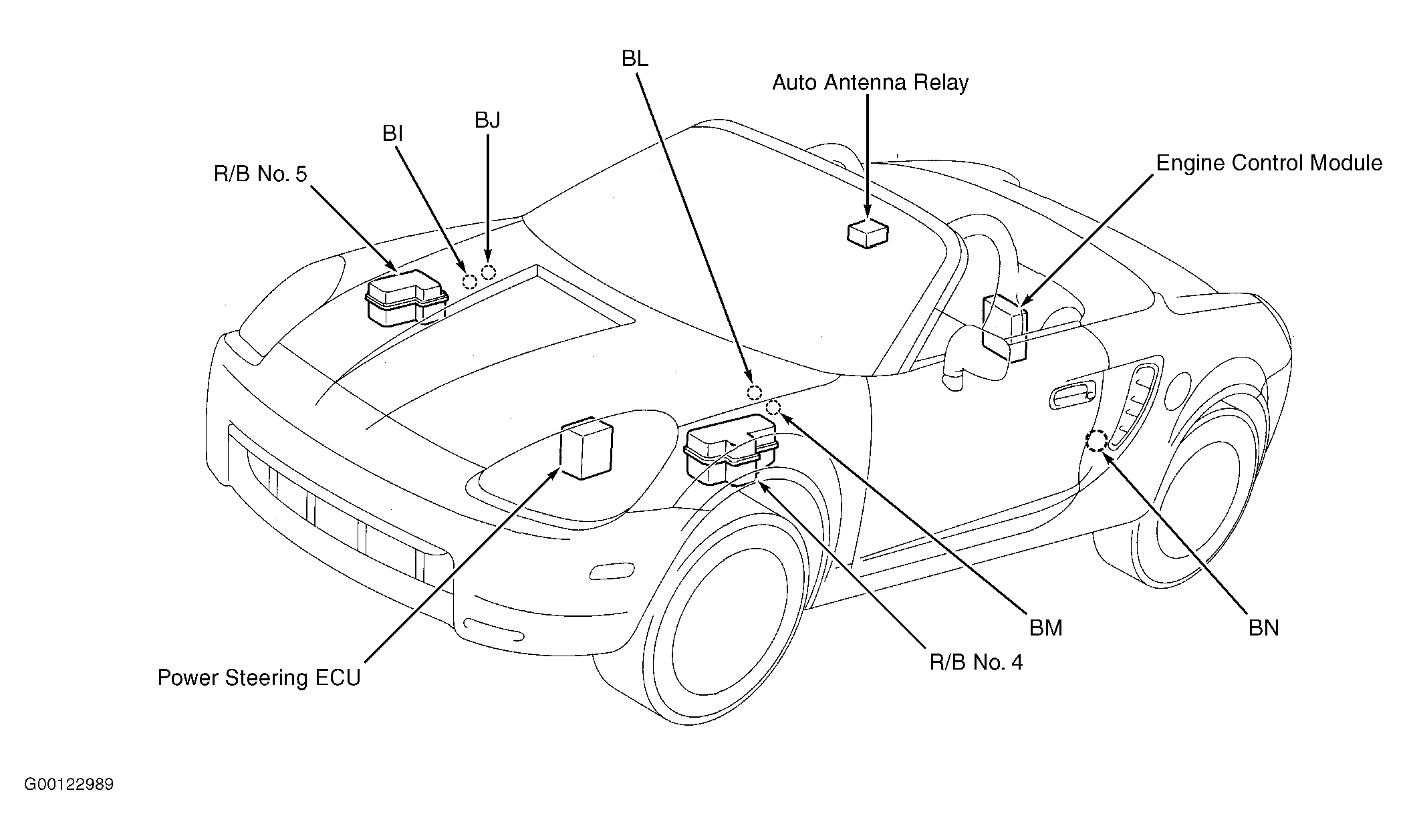

| R/B No. 4 | In front compartment, on left front fenderwell. See Figure. |
| R/B No. 5 | In front compartment, on right front fenderwell. See Figure. |
