Solenoid Relay Section

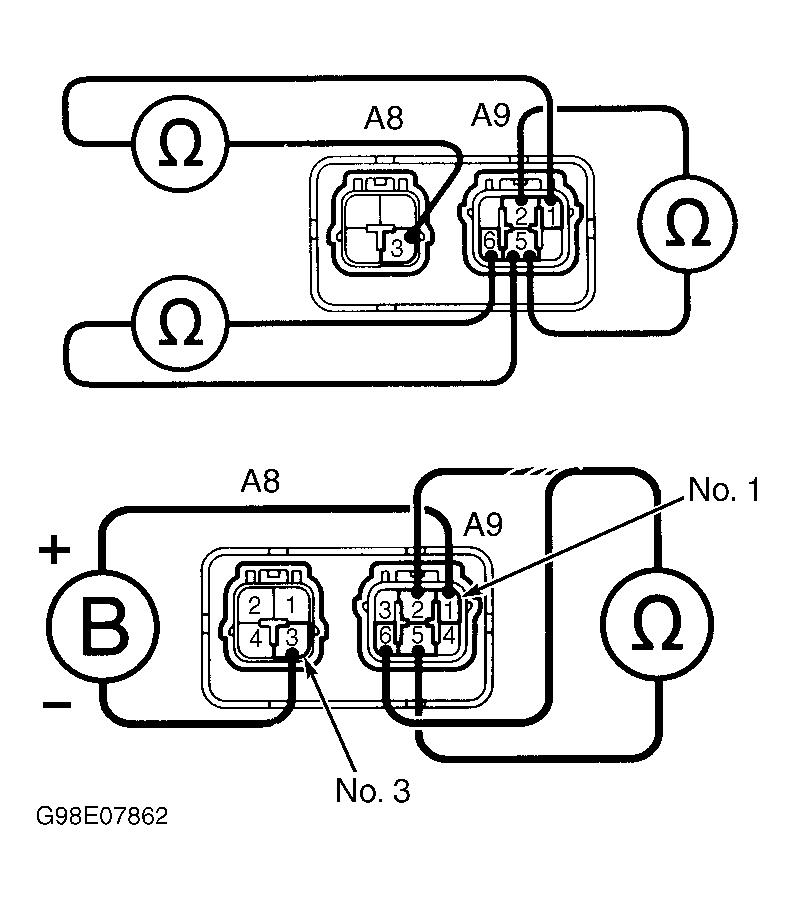

- Check continuity between specified ABS control relay terminals. See Fig 1. Continuity should exist between ABS control relay terminals A9-5 and A9-6. Continuity should not exist between terminals A9-2 and A9-5. Measure resistance between terminals A8-3 and A9-1. Resistance should be 80 ohms. Replace ABS control relay if it does not test as described.
- If relay tests as described, apply battery voltage and ground to ABS control relay terminals A8-3 and A9-1. See Fig 1. Check continuity between terminals A9-2 and A9-5. Continuity should exist. Check continuity between terminals A9-5 and A9-6. Continuity should not exist. Check for continuity between terminals A9-4 and A9-5. If continuity does not exist, reverse test leads and recheck. If continuity still does not exist, or if relay does not test as described, replace ABS control relay.
